Sennheiser XSW 35 Vocal Set Handheld Wireless Microphone System, 614-638 MHz Frequency, 8 Frequency Banks with 12 Channels

Sennheiser XSW 35: Picture 1 thumbnail Sennheiser XSW 35: Picture 2 thumbnail

List Price: $509.00

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 3 Year Extended Warranty + $24.95
  • New Leaf 3 Year Drops & Spills Extra Protection + $39.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $84.95
21% Off

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About Sennheiser XSW 35

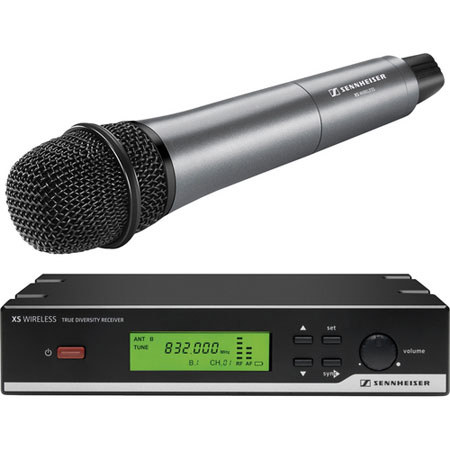

The Sennheiser XSW 35 Vocal Set Handheld Wireless Microphone System delivers Sennheiser sound quality and performance in an affordable, easy to use package aimed at houses of worship, small venue installation, DJs, portable entertainment, small performances and more. The XSW 35 Vocal Set features a true diversity receiver and handheld transmitter fitted with an e835 cardioid, dynamic capsule, well suited for speech and vocal capturing.

The system operates on the 24 MHz UHF frequency band and features 960 tunable frequencies, 8 frequency banks and 12 coordinated channels per bank. True diversity reception greatly minimizes noise, interference and artifacts. Both the transmitter and receiver are capable of remote channel sync and the transmitter will operate for up to 10 hours on 2 AA batteries.

Sennheiser XSW 35 Features

  • True Diversity reception for worry-free operation
  • 24 MHz switching bandwidth
  • 960 available frequencies, tunable in 25 kHz steps
  • 8 frequency banks containing 12 coordinated channels each
  • Powerful scan function identifies available channels within a bank
  • Component synchronization at a distance with new "Remote Channel" sync
  • Up to 10 hours of operation with (2) AA batteries
  • Up to 250 feet of transmission range
  • Illuminated audio mute button on transmitters
  • Balanced (XLR) and unbalanced (1/4") outputs

Sennheiser XSW 35 Specifications

Wideband FM
Receiver principle
True diversity
Sensitivity (at peak deviation)
< 3 uV at 52 dBarms S/N
Frequency range
A: 548-572 MHz, B: 614-638 MHz
Switching bandwidth
24 MHz
Adjacent channel rejection
= 60dB
Intermodulation rejection
Intermodulation rejection = 50dB
960, tunable in 25 kHz steps
Frequency presets
8 frequency banks, each with 12 coordinated factory-preset channels
= 65dB
AF frequency response
60 Hz - 16 kHz
Signal-to-noise ratio
= 103dBa
Total harmonic distortion (THD)
= 1%
Temperature range
32deg. F to 104deg. F (0deg. C to +40deg. C)
Antenna input
2 BNC connectors, 50 Ohm
AF output voltage
XLR (balanced): +14 dBu; 1/4" (unbalanced): +8 dBu
Receiver power supply
12 VDC nom. / 300 mA
13.39 x 13.58 x 3.35 in / 340 x 344 x 85 mm
3.99 lbs / 1.80kg
Mfr #
