| Format |
Interchangeable lens SLR camera |
| Compatible Lenses |
SIGMA SA mount interchangeable lenses |
| Lens Mount |
SIGMA SA bayonet mount |
| Angle of View |
Equivalent to approx. 1.7 times the focal length of the lens (for 35mm cameras) |
| Image Sensor |
FOVEON X3 Direct Image Sensor (CMOS) |
| Image Sensor Size |
20.7®13.8mm (0.8 inch®0.5 inch) |
| Number of Pixels |
Total Pixels 14.45MP(2,688®1,792®3 layers) Effective Pixels 14.06MP(2,652®1,768®3 layers) |
| Aspect Ratio |
3:2 |
| Storage Media |
SD Card/Compatible with SDHC, Multi Media Card |
| Still Image Format |
Exif2.21, DCF2.0 |
| Recording Mode |
Lossless compression RAW data(12-bit), JPEG(High,Medium, Low) |
| Color Mode |
7 types (Standard, Vivid, Neutral, Portrait, Landscape, B&W, Sepia) |
| Number of Pixels (File Size): RAW |
High: 2,640 x 1,760 (Approx.15.4MB) |
| Number of Pixels (File Size): JPEG: High |
Fine 2,640 x 1,760 (Approx.3.3MB) Normal 2,640 x 1,760 (Approx.1.9MB) Basic 2,640 x 1,760 (Approx.1.4MB) |
| No. of Pixels (File Size): JPEG: Medium |
Fine 1,872x1,248 (Approx.1.6MB) Normal 1,872x1,248 (Approx.0.9MB) Basic 1,872x1,248 (Approx.0.7MB) |
| Number of Pixels (File Size): JPEG: Low |
Fine 1,312x880 (Approx.0.8MB) Normal 1,312x880 (Approx.0.5MB) Basic 1,312x880 (Approx.0.3MB) |
| White Balance |
8 types (Auto, Sunlight, Shade, Overcast, Incandescent, Fluorescent, Flash and Custom) |
| Viewfinder Type |
Pentaprism SLR viewfinder |
| Viewfinder Frame Coverage |
98% vertical, 98% horizontal |
| Viewfinder Magnification |
0.9x (50mmF1.4- 8) |
| Eye point |
18mm |
| Diopter Adjustment Range |
-3dpt to +1.5dpt |
| Focusing Screen |
Fixed, all matt screen |
| Mirror |
Quick return |
| Depth of Field Preview |
Depth of field preview button |
| Auto Focus Type |
TTL phase difference detection system |
| AF Point |
5-points (center AF point:cross type) |
| AF Operating Range |
EV 0 to +18 (ISO100) |
| Focus Mode |
Single AF, Continuous AF (with AF motion prediction function), Manual |
| AF Point Selection |
Automatic Selection, Manual Selection |
| Active AF point indicator |
Superimposed in viewfinder |
| AF Assist Light |
White Color AF Assist Light |
| Focus Lock |
Shutter Release Halfway-Down position |
| Metering Systems |
77 segment Evaluative Metering, Spot Metering, Center Area Metering, Center-Weighted Average Metering |
| Metering Range |
EV 1 to 20 (50mm F1.4:ISO100) |
| Exposure Control System |
(P) Program AE (Program Shift is possible), (S) Shutter Speed Priority AE, (A) Aperture Priority AE, (M) Manual |
| ISO Sensitivity |
AUTO(ISO 100-200) : With Flash (ISO 100-400) Equivalent to ISO100, 200, 400, 800 and 1600 (ISO50 and ISO3200 with Extended Mode) |
| Exposure Compensation |
±3EV (in 1/3 stop increments) |
| AE Lock |
AE lock button is pressed or shutter release button is pressed halfway |
| Auto Bracketing |
With 3 frames bracketing : 1/3EV Stops Up to ±3EV With 5 frames bracketing : 1/3EV Stops Up to ±1.7EV |
| Shutter Type |
Electronically Controlled Focal Plane Shutter |
| Shutter Speed |
1/4000 - 30 sec., Bulb (up to 30 sec. With Extended Mode: 2 min.) |
| External Flash Sync. |
X-Sync(1/180) |
| Flash Type |
Manual Pop-up Built-in flash |
| Built-in Flash Guide Number |
GN11 |
| Built-in Flash Coverage Range |
17mm lens angle covered |
| Flash Metering System |
S-TTL Auto Flash |
| Flash Compensation |
±3EV(1/3 stop increments) |
| Compatible Flashguns |
EF-530DG SUPER, EF-530DG ST, EM-140 DG |
| Sync Terminal |
Available |
| Connectivity |
Hot shoe (contact X synchronization at 1/180 sec. or less, with dedicated flash linking contact) |
| Top LCD |
Shutter speed display, Aperture value display, Exposure meter display, Shooting capacity display, Exposure mode display, Battery status display, Remote controller mode display, Exposure compensation value display |
| Drive Modes |
[1]Single, [2]Continuous, [3]Self-timer (2 sec./10 sec.), [4]Mirror Lock-up |

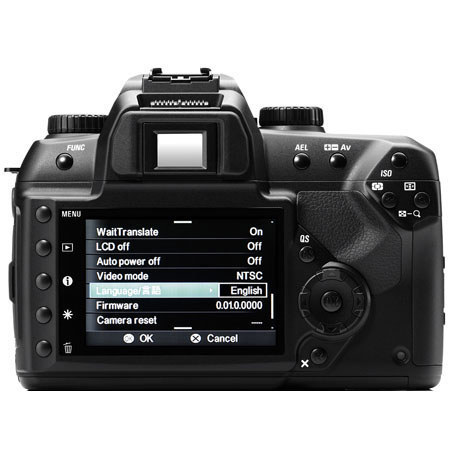

| LCD Monitor Type |
TFT Color LCD Monitor |
| Monitor Size |
3.0" |
| LCD Pixels |
Approx. 460,000 |
| Coverage |
100% |
| Reviewing Images |
Single frame display, Multi display [9 frames], Zoom, Slide Show |
| Highlight Display |
Available |
| Histogram |
Available |
| LCD Monitor Language |
English/Japanese/German/French/Spanish/Italian/Chinese (Simplified)/ Korean/ Russian |
| Interfaces |
USB (USB2.0), Video Out (NTSC/PAL) |
| Battery |
Li-ion Battery Pack BP-21, Battery Charger BC-21, AC adapter SAC-4(optional) |
| Operating Temperature |
0 - +40°C |
| Operating Hunidity Range |
85% or lower |
| Dimensions |
144mm/5.7"(W) X 107.3mm/4.2"(H) X 80.5mm/3.2"(D) |
| Weight |
680g/24oz (without batteries) |
