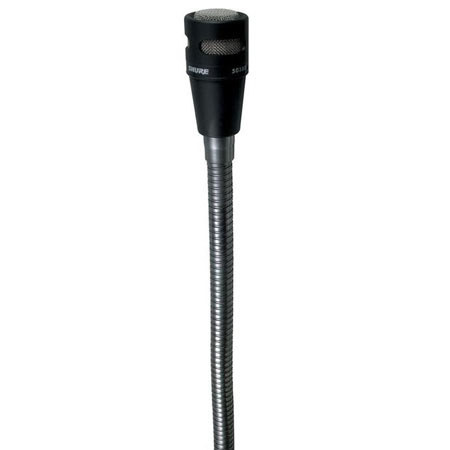

Shure 503BG Cardioid Gooseneck Dynamic Computer/Voice Recognition Microphone, 100 to 7000 Hz Frequency Response

Shure

About Shure 503BG

Developed for computer voice recognition applications, the Shure 503BG microphone offers excellent voice fidelity while reducing background noise. Also use the 503BG in other close-talking applications such as paging and talkback. The 503BG features a low-impedance, moving coil type transducer with an integral humbucking coil and an attached two-conductor shielded cable with a built-in strain relief. It produces a frequency response with an essentially constant output voltage over the voice spectrum when used close to the sound source.

The 503BG's case is aluminum with a black enamel finish. It mounts to a gooseneck, a fixed pipe or a microphone stand using a standard 5/8"-27 thread.

Shure 503BG Features

  • Frequency response tailored for voice communications
  • Directional microphone element
  • Minimal pick-up of background noise due to close-talk design
  • Hum-bucking coil reduces induced noise from computer displays
  • Attaches to flexible gooseneck arm (not included)
  • Two conductor, shielded, bare-ended (no connector), straight cable
  • Does not require DC power for operation

Shure 503BG Specifications

Transducer
(Close Talking) Dynamic
Polar Pattern
Cardioid
Frequency Response
100 to 7,000 Hz
Impedance
170 ohms actual
Output Level (Open Circuit Voltage)
-61.5 dBV/Pa (.84mV)
-41.5 dB (8.4 mV)
Hum Pickup
Maximum 15 dB equivalent SPL in m0e field
Cable
1.2 m (4 ft) two-conductor shielded
Case
Aluminum with black enamel finish; stainless steel screen
Dimensions (L x Diameter)
Microphone: 2.63 x 1.375" (67 x 34.9mm)
Weight
4.5 oz. (128 g)
