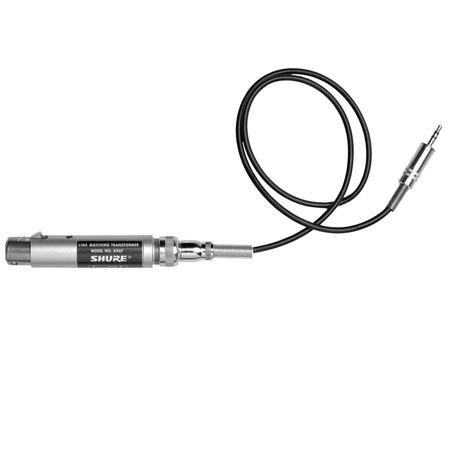

Shure A96F Line Matching Transformer for Camcorder, XLR Female, 3.5mm Jack

Shure

List Price: $68.00

Free 3 Day Shipping

See all shipping options

In Stock Online - Usually ships within 1-2 Days learn more

Our Price

$61.44
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Shure A96F

The Shure A96F transformer connects microphones with an XLR-type connector to the 3.5 mm inputs found on camcorders and other recording devices. It increases the signal level from the microphone, provides a balanced input and prevents distortion due to the DC bias voltage typically found in camcorder microphone inputs.

The A96F can be modified for microphones rated at 150 ohm. This modification is only necessary if the output level from the A96F is insufficient for your recording device. It features a female XLR connector on the microphone end and 0.6 m (2 ft) cable with 3.5 mm phono plug on the recorder end.

Shure A96F Specifications

Low Impedance
150 ohms
Medium impedance
2,500 ohms
DC Resistance: Low impedance
150 ohms winding: 28 ohms
DC Resistance: Medium impedance
Open Circuit
Voltage Ratio
Low impedance to medium impedance: +12 dB
Phono plug
3.5 mm
Case
Full magnetic shield, steel with gray enamel finish
Frequency Response
20 to 20,000 Hz ± 2 dB
Dimensions (Diameter x L)
3/4 x 30-1/2 in (19 x 88.9mm)
