About the Shure FP1-G5

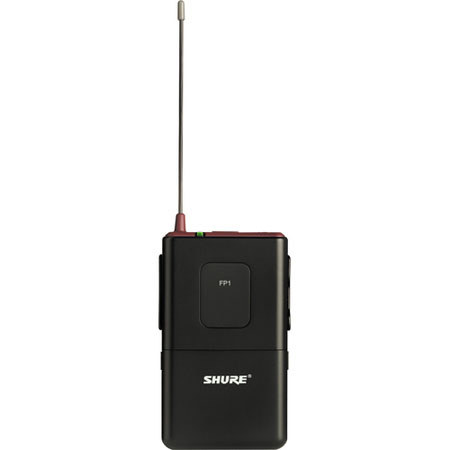

The Shure FP1-G5 Wireless Bodypack Transmitter (G5 / 494 - 518 MHz) provides professional, portable wireless operation in the 24MHz band, is easy to operate and affordable. The transmitter features a TA4 (4-pin) input that is compatible with Shure lavalier microphones. Its input gain control provides that right amount of input level and infrared sync provides quick and easy channel syncing between the FP1 bodypack and FP5 receiver (sold separately). The FP1 bodypack is ruggedly built and powered on a pair of AA batteries.

Shure FP1-G5 Features

  • Automatic transmitter setup that instantly syncs the transmitter to the receiver frequency
  • LED indicator for control lockout, IR RF sync and low battery
  • Audio input gain for adjustment of audio level
  • 4-Pin microphone input jack for use with lavaliers or headset microphones with TA4F connectors

Shure FP1-G5 Specifications

Frequency Range G5 / 494 - 518 MHz
Gain Adjustment Range -10 to +20 dBV
Input Impedance 1 MOhms
RF Output Power 10 to 30 mW
Pin Assignments TA4M 1: ground (cable shield)
2: + 5 V Bias
3: audio
4: Tied through active load to ground (On instrument adapter cable, pin 4 floats)
Housing Molded polycarbonate case
Power Requirements 2 AA batteries, 1.5 V
Battery Life Up to 12 hours (alkaline)
Dimensions (H x W x D) 108 mm x 64 mm x 19 mm / 4.25 x 2.51 x 0.74"
Weight 81 g (2.85 oz.) without batteries
