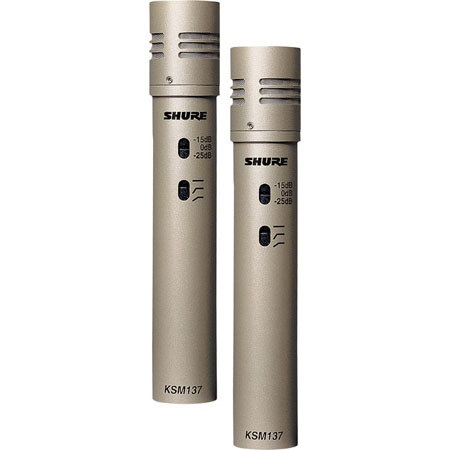

Shure KSM137/SL Stereo Cardioid Condenser Studio Microphone, Pair, 20 Hz-20 kHz Frequency Response

Shure
SKU: SHKSM137SS MFR: KSM137/SL STEREO

List Price: $832.00

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 3 Year Extended Warranty + $39.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $55.95
  • New Leaf 3 Year Drops & Spills Extra Protection + $59.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $154.95
20% Off

Our Price

$665.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Shure KSM137/SL STEREO

The Shure KSM137/SL Stereo is a cardioid condenser studio microphone designed for instrument recording and sound reinforcement. The microphone offers a wide 20 Hz-20 kHz frequency response making it a flexible microphone for a variety of applications. The KSM137/SL features a cardioid element and permanently biased transducer design resulting in clean, accurate signal reproduction and frequency response. The transformer-less, class-A output circuitry provides a noise free output signal path while maintaining high gain levels. The tight cardioid pattern is effective in attenuating off-axis signals due to room ambiance, instruments, monitor noise etc.

There is a 3-position low frequency roll-off switch, eliminating low frequency rumble noise and counteracts proximity effect. The KSM137/SL handles high sound pressure levels and features a 3-position Pad switch providing attenuation at 0 dB, 15 dB and 25 dB. This allows confident miking of instruments high in transient response such as drums, percussion and brass. The microphone is suitable for piano, strings, guitar and woodwind as well.

Shure KSM137/SL STEREO Features

  • KSM137 Pair: This package provides dual KSM137 microphones for stereo capturing in recording and live sound reinforcement applications
  • Cardioid Pattern: The cardioid polar pattern is effective in attenuating off-axis signal due to room ambiance, instruments, monitor noise etc
  • Class-A Transformer-Less Circuitry: The transformer-less, class-A output circuitry provides a noise free output signal path while maintaining high gain levels
  • 3-Position Low Frequency Roll-Off Switch: The KSM 137 SL provides flexible low frequency attenuation, eliminating low frequency noise and rumble
  • 3-Position Pad Switch: The 0 dB/15 dB/25 dB Pad switch adds greater SPL handling allowing the microphone to withstand high audio levels without distortion
  • Wide Frequency Response: The microphone offers a wide 20 Hz-20 kHz frequency response making it a flexible microphone for a variety of applications

Shure KSM137/SL STEREO Specifications

Transducer
Permanently Biased Condenser
Polar Pattern
Cardioid
Frequency Response
20-20,000 Hz
Dynamic Range (Typical)
5000 ohm: 133 (136)dB
2500 ohm: 128 (130)dB
1000 ohm: 122 (125)dB
Signal-to-Noise Ratio
75dB S/N ratio is the difference between 94dB SPL and equivalent SPL of self-noise A-weighted
Maximum Input Sound Level
5000 ohm: 150 (165)dB
2500 ohm: 144 (159)dB
1000 ohm: 139 (154)dB
Power Requirements
+48VDC Phantom Power
Output Impedance
150 ohms (actual)
Output Connectors
Balanced XLR
Pad
0dB or 15dB Pad switch
Low Frequency Roll-Off
No
Dimensions (L x Diameter)
6.325" x 0.950" / 160.66 x 24.13 mm
Weight
6.9 oz / 195.61 grams
