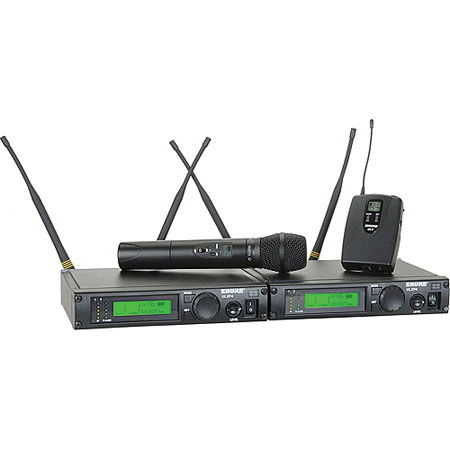

Shure ULXP124/87-G3 Wireless Dual Mixed Microphone System, 2 ULXP4 Diversity Receiver, ULX2 Handheld Transmitter, ULX1 Bodypack Transmitter

SKU: SHLXP12487G3 MFR: ULXP124/87-G3

Original Price: $1,788.00 Kit Discount: -$19.01

Free Shipping

See all shipping options

In Stock Online - Usually ships within 1-2 Days learn more

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 3 Year Extended Warranty + $69.95
  • New Leaf 3 Year Drops & Spills Extra Protection + $94.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $249.95
Kit Savings

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About Shure ULXP124/87-G3

This Shure ULXP124/87-G3 Bundle comes with: and Shipping is free! .

The Shure ULX Professional Series ULXP124/87-G3 wireless microphone systems provide professional wireless microphone solutions for broadcast, performances, conferences, houses of worship, schools and businesses. This combo-system includes two ULXP4 diversity receivers, a ULX1 body-pack transmitter and ULX2 handheld transmitter with a Shure SM87 supercardioid head.

The ULXP4 receiver operates on UHF frequencies, offering over 1400 user selectable frequencies to choose from. All the standard features of the ULXS4 receiver are present and in addition the ULXP4 is equipped with features that meet the demands of professionals. Additional features include TV channel display, frequency and volume locks, SCAN indicator, squelch indicator and receiving antenna indicators. The dual antenna design represents diversity technology, which provides optimum resistance against RF interference and drop-out. Dual internal receivers are set to the same frequency and are constantly vying for the strongest reception. The receiver features a balanced XLR output that is switchable between mic and line level signal as well as an unbalanced 1/4" phone output. A multifunction LCD provides group and channel information, transmitter battery life and more. Two 5-segment LEDs provide audio and RF metering.

The ULX1 body-pack transmitter is lightweight and portable, featuring a belt-clip for use with camera and guitar straps, belts, waistbands, etc. The transmitter also features over 1400 user selectable UHF frequencies and a comprehensive LCD displays group and channel information and more. An input attenuation switch allows 0 dB and 20 dB output. Adjustable audio gain control is provided and the transmitter boasts 8-9 hour battery life on a single 9 V battery.

The ULX-2 handheld transmitter features the Shure SM87 supercardioid capsule. Like the body-pack transmitter, the ULX-2 provides 1400 user selectable frequencies and a comprehensive LCD display provides channel and frequency information, battery life and more. The supercardioid polar pattern provides a narrow pick-up area, which is effective against off-axis noise, causing feedback and unwanted ambient noise. The ULX-2 is powered with a standard 9 V alkaline battery (included).

Shure ULXP124/87-G3 Features

  • Adorama Valuable Bundle. Kit Includes.
  • Shure ULXP4-G3 Single Professional Wireless Receiver with PS41US Power Supply, Four 1/2 Wave Antennas and Rack Mounting Hardware, G3 (470-505 MHz), Shure USA Warranty.
  • Shure ULX2 Handheld Transmitter, SM87A Microphone, 9V Battery, Shure USA Warranty.
  • Shure ULX1-G3 Bodypack Transmitter (G3), 9V Battery, Shure USA Warranty.

Shure ULXP124/87-G3 Specifications

Type of System
Rack/Table Top Mountable UHF Diversity Wireless Handheld System
RF Carrier Frequency Range
470.000 to 865.000 MHz
Approx. Working Range
300 Feet (100m)
Overall Frequency Response
25 Hz - 15 kHz, (±2 dB)
ULX1 (input): 1 Megaohm
ULXS4, ULXP4 (output): 50ohms at line level; 2000 ohms at mic level
±38 kHz deviation compressor-expander system with pre and de-emphasis
No. Of Channels
Over 1400 User Selectable Frequencies (Frequency G3 / 470 - 505 MHz)
Dynamic Range
>100 dB, A-weighted
RF Sensitivity
1.26 uV for 12 dB SINAD (typical)
Image Rejection
80 dB typical
Spurious Rejection
75 dB typical
Ultimate Quieting
Reference ±38 kHz deviation: > 105 dB, A-weighted
System Distortion (reference ±38 kHz deviation, 1 kHz modulation)
0.3% total harmonic distortion, typical
No. Of Simultaneous Systems
Up to 20
Operating Temperature
-4 to 120deg. F (-20 to 49deg. C)
Type of Receiver
ULXP4 Professional Rack/Table-Top Mount Receiver
Receiver: Type of Outputs
8 to 9 hours (with 9V alkaline battery)
Receiver: Headphone Monitoring
Receiver: Power Requirements
14 - 18VDC (negative ground), 550mA
External Power Supply - PS40, Included
Receiver: Display
Yes, Power On Indicator, Diversity Signal Indicators and Audio Peak Indicator, Channel, Group, Transmitter Low Battery Warning.
Receiver: Mounting Options
Rack / Table Top Mount 1/2 Rack Space
Receiver: Output Level
XLR connector (into 600 ohm load): +3.9 dBV (line), -17 dBV (mic)
1/4 inch connector (into 3000 ohm load): -2 dBV
(±38 kHz deviation, 1 kHz tone)
Receiver: Antenna Type
Body-pack Transmitter: Input Connector
TAF4 4-Pin Mini Connector
Body-pack Transmitter: Battery Life
8 to 9 hours (with 9V alkaline battery)
Body-pack Transmitter: Mute Switch
Body-pack Transmitter: Level Control
Yes, 25dB Gain Adjustment Range
Body-pack Transmitter: Polarity
Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low impedance output) and the tip of the high impedance 1/4-inch output
Body-pack Transmitter: Antenna Type
Removable 1/2 Wave
Body-pack Transmitter: Display
Power On/Off Indicator, 3-Segment Low Battery Indicator, Channel and Group, Peak Icon (Input Overload Warning)
Handheld Transmitter: Input Connector
Microphone Element is Attached (Screwed On) to Transmitter
Handheld Transmitter: Microphone Type
SM87 Condenser Microphone Head
Handheld Transmitter: Polar Pattern
Handheld Transmitter: Battery Life
8 to 9 hours (with 9V alkaline battery)
Handheld Transmitter: Mute Switch
Handheld Transmitter: Level Control
Yes, 25dB Gain Adjustment Range
Handheld Transmitter: Antenna Type
Receiver: 1.72 x 8.56 x 6.88" (43 x 217 x 174mm)
Body-pack UHF Transmitter: 3.86 x 2.68 x 1.10" (98 x 68 x 27.94mm)
Handheld UHF Transmitter (L x Dia): 8.8 x 2" (223.5 x 51mm)
Receiver: 2 lb, 7 oz (1.10 kg)
Body-pack UHF Transmitter: 2.8 oz. (79 g) without battery
Handheld UHF Transmitter: 9.1 oz. (258 g)
