Shure MX395B/O Low Profile Boundary Microphone, Omnidirectional, 3-pin, XLR, Black

Shure
SKU: SHMX395BO MFR: MX395B/O

List Price: $180.00

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 3 Year Extended Warranty + $14.95
  • New Leaf 3 Year Drops & Spills Extra Protection + $32.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $75.95

Our Price

$163.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Shure MX395B/O

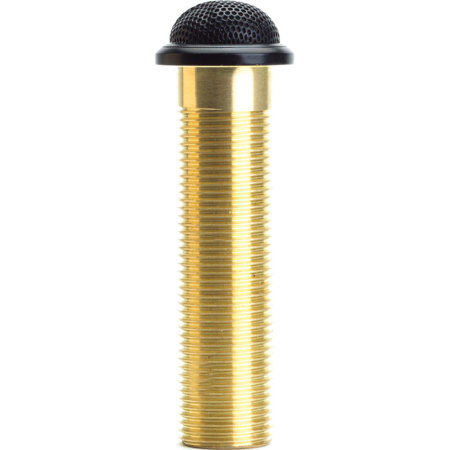

The Shure MX395B/O Microflex Boundary Microphone, Omnidirectional (Black) is a low profile boundary microphone designed for concealed capturing of conversations, speech and ambient audio while mounted in a flat surface, such as a desktop, ceiling or podium. The MX395B/O measures just 1.25" (3.8 cm) in diameter, making it an ideal solution for video and broadcast operation.

The microphone features an optimized frequency response and is available in a bi-directional, cardioid or omnidirectional polar patterns. Additional features include logic-controlled mute and a bi-colored LED ring for indicating open or mute status. The MX395B/O is an ideal choice for speech capturing in meetings, executive boardrooms, conferences, news broadcasts and more.

Shure MX395B/O Features

  • Miniature Size: The MX395 measures just 1.25" (3.8 cm) in diameter, making it an ideal solution for video and broadcast operation
  • Omnidirectional: The omnidirectional polar pattern provides a uniform pick up at the entire perimeter of the microphone
  • Bi-color LED Ring: Additional features include logic-controlled mute and a bi-colored LED ring for indicating open or mute status

Shure MX395B/O Specifications

Frequency Response
50 to 17000 Hz
Polar Pattern
Omnidirectional
Output Impedance
EIA Rated at 150 Ohms (170 Ohms actual)
Output Configuration
Active balanced
Sensitivity
-28 dBV/Pa (42 mV)
Maximum SPL
Omnidirectional: 114 dB (1 kHz at 1% THD, 1 kilohms load)
Equivalent output Noise (A-weighted)
Omnidirectional: 21 dB SPL
Signal-to-Noise Ratio
Omnidirectional: 73 dB (referenced at 94 dB SPL at 1 kHz)
Dynamic Range (1 kilohm load at 1 kHz)
Omnidirectional: 93 dB
Common Mode Rejection (10 Hz - 100 kHz)
45 dB minimum
Preamplifier output Clipping level
-8 dBV (0.4 V)
Polarity
3-Pin XLR: Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector
Output Connectors
3-pin XLR
Pad
No
Low Frequency Roll-Off
No
Logic Connections
LED IN: Active low (=1.0V), TTL compatible. Absolute maximum voltage: -0.7V to 50V
Operating Temperature
-18 to 57 deg. C (0 to 135 deg. F)
Storage Temperature
-29 to 74 deg. C (-20 to 165 deg. F)
Relative Humidity
0 to 95%
Power Requirements
11 - 52 Vdc phantom, 2.0 mA
Dimensions (Dia)
1.25-inch (3.8 cm)
Weight
0.136 kg (0.30 lbs.)
