Shure ULXP124/BETA87C-X1 Wireless Microphone System, Includes 2 ULXP4 Receivers, ULX2 Transmitter, Beta 87C Capsule, ULX1 Transmitter, X1/944-952 MHz


List Price: $2,211.00

Free Shipping

See all shipping options

In Stock Online - Usually ships within 1-2 Days learn more

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 3 Year Extended Warranty + $69.95
  • New Leaf 3 Year Drops & Spills Extra Protection + $94.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $249.95
20% Off

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About Shure ULXP124/BETA87C-X1

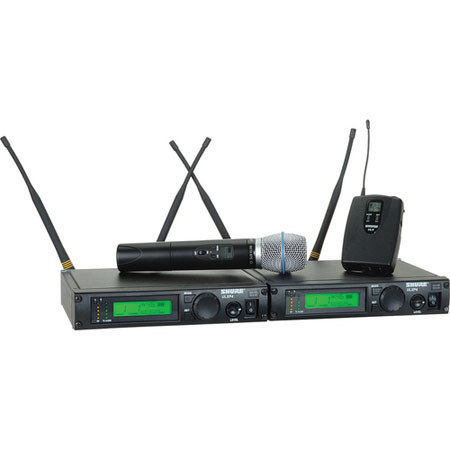

The Shure ULXP124/BETA87C-X1 Wireless Dual Mixed Microphone System provides professional wireless microphone solutions for broadcast, performances, conferences, houses of worship, schools and businesses. This combo-system includes two ULXP4 diversity receivers, a ULX1 bodypack transmitter and ULX2 handheld transmitter with a Shure Beta 87 cardioid head.

The ULXP4 receiver operates on UHF frequencies, offering over 1400 user selectable frequencies to choose from. All the standard features of the ULXS4 receiver are present and in addition the ULXP4 is equipped with features that meet the demands of professionals. Additional features include TV channel display, frequency and volume locks, SCAN indicator, squelch indicator and receiving antenna indicators. The dual antenna design represents diversity technology, which provides optimum resistance against RF interference and drop-out. Dual internal receivers are set to the same frequency and are constantly vying for the strongest reception. The receiver features a balanced XLR output that is switchable between mic and line level signal as well as an unbalanced 1/4" phone output. A multifunction LCD provides group and channel information, transmitter battery life and more. Two 5-segment LEDs provide audio and RF metering.

The ULX1 bodypack transmitter is light weight and portable featuring a belt-clip for use with camera and guitar straps, belts, waistbands, etc. The transmitter also features over 1400 user selectable UHF frequencies and a comprehensive LCD displays group and channel information and more. An input attenuation switch allows 0 dB and 20 dB output. Adjustable audio gain control is provided and the transmitter boasts 8-9 hour battery life on a single 9 V battery.

The ULX-2 handheld transmitter features the Shure Beta 87 cardioid capsule. Like the body-pack transmitter, the ULX-2 provides 1400 user selectable frequencies and a comprehensive LCD display provides channel and frequency information, battery life and more. The Shure Beta series microphones provide higher input levels than the SM series. The supercardioid polar pattern is effective against off-axis noise, causing feedback and unwanted ambient noise. The ULX-2 is powered with a standard 9 V alkaline battery (included).

Shure ULXP124/BETA87C-X1 Features

  • Combination System: The system consists of two ULXP4 UHF diversity receivers, a ULX-1 belt-pack transmitter and ULX-2 handheld transmitter with a Shure Beta 87C head
  • Diversity Receiver: The ULXP4 receiver features a diversity design, represented with its dual antennas. The Design features dual internal receivers, constantly vying for the strongest reception
  • Frequency Agile: Both transmitter and receiver operate via UHF frequencies and offer over 1400 user selectable frequencies
  • Comprehensive Display: Comprehensive LCD displays on the transmitter and receiver provide group and channel information. Two 5-segment LED's provide audio level and RF signal information on the receiver

Shure ULXP124/BETA87C-X1 Specifications

RF Carrier Frequency Range
X1: 944-952 MHz
Approx. Working Range
300 Feet (100m)
Overall Frequency Response
25 Hz - 15 kHz, (±2 dB)
ULX1 (input): 1 Megaohm
ULXS4, ULXP4 (output): 50ohms at line level; 2000 ohms at mic level
±38 kHz deviation compressor-expander system with pre and de-emphasis
No of Channels
Over 1400 User Selectable Frequencies
Dynamic Range
>100 dB, A-weighted
RF Sensitivity
1.26 uV for 12 dB SINAD (typical)
Image Rejection
80 dB typical
Spurious Rejection
75 dB typical
Ultimate Quieting
Reference ±38 kHz deviation: > 105 dB, A-weighted
System Distortion (reference ±38 kHz deviation, 1 kHz modulation)0.3% total harmonic distortion, typical
No of Simultaneous Systems
Up to 20
Operating Temperature
- 4 to 120deg. F (20 to 49deg. C)
Receiver: Type of Outputs
8 to 9 hours (with 9V alkaline battery)
Headphone Monitoring
Power Requirements
14 - 18VDC (negative ground), 550mA
External Power Supply - PS40, Included, Now with Locking DC Connector
Yes, Power On Indicator, Diversity Signal Indicators and Audio Peak Indicator, Channel, Group, Transmitter Low Battery Warning
Mounting Options
Rack / Table Top Mount 1/2 Rack Space
Output Level
XLR connector (into 600 ohm load): +3.9 dBV (line), -17 dBV (mic)
1/4 inch connector (into 3000 ohm load): -2 dBV
(±38 kHz deviation, 1 kHz tone)
Antenna Type
Body-Pack Transmitter: Input Connector
TAF4 4-Pin Mini Connector
Body-Pack Transmitter: Battery Type/Life
8 to 9 hours (with 9V alkaline battery)
Body-Pack Transmitter: Mute Switch
Body-Pack Transmitter: Level Control
Yes, 25dB Gain Adjustment Range
Body-Pack Transmitter: Polarity
Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low impedance output) and the tip of the high impedance 1/4-inch output
Body-Pack Transmitter: Antenna Type
Removable 1/2 Wave
Body-Pack Transmitter: Display
Power On/Off Indicator, 3-Segment Low Battery Indicator, Channel and Group, Peak Icon (Input Overload Warning)
Handheld Transmitter: Input Connector
Microphone Element is Attached (Screwed On) to Transmitter
Handheld Transmitter: Type of Microphone
SM87C Condenser Microphone Head
Handheld Transmitter: Polar Pattern
Handheld Transmitter: Battery Type/Life
8 to 9 hours (with 9V alkaline battery)
Handheld Transmitter: Mute Switch
Handheld Transmitter: Level Control
Yes, 25dB Gain Adjustment Range
Handheld Transmitter: Antenna Type
Handheld Transmitter: 8.8 x 2" (223.5 x 51mm)
Body-Pack Transmitter: 3.86 x 2.68 x 1.10" (98.04 x 68.07 x 27.94mm)
Receiver: 1.72 x 8.56 x 6.88" (43.68 x 217.42x 1724.75mm)
Handheld Transmitter: 9.1 oz. (258 g)
Body-Pack Transmitter: 2.8 oz. (79 g) without battery
Receiver: 2 lb, 7 oz (1.10 kg)
