Shure

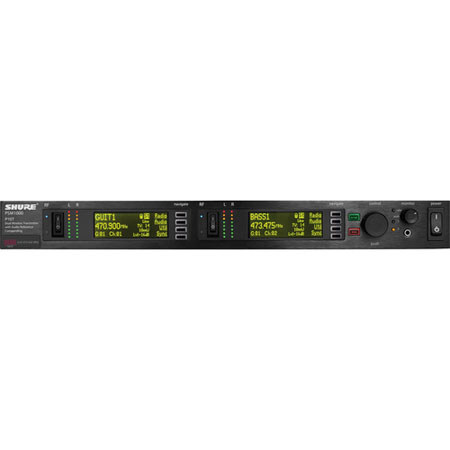

Shure PSM1000 Personal Monitor System, L8/626-698 MHz Frequency, 90 m (295') Operating Range

SKU: SHP1TR4L8 MFR: P10TR425CL-L8
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable.
We Charge you when you place your order. Approximate arrival at Adorama 1 - 2 Weeks from date of order.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$6,381.00 List Price

Our Price

$5,105.00
Free Shipping
Qty:
Add to Wishlist

Protect your investment

About the Shure P10TR425CL-L8

The Shure P10TR425CL-L8 Personal Monitor Dual System is a professional wireless IEM monitoring system intended for touring, live venue installations, houses of worship, broadcast applications and anywhere high-grade wireless monitoring is necessary. The PSM1000 features the P10T full-rack dual wireless transmitter and a pair of P10R diversity bodypack receivers.

The transmitter's touring-grade all-metal housing is sure to handle the rigors of life on the road. The P10T also features Ethernet networking and control via the optional Wireless Workbench software, 72 MHz tuning bandwidth, precision front-end RF filtering for enhanced signal stability and much more. The P10R bodypacks feature diversity reception for stable, reliable signal. The PSM1000 is completely backwards compatible with all PSM900 series monitoring components.

Shure P10TR425CL-L8 Includes

  • Shure P10R Wireless Bodypack Receiver for PSM1000 (L8: 626-698MHz)
  • 2 x P10T Dual Wireless Transmitter
  • 2 x SE425 Sound Isolating In-Ear Stereo Headphones (Clear)
  • 2 x 1/2 Wave Antennas
  • 4 x AA Batteries
  • 2 x Antenna Cables
  • IEC Power Cable & IEC Extension Cable
  • Ethernet Network Cable
  • Zippered Bag
  • 2 x Antenna Hole Plugs
  • 4 x Rack Mounting Screws with Washers
  • Shure Warranty

Shure P10TR425CL-L8 Features

  • Full-rack, dual channel wireless transmitter housed in a touring-grade, all-metal chassis
  • Networked control via Ethernet connection vastly simplifies setup for high channel counts and enables remote control via Wireless Workbench software
  • Internal power supply with IEC in/out ports enables easy power chaining in the rack
  • Backwards compatibility with PSM 900 receivers for simplified inventory management
  • Diversity bodypack dramatically improves signal reception and increases range
  • Precision front-end RF filtering reduces RF interference for a cleaner, stronger RF signal, fewer dropouts and less audible artifacts
  • CueMode allows monitoring of different stage mixes and storing of up to 20 separate channels on one bodypack for quick and easy reference
  • Backward compatible with PSM 900 transmitters and receivers (in the same frequency range) to facilitate streamlined inventory management for rental and touring
  • Up to 72 MHz Tuning Bandwidth (region dependent) provides flexibility in today's crowded and unpredictable RF environments
  • Full bandwidth scan from the P10R bodypack receiver finds clean, compatible frequencies and provides a graphic spectrum plot viewable from the bodypack menu screen
  • Send the identified frequencies and spectrum plot to the P10T transmitter over IR sync
  • Program compatible frequency assignments from one transmitter to every other P10T transmitter on the network over Ethernet connection for vastly simplified and streamlined setup
  • Spectrum display provides a front-panel spectrum plot with selectable zoom
  • Provides advanced RF spectrum plotting, comprehensive frequency coordination and live monitoring and adjustment of transmitter settings
  • The SB900 lithium-ion rechargeable battery provides extended usage times and precise tracking of remaining life and charge cycle details
  • The SCB800-US eight-bay charger brings up to eight SB900 batteries to full charge within two hours and has charge status LEDs for each battery

Shure P10TR425CL-L8 Specifications

Monitor: RF Carrier Range 470 - 952 MHz (region-dependent)
Monitor: Compatible Frequency 39 Per band
Monitor: Tuning Bandwidth 72 - 80MHz (region-dependent)
Monitor: Operating Range 90m / 295ft (environment-dependent)
Monitor: Audio Frequency Response 38Hz - 15kHz
Monitor: Signal-To-Noise Ratio 90dB (A-Weighted)
Monitor: Total Harmonic Distortion <0.5% typical (ref. ±34kHz Deviation @ 1kHz)
Monitor: Stereo Encoding/Decoding Digital Walsh Encoding
Monitor: Companding Patented Audio Reference Companding
Monitor: Spurious Rejection >80dB typical (referenced to 12dB SINAD)
Monitor: Frequency Stability ±2.5ppm typical
Monitor: MPX Pilot Tone 19 kHz (±0.3 kHz)
Monitor: Modulation FM, MPX Stereo (ref. ±34kHz deviation @ 1kHz)
Monitor: Operating Temperature Yes
Transmitter: Power Requirement Input: 100-240 V AC, 50/60 Hz, 0.5 A max (5.5 max outlet)
Output: 100-240 V AC, 50/60 Hz, 5 A max, unswitched
Transmitter: RF Output Power Selectable: 10, 50, 100 mW (+20 dBm), region-dependent
Transmitter: RF Output Impedance 50 Ohm typical
Body Pack: Front-End RF Filtering Tri-Band, Dual Stage 3-Pole Chebyshev
Body Pack: Active RF Gain Control Adjusts Receiver RF Sensitivity to provide 31dB more RF Dynamic Range
Body Pack: Squelch Threshold 22 dB SINAD (±3 dB) default setting
Body Pack: RF Sensitivity 2.2 uV at 20dB SINAD
Body Pack: Image Rejection >90 dB typical
Body Pack: Adjacent Channel Rejection >70 dB
Body Pack: Intermodulation Attenuation >50dB (referenced to 30dB SINAD with -80dBm on channel signal at 45kHz deviation of a 1 kHz tone) >70dB for 12dB SINAD
Body Pack: Blocking >80dB
Body Pack: Audio Output Power 100 mW (per output)
1kHz @ <1% distortion, peak power, @32Ohm
Body Pack: Battery Life 6 hours typical using AA batteries
Body Pack: Minimum Load Impedance 9.5 Ohm
Body Pack: High Boost Selectable: +2 dB, +4 dB @ 10 kHz
Body Pack: Volume Limiter Selectable: 3-9 Limits volume adjustment knob
Headphones: Speaker Type Dual High-Definition MicroDrivers
Headphones: Sensitivity (1kHz) 109 dB SPL/mW
Headphones: Impedance (1kHz) 22 Ohm
Headphones: Noise Attenuation Up to 37 dB
Headphones: Frequency Range 20Hz - 19kHz
Headphones: Input Connector Gold-plated 3.5 mm (1/8")
Headphones: Cable 64" Detachable (at ear) with wireform fit
Dimensions Transmitter: 483 mm x 343 mm x 44 mm (19.0 in. x 13.5 in x 1.7 in)
Body Pack: 99 mm x 66 mm x 23 mm (3.9 in. x 2.6 in. x 0.9 in.)
Weight Transmitter: 4.7 Kg (10.4 lbs)
Body Pack: 196 g (6.91 oz) (with 2 AA batteries)
