| Display Device |
Brilliant Color 0.65" DLP |
| Mac Compatibility |
Mac 21" (intelligent compression), 19"/16"/13" |
| Resolution Capability (Maximum) |
UXGA (1600 x 1200) with ImageACE Resizing |
| Resizing |
Intelligent ImageACE Resizing for compatibility up through UXGA (1600 x 1200) |
| 3D Ready with DLP Link |
Yes (requires compatible 3D field sequential content, PC/graphics card and 3D active shutter glasses) |
| 3D Support |
60Hz/120Hz XGA (1024 x 768) and SVGA (800 x 600) |
| Lens Type |
1:1.2x Short Throw Manual Zoom and Focus, F2.4-2.6, f=19.0-22.7mm, Throw Ratio: 1:1.7-2.1 |
| Closed Caption |
Yes (CC1, CC2) |
| Dot Clock |
12-165 MHz |
| Frequency Range |
15-110 kHz Horizontal / 45-85 Hz Vertical (DLP Link Off) |
| Min/Max Screen Size |
40" - 300" (diagonal, 16:10 or 4:3) |
| Lamp |
250 Watt (end-user replaceable) - model number AN-D350LP or AN-D350LP/1 |
| Est. Lamp Life (standard/low-power mode) |
up to 2000 hours (Eco+Quiet: Off); up to 3000 hours (Eco+Quiet: On) |
| Fan Noise (standard/low-power mode) |
38 dB (Eco+Quiet: Off); 30 dB (Eco+Quiet: On) |
| Wireless Remote Control |
Yes (included) |
| Wired Remote |
No |
| Brightness |
3000 Lumens |
| Contrast Ratio |
2000:1 (with advanced condenser lens optical system) |
| Display Resolution (Native) |
WXGA (1280 x 800) |
| DTV/HDTV Compatibility |
480i, 480p, 540p, 576i, 720p, 1080i, 1080p with 4:3 and 16:9 aspect ratios |
| Native Aspect Ratio |
16:10 |
| Video Circuitry |
sRGB plus Brightness Boost and I/P Conversion |
| Video System |
NTSC 3.58, 4.43 / PAL, 60, M, N / SECAM |
| Audio System |
7 Watt Monaural with Variable Audio Line Output |
| Computer Inputs |
HDMI 2 Computer/RGB (or Component) mini D-sub 15 pin |
| Video Inputs |
HDMI; 2 Component Video (or RGB/Computer) - mini D-sub 15 Pin Independent S-Video - 4-pin mini DIN and Composite Video - RCA pin-type |

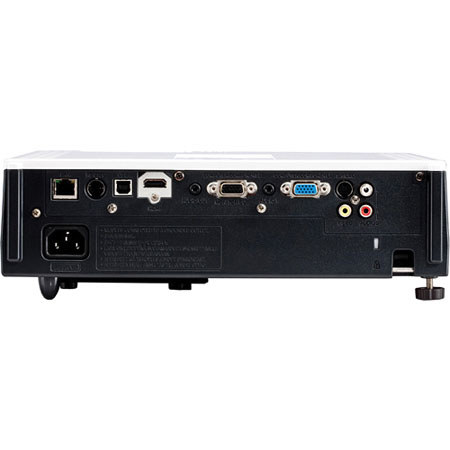

| Outputs |
RGB Monitor Loop-Through - 15 Pin HD "VAO" (Variable Audio Output) line-out - 3.5mm stereo mini connector |
| Power Source |
100V-240V AC, 50/60Hz |
| Dimensions (W x H x D) |
11.8 x 3.1 x 9.3" / 29.97 x 7.87 x 23.62 cm(main body) |
| Weight |
6.2 lbs / 2.81 kg |
