Shure PGX1=-H6 Bodypack Transmitter, H6 Band, 524-542MHz Frequency Range
Shure

Shure PGX1=-H6 Bodypack Transmitter for PGX Series Wireless, H6 Band, 524-542 MHz Frequency Range

SKU: SHPGX1H6 MFR: PGX1=-H6
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable.
We Charge you when you place your order. Approximate arrival at Adorama 1 - 2 Weeks from date of order.
What's Included
What's Included With This Item:
  • Shure PGX1=-H6 Bodypack Transmitter
  • Belt Clip
  • Shure Warranty
Write a Review
Ways to Save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$170.00
Free Shipping (USA)
Qty:

Add to Wishlist
OverviewFeaturesTech Specs
Its never too late...Click by 8! Same day shipping.

About the Shure PGX1=-H6

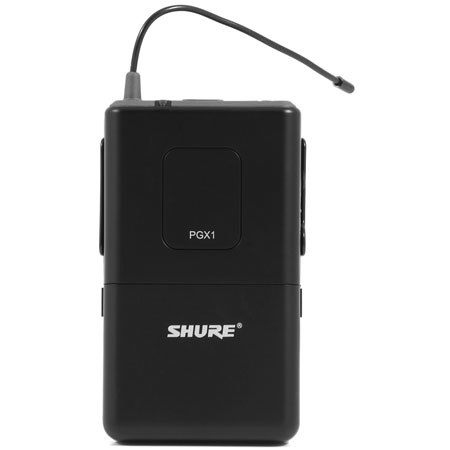

The Shure PGX1=-H6 bodypack transmitter is designed for use with the Shure PGX series wireless microphone system. The transmitter is lightweight and durable, featuring a 4-pin mini microphone input. The microphone input is compatible with Shure's WL series lavaliers, headsets and instrument cables.

A 3-position input level switch enables the microphone input to accommodate microphone level and line level signal, as well as provide added headroom for distorted audio signals. The transmitter operates up to 8 hours on a single 9 V alkaline battery.

Shure PGX1=-H6 Includes

  • Shure PGX1=-H6 Bodypack Transmitter
  • Belt Clip
  • Shure Warranty

Shure PGX1=-H6 Features

  • Infrared Sync Port: The PGX series transmitters and receiver feature infrared remote synchronization of channel and frequency status
  • Audio Reference Companding: Shure's Audio Reference Companding technology implements the companding process at the highest audio peaks only. The result is a more natural sounding audio signal, similar to that of a wired microphone
  • Input Level Switch: A 3-position input level switch enables the microphone input to accommodate microphone level and line level signal, as well as provide added headroom for distorted audio signals
  • Long Battery Life: The PGX2 is powered for up to 8 hours on 2 AA alkaline batteries

Shure PGX1=-H6 Specifications

Compatibility Shure PGX Wireless System
Audio Input Level -10 dBV maximum at "mic" gain position
+10 dBV maximum at 0dB gain position
+20 dBV maximum at -10dB gain position
Gain Adjustment Range 30 dB
Input Impedance 1 M ohms
RF Output Level 30 mW maximum
Housing Molded polycarbonate case
Power Requirements 2 AA size alkaline or rechargeable batteries
Battery Life > 8 hours (alkaline)
Dimensions (H x W x D) 108 x 64 x 19mm (4.25 x 2.50 x 0.75 in.)
Weight 81g (3 oz.) without batteries
