Sharp

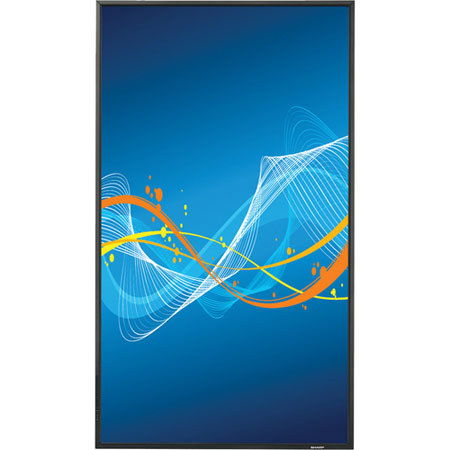

Sharp PN-A601 60" LED-LCD Monitor with Built-in 10W + 10W Stereo Speakers, Up to 2000 cd/m2 Brightness, 16:9 Aspect Ratio, 1920x1080 Resolution

SKU: SHPPNA601 MFR: PN-A601
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$3,789.50
Qty:

Add to Wishlist

About the Sharp PN-A601

The Sharp PN-A601 60" LED-LCD Monitor features high 200 cd/m2 brightness and low power consumption, providing a low-cost digital signage solution suitable even for brightly lit areas. The full 1080p resolution screen features an LED backlight and a high 1,000,000:1 contrast ratio, thanks to its innovative local dimming feature, which automatically dims groups of LEDs. The LCD is certified for 24x7 use, making it ideal for a wide range of applications such as airport terminals, shopping malls, transportation hubs, as well as corporate and hotel lobbies.

The monitor's long list of interfaces lets you connect the device a long list of audio and video input and output devices. Standard interfaces include HDMI, stereo audio input, stereo audio line-output and RS-232C input/output. Additionally, the optional PN-ZB01 Input/output expansion board adds even more connectivity options such as DVI-D, LAN display control and stereo speaker output.

Sharp PN-A601 Includes

  • Sharp PN-A601 60" LED-LCD Monitor
  • 3-Wire Grounded Power Cord (10.0')
  • Remote Control
  • AA 1.5V Alkaline Battery (2 Pack)
  • CD-ROM
  • Operation Manual
  • 2 x Stand Hole Protection Cover
  • Sticker (2 x Operation Panel/Logo/Blank)- 2 x Cable Clamp
  • Sharp 3 Year Limited Warranty

Sharp PN-A601 Features

  • Exceptionally High Brightness for Settings with High Ambient Light - up to 2,000 cd/m2 brightness
  • 60" Class (60" Diagonal) Screen Size - with Sharp UV2A LCD Technology provides exceptionally deep blacks and bright vivid colors
  • Local Dimming - for high contrast and superb energy efficiency. Local dimming allows specific groups of LEDs to be dimmed. This helps deliver remarkably high contrast (up to 1,000,000:1 contrast ratio) and significant power savings
  • Full Array LED Backlight - gives the PN-A601 more uniform brightness than conventional CCFL backlighting. LED elements are positioned across the entire panel directly behind the liquid crystal layers, helping ensure beautiful uniform images
  • Full 1920 x 1080 (1080p) Resolution - from analog RGB, digital RGB and HDTV video sources
  • 24/7 Certified - for use in most any commercial application
  • Enlarge (Zoom) Display Mode - enables easy installation of high-impact video walls of up to 5 x 5. (Some installations may require additional third-party hardware.)
  • Built-in 10 Watt per Channel Stereo Amplifier - for use with external loudspeakers
  • Extensive Interface Capability - Standard interfaces include HDMI input D-Sub 15-pin RGB input, stereo audio input, stereo audio line-output and RS-232C input/output
  • Optional Input/Output Expansion Board (PN-ZB01) - adds DVI-D input/output, 5-BNC analog RGB input, component video input, S-video input, composite video input (BNC), stereo audio (RCA) input x 2, RJ-45 LAN display control and stereo speaker output (10W x 2)
  • Optional Media Player PC (PN-TPC1) - easily attaches to rear of display. Permits all-in-one digital signage display package
  • ENERGY STAR Qualified - with exceptionally low power consumption. The PN-A601 additionally conforms to the RoHS Directive restricting the use of hazardous substances

Sharp PN-A601 Specifications

Screen Size Class 60" Class (60" Diagonal)
Bezel Width 19.8 mm
Native Display Resolution 1920 x 1080
Maximum Brightness (average) 2,000 cd/m2
Landscape and Portrait Mode Operation Yes
Certified for 24/7 Continuous Operation Yes
Fanless Architecture No
Audio 10W + 10W Stereo Amplifier
LCD Type UV2A LCD
Number of Colors (approx.) 1,060 Million
Contrast Ratio Up to 1,000,000 (local dimming set to HIGH); Up to 5,000:1 (local dimming OFF)
Aspect Ratio 16:9
Viewing Angle (H/V) 176deg. H x 176deg. V (CR>/=10)
Active Screen Area (approx.) 52-5/16" W x 29-7/16" H
Pixel Pitch 0.692 mm H x 0.692 V
Video System NTSC (3.58 MHz; 4.43 MHz), PAL, PAL60, SECAM
Computer Input - Video Analog RGB (0.7 Vp-p) [75-ohm], Digital (conforms to DVI 1.0 standards)
Computer Input - Synchronization Horizontal / Vertical separation (TTL: positive/negative), Sync on green, composite sync (TTL: positive/negative)
Computer Input - Plug & Play VESA DDC2B
Power Management VESA DPMS, DVI DMPM
Response Time 6 ms (gray to gray, avg)
PC/AV Video Input Analog mini D-sub 15-pin. DVI-D 24-pin HDCP Compatible (requires optional PN-ZB01); Analog 5-BNC (requires optional PN-ZB01; analog RGB and component are menu selectable).
PC/AV Audio Input 3.5 mm mini stereo jack
Video Input Composite Video - BNC (requires optional PN-ZB01)
S-Video Input 5-Pin DIN (requires optional PN-ZB01)
Component Video BNC (Y, Cb/Pb,Cr/Pr) (requires optional PN-ZB01; component video and analog RGB are menu selectable)
HDMI Yes - compatible for both PC and AV components
Audio (AV) RCA pin (L/R) x 2 (requires optional PN-ZB01)
Computer Output DVI-D 24-pin (HDCP compatible, PC/AV signal; requires optional PN-ZB01)
Audio Line Output RCA pin (L/R) - selectable fixed or variable line output
Speaker Output 10W + 10W Stereo (6-ohms; requires optional PN-ZB01)
LAN Port RJ-45 (requires optional PN-ZB01)
RS-232C D-sub 9-pin
Power Output Connector Yes - 19V
Screen Adjustment Auto (Clock, Phase, H-POS/V-POS) / Manual
Gain Control Auto (Black level, Contrast) / Manual
Digital Scaling (expansion) Yes (VGA/SVGA/XGA/SXGA -> 1920 x 1080)
Digital Scaling (compression) 1920 x 1200, 1600 x 1200
Main User Adjustments Clock, Phase, H-POS/V-POS, Black level, Contrast; Color temp (15 steps preset + 5600K/9300K + User setting); Color mode (Standard/sRGB/Vivid); Gamma (1.8/2.0/2.2/2.4/User setting); Brightness, Volume, Audio (Treble/Bass/Balance), OSD-POS; Picture Adjustment (Tint, Color Intensity) [PC/AV mode]; R/G/B/Y/M/C independent adjustment [AV mode]
Real Time Clock Setting Yes
Scheduling Function Yes (time, day of the week)
All Reset Yes
Reset Screen/Picture/Audio adjustment setting, etc.
Adjustment Lock YES (incl. Power button)
Daisy Chain (DVI-D) Optional (PN-ZB01): max. 5 units (HDCP compliant)
Enlarge Yes
Frame Width Adjustment Yes
PinP / PbyP Yes (PinP: 64 steps)
Power On Delay 1-60 seconds (with 1 second interval)
Audio Input Change Yes
Picture Flip No
Self Adjust Yes (PC Analog Input)
Log Save / Output Yes
Temperature Control Yes
Hardware Diagnosis Yes
Monitor Control Software Support Yes
Overscan Setting (AV Input) Yes
Image Size Change Function Yes
Resolution Change Function (PC analog) Yes
RS-232C Communication Speed Change Yes
Conversion of Stereo Audio to Monaural Yes
Selection of Audio Input per image input Yes
Power Consumption 620 W with PN-ZB01; 600 W without PN-ZB01
Standby Power Consumption With PN-ZB01: 9.0 W (standby mode, Standard), 0.5 W (standby mode, Low Power); without PN-ZB01: 1.0 W (standby mode, Standard); 0.5 W (standby mode, Low Power)
Power Source 100 - 240V AC, 50/60 Hz
Tuner No
Operating Temperature 0deg. C - 40deg. C
Operating Humidity 20% to 80% RH (no condensation)
Storage Temperature -4 - 140deg. F (-20 - 60deg. C)
Regulatory Approvals UL 60950, FCC Class A
ENERGY STAR Qualified Yes
Mounting Configuration VESA (6 points), 200 mm (7-7/8") pitch, M6 screws or VESA (4 points), 200 mm (7-7/8") pitch, M6 screw
Dimensions (W x H x D) 54-3/32" x 5-25/32" x 31-7/32" (137.3 x 14.68 x 79.29 cm)
Weight 99.2 lbs / 44.9 kg
