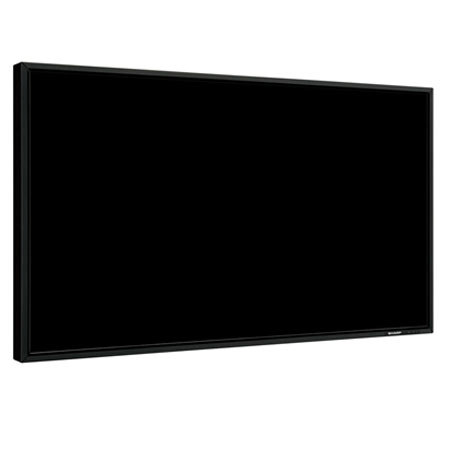

Sharp PN-E471R 47" Class LCD Monitor, 1920x1080 Resolution, 700 cd/m2 Brightness, 1000:1 Contrast Ratio

Sharp
SKU: SHPPNE471R MFR: PN-E471R
Sharp PN-E471R: Picture 1 thumbnail Sharp PN-E471R: Picture 2 thumbnail Sharp PN-E471R: Picture 3 thumbnail Sharp PN-E471R: Picture 4 thumbnail
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Sharp PN-E471R

The Sharp PN-E471R 47" Class LCD Monitor offers exceptionally high image quality and reliability for use in commercial display and digital signage applications. 24/7 certified, the thin bezel PN-E471R offers full 1920 x 1080 (1080p) resolution from analog RGB, digital RGB and HDTV video sources along with compatibility for use in both portrait and landscape modes. Fanless architecture helps ensure ultra-quiet reliable operation and optional input/output expansion board and signage controller provide maximum flexibility. In addition, the PN-E471R monitor is compatible with SDSS Sharp Digital Signage Software that facilitates program creation, registration, scheduling and distribution of pre-scheduled information on Sharp PN series LCD monitors.

Sharp PN-E471R Features

  • 47" Class (46-5/16" Diagonal) Screen Size - with 700 cd/m2 brightness and 1200:1 contrast ratio
  • Full 1920 x 1080 (1080p) Resolution - from analog RGB, digital RGB and HDTV video sources
  • 24/7 Certified - for use in most any commercial application
  • Advanced Fanless Architecture - operates silently with maximum reliability
  • Thin Bezel Design along with Enlarge (Zoom) Display Mode - enables easy installation of high-impact video walls of up to 5 x 5 (Some installations may require additional third-party hardware.)
  • Built-in 10 Watt per Channel Stereo Speakers - eliminates need for an external audio system for many installations
  • Extensive Interface Capability - Standard interfaces include HDMI input D-Sub 15-pin RGB input, stereo audio input, stereo audio line-output and RS-232C input/output
  • Optional Input/Output Expansion Board (PN-ZB01) - adds DVI-D input/output, 5-BNC analog RGB input, component video input, S-video input, composite video input (BNC), stereo audio (RCA) input x 2, RJ-45 LAN display control and stereo speaker output (10W x 2)
  • Optional Signage Controller (PC) - easily attaches to rear of display. Permits all-in-one digital signage display package
  • Compatible with SDSS Sharp Digital Signage Software
  • ENERGY STAR Qualified - with exceptionally low power consumption

Sharp PN-E471R Specifications

Screen Size Class
47" Class (46-15/16" Diagonal)
Bezel Width
19.5 mm (0.77")
Native Display Resolution
1920 x 1080
Maximum Brightness (average)
700 cd/m2
Landscape and Portrait Mode Operation
Yes
Certified for 24/7 Continuous Operation
Yes
Fanless Architecture
Yes
Audio
10W + 10W Stereo with built in speakers
LCD Type
TFT Active Matrix LCD
Number of Colors (approx.)
1,064 Million
Contrast Ratio
1200:1
Aspect Ratio
16:9
Viewing Angle (H/V)
178deg. H x 178deg. V (CR>/=10)
Active Screen Area (approx.)
40-15/16" W x 23" H
Frame Rate
60 Hz
Pixel Pitch
0.542 mm H x 0.542 V
Video System
NTSC (3.58 MHz; 4.43 MHz), PAL, PAL 60, SECAM
Computer Input - Video
Analog RGB (0.7 Vp-p) [75-ohm], Digital (conforms to DVI 1.0 standards)
Computer Input - Synchronization
Horizontal / Vertical separation (TTL: positive/negative), Sync on green, composite sync (TTL: positive/negative)
Computer Input - Plug & Play
VESA DDC2B
Power Management
VESA DPMS, DVI DMPM
Response Time
9 ms (gray to gray, avg)
PC/AV Video Input
Analog mini D-sub 15-pin. DVI-D 24-pin HDCP Compatible (requires optional PN-ZB01); Analog 5-BNC (requires optional PN-ZB01; analog RGB and component are menu selectable).
PC/AV Audio Input
3.5 mm mini stereo jack
Video Input
Composite Video - BNC (requires optional PN-ZB01)
S-Video Input
5-Pin DIN (requires optional PN-ZB01)
Component Video
BNC (Y, Cb/Pb,Cr/Pr) (requires optional PN-ZB01; component video and analog RGB are menu selectable).
HDMI
Yes - compatible for both PC and AV components
Audio (AV)
RCA pin (L/R) x 2 (requires optional PN-ZB01)
Computer Output
DVI-D 24-pin (HDCP compatible, PC/AV signal; requires optional PN-ZB01)
Audio Line Output
RCA pin (L/R) - selectable fixed or variable line output
Speaker Output
10W + 10W Stereo (6-ohms; requires optional PN-ZB01)
LAN Port
RJ-45 (requires optional PN-ZB01)
RS-232C
D-sub 9-pin
Power Output Connector
Yes - 19V
Screen Adjustment
Auto (Clock, Phase, H-POS/V-POS) / Manual
Gain Control
Auto (Black level, Contrast) / Manual
Digital Scaling (expansion)
Yes (VGA/SVGA/XGA/SXGA -> 1920 x 1080)
Digital Scaling (compression)
1920 x 1200, 1600 x 1200
Main User Adjustments
Clock, Phase, H-POS/V-POS, Black level, Contrast
Color temp (15 steps preset + 5600K/9300K + User setting)
Color mode (Standard/sRGB/Vivid)
Gamma (1.8/2.0/2.2/2.4/User setting)
Brightness, Volume, Audio (Treble/Bass/Balance), OSD-POS
Picture Adjustment (Tint, Color Intensity) [PC/AV mode]
R/G/B/Y/M/C independent adjustment [AV mode]
Real Time Clock Setting
Yes
Scheduling Function
Yes (time, day of the week)
All Reset
Yes
Reset
Screen/Picture/Audio adjustment setting, etc.
Adjustment Lock
YES (incl. Power button)
Daisy Chain (DVI-D)
Optional (PN-ZB01): max. 5 units (HDCP compliant)
Enlarge
Yes
Frame Width Adjustment
Yes
PinP / PbyP
Yes (PinP: 12 steps)
Power On Delay
1-60 seconds (with 1 second interval)
Audio Input Change
Yes
Picture Flip
No
Self Adjust
Yes (PC Analog Input)
Log Save / Output
Yes
Temperature Control
Yes
Hardware Diagnosis
Yes
Monitor Control Software Support
Yes
Overscan Setting (AV Input)
Yes
Image Size Change Function
Yes
Resolution Change Function (PC analog)
Yes
RS-232C Communication Speed Change
Yes
Conversion of Stereo Audio to Monaural
Yes
Selection of Audio Input per image input
Yes
Power Consumption
260W; 225W (without audio input)
Standby Power Consumption
2.0W (standby mode in Standard), 0.8W (standby mode in Low Power)
Power Source
100 - 240V AC, 50/60 Hz
Operating Temperature
0deg. C - 40deg. C
Operating Humidity
20% to 80% RH (no condensation)
Storage Temperature
-4 - 140deg. F (-20 - 60deg. C)
ENERGY STAR Qualified
Yes
Mounting Configuration
VESA (6 points), 200 mm (7-7/8") pitch, M6 screws or VESA (4 points), 200 mm (7-7/8") pitch, M6 screw
Remote Control
Yes (wireless remote plus wired RJ-45 and RS-232C) (RJ-45 requires optional PN-ZB01)
Compatible with SDSS (optional)
Yes. SDSS software delivers content program creation, registration, scheduling and distribution of pre-scheduled information on Sharp PN series displays. Operates easily with user-friendly interface
Dimensions (W x H x D)
42-5/8 x 4-3/8 x 24-3/4" (108.26 x 11.11 x 62.86 cm)
Weight
56.2 lbs (25.49 kg)
Mfr #
PN-E471R
SKU
SHPPNE471R
