Sharp

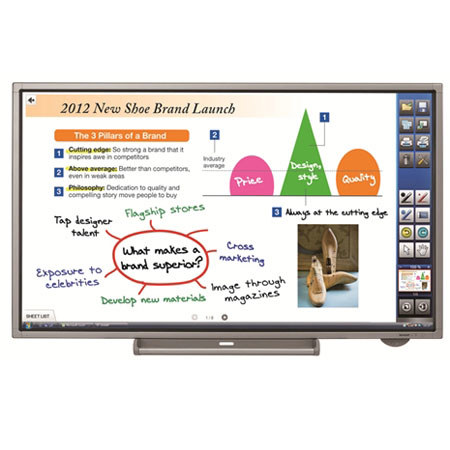

Sharp PN-L702B 70" HD Interactive Whiteboard LED-LCD Display, 1920x1080 Resolution, 300 cd/m2 Brightness, 3000:1 Contrast Ratio

SKU: SHPPNL702B MFR: PN-L702B
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$4,709.49
Qty:

Add to Wishlist

About the Sharp PN-L702B

The Sharp PN-L702B 70" HD Interactive Whiteboard LED-LCD Display is a touchscreen digital whiteboard with highly useful interactive tools facilitating efficient communication and collaboration. By use of an included Sharp Pen Software, all function icons such as "Open" and "Print" can be controlled by touch pen or by the touch of a finger. All data can likewise be worked with by touch and can also be drawn over. Images can be resized with the glide of two fingers or by touch pen. A featured toolbar and built-in background templates, such as graphs and a calendar, are also touch-interactive. All changes can be saved, shared, printed or erased, including the drawing marks.

The Pen Software is compatible with Microsoft Windows 7 and Office and easily imports documents such as PowerPoint presentations. These documents can be edited and drawn over by touch as well. A keyboard can also be used along with or instead of touch. (An optional Sharp compact PC (the PN-TPC1W7) or a regular PC is required for Windows and can easily plug into the whiteboard by HDMI cable). The whiteboard can stream multiple video signals and is great for remote video conferencing and webinars as well as teleconferences, training sessions and sales presentations. It can also serve commercial and digital signage purposes as it is engineered to reliably work 24x7 and is energy-efficient and also because images on it can be resized to be very large.

Sharp PN-L702B Includes

  • Sharp PN-L702B 70" HD Interactive Whiteboard LED-LCD Display
  • Touch Pen with AAA Battery
  • 2 x Pen Tip (For Touch Pen)
  • Pen Tray And Eraser
  • Remote Control with 2 x AA Batteries
  • 3-Wire (Grounded) Power Cord
  • USB Cable
  • 2 x Cable Clamp
  • CD-ROM/ Setup Manual
  • Sharp 3 Year Limited Warranty

Sharp PN-L702B Features

  • Spectacular 70" Class (69-1/2" diagonal) Screen Size - combined with Sharp UV2A photo alignment technology help create brilliant color images with maximum impact
  • Full Array LED Backlight - positions energy-efficient white LEDs evenly across the entire panel for uniform brightness, enhanced reliability and greater legibility of text
  • High Performance Infrared Detection System - with multiple infrared sensors detect touch points with greater accuracy to increase usability and precision. Create work plans, highlight key topics, annotate files and more - and then share marked up documents or print hard copies for future reference
  • Intuitive Sharp Pen Software Application - provides new dimension in interactive control. Utilizing the tip of your finger or touch pen you can open and close documents, enlarge or shrink images, even make hard copy printouts
  • User-Friendly Tool Bar - lets you select a variety of drawing options with a simple tap of an icon
  • Dual Touch Interface - with two fingers, you can easily enlarge, reduce or rotate an image
  • Built-in Library of Backgrounds to use during presentations - includes calendar, to-do list, meeting log, graph paper and action plan
  • Brilliant, Big Screen Images for Digital Signage - for use in public areas like trade show exhibit halls, hotel lobbies and conference areas, airport corridors and retail locations
  • Engineered for 24/7 Commercial Use - provides you with the reliability and durability needed for your business
  • Streamlined Communications via Direct MFP Connection - By connecting the PN-L702B to a Sharp network-connected MFP (multifunction product), documents may be scanned from the MFP and directly imported to the pen software for display on the PN-L702B
  • Extensive Interface Capability - includes as standard interfaces HDMI input D-Sub 15-pin RGB input, stereo audio input, stereo audio line-output and RS-232C input/output
  • Optional PC - attaches easily to rear of display for an all-in-one interactive display solution. PN-TPC2W7A: Pentium 2.6 GHz dual-core PC with Windows: 7 Pro

Sharp PN-L702B Specifications

Screen Size Class 70" (69.5" Diagonal)
Bezel Width 41 mm
Native Display Resolution 1920 x 1080
Maximum Brightness (average) 300 cd/m2
Landscape and Portrait Mode Operation Landscape compatible
Certified for 24/7 Continuous Operation Yes
Fanless Architecture Yes
Audio 7W + 7W Stereo with built in speakers
LCD Type UV2A LCD
Number of Colors 1.06 Billion
Contrast Ratio 3000:1
Aspect Ratio 16:09
Viewing Angle (H/V) 160deg. H x 160deg. V (CR>/=10)
Active Screen Area 60-9/16" W x 34-1/16" H
Frame Rate 60 Hz
Pixel Pitch 0.802 mm H x 0.802 mm V
Video System NTSC (3.58 MHz; 4.43 MHz), PAL, PAL60, SECAM
Computer Input - Video Analog RGB (0.7 Vp-p) [75-ohm], Digital (conforms to DVI 1.0 standards)
Computer Input - Synchronization Horizontal / Vertical separation (TTL: positive/negative), Sync on green, composite sync (TTL: positive/negative)
Computer Input - Plug & Play VESA DDC2B
Power Management VESA DPMS, DVI DMPM
Response Time 6 ms (gray to gray, avg)
PC/AV Video Input Analog mini D-sub 15-pin. DVI-D 24-pin HDCP Compatible (requires optional PN-ZB01); Analog 5-BNC (requires optional PN-ZB01; analog RGB and component are menu selectable).
PC/AV Audio Input 3.5 mm mini stereo jack
Video Input Composite Video - BNC (requires optional PN-ZB01)
S-Video Input 5-Pin DIN (requires optional PN-ZB01)
Component Video BNC (Y, Cb/Pb,Cr/Pr) (requires optional PN-ZB01; component video and analog RGB are menu selectable).
HDMI Yes - compatible for both PC and AV components
Audio (AV) RCA pin (L/R) x 2 (requires optional PN-ZB01)
Computer Output DVI-D 24-pin (HDCP compatible, PC/AV signal; requires optional PN-ZB01)
Audio Line Output RCA pin (L/R) - selectable fixed or variable line output
Speaker Output 7W + 7W Stereo (6-ohms; requires optional PN-ZB01)
LAN Port RJ-45 (requires optional PN-ZB01)
RS-232C D-sub 9-pin
Power Output Connector Yes - 19V
Screen Adjustment Auto (Clock, Phase, H-POS/V-POS) / Manual
Gain Control Auto (Black level, Contrast) / Manual
Digital Scaling (expansion) Yes (VGA/SVGA/XGA/SXGA -> 1920 x 1080)
Digital Scaling (compression) 1920 x 1200, 1600 x 1200
Main User Adjustments Clock, Phase, H-POS/V-POS, Black level, Contrast; Color temp (15 steps preset + 5600K/9300K + User setting); Color mode (Standard/sRGB/Vivid); Gamma (1.8/2.0/2.2/2.4/User setting); Brightness, Volume, Audio (Treble/Bass/Balance), OSD-POS; Picture Adjustment (Tint, Color Intensity) [PC/AV mode]; R/G/B/Y/M/C independent adjustment [AV mode]
Real Time Clock Setting Yes
Scheduling Function Yes (time, day of the week)
All Reset Yes
Reset Screen/Picture/Audio adjustment setting, etc.
Adjustment Lock YES (incl. Power button)
Daisy Chain (DVI-D) Optional (PN-ZB01): max. 5 units (HDCP compliant)
Enlarge No
Frame Width Adjustment Yes
PinP / PbyP Yes (PinP: 12 steps)
Power On Delay 1-60 seconds (with 1 second interval)
Audio Input Change Yes
Picture Flip No
Self Adjust Yes (PC Analog Input)
Log Save / Output Yes
Temperature Control Yes
Hardware Diagnosis Yes
Monitor Control Software Support Yes
Overscan Setting (AV Input) Yes
Image Size Change Function Yes
Resolution Change Function (PC analog) Yes
RS-232C Communication Speed Change Yes
Conversion of Stereo Audio to Monaural Yes
Selection of Audio Input per image input Yes
Power Consumption 240W Max. (with optional PN-ZB01 attached)
Standby Power Consumption 1.0 W
Power Source 100 - 240V AC, 50/60 Hz
Operating Temperature 41 - 95deg.F (5 - 35deg.C)
Operating Humidity 20% to 80% RH (no condensation)
Storage Temperature -4 - 140deg. F (-20 - 60deg. C)
Regulatory Approvals UL 60950, FCC Class A
ENERGY STAR Qualified No
Mounting Configuration VESA (6 points), 200 mm (7-7/8") pitch, M6 screws or VESA (4 points), 200 mm (7-7/8") pitch, M6 screw
Remote Control Yes (wireless remote plus wired RJ-45 and RS-232C) (RJ-45 requires optional PN-ZB01)
Dimensions (W x H x D) 64.88" x 38.69" x 4.56" / 1647.95 x 982.73 x 115.82 mm
Weight 154 lbs / 69.85 kg
