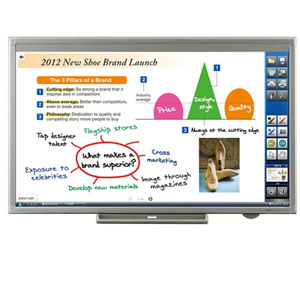

Sharp PN-L802B: Picture 1 regular

About Sharp PN-L802B

The Sharp PN-L802B 80" Class AQUOS BOARD LED Interactive Display System with full 1920 x 1080 HD resolution offers a high quality, high impact alternative to interactive projectors in many corporate, government and educational settings. Use it as a digital whiteboard - as a multipurpose business tool with the included Sharp Pen Software; use it as a data display for presentations, command and control and data viewing; use it as a remote collaboration tool to conduct webinars and video conferences; use it as an interactive signage monitor for way finding and other interactive applications. For versatility, performance and value, there's never been a better time to think big - and think Sharp.

Sharp PN-L802B Features

  • Spectacular 80" Class Screen Size - combined with Sharp UV2A photo alignment technology help create brilliant color images with maximum impact
  • Full Array LED Backlight - positions energy-efficient white LEDs evenly across the entire panel for uniform brightness, enhanced reliability and greater legibility of text
  • High Performance Optical Imaging Touch Technology - detects touch points with extremely high accuracy. Create work plans, highlight key topics, annotate files and more - and then share marked up documents or print hard copies for future reference
  • Intuitive Sharp Pen Software Application - provides new dimension in interactive control. Utilizing the tip of your finger or touch pen you can open and close documents, enlarge or shrink images, even make hard copy printouts
  • User-Friendly Tool Bar - lets you select a variety of drawing options with a simple tap of an icon
  • Dual Touch Interface - with two fingers, you can easily enlarge, reduce or rotate an image
  • Built-in Library of Backgrounds to use during presentations - includes calendar, to-do list, meeting log, graph paper and action plan
  • Brilliant, Big Screen Images for Digital Signage - for use in public areas like trade show exhibit halls, hotel lobbies and conference areas, airport corridors and retail locations
  • Engineered for 24/7 Commercial Use - provides you with the reliability and durability needed for your business
  • Streamlined Communications via Direct MFP Connection - By connecting the PN-L802B to a Sharp network-connected MFP (multifunction product), documents may be scanned from the MFP and directly imported to the pen software for display on the PN-L802B
  • Extensive Interface Capability - includes as standard interfaces HDMI: input D-Sub 15-pin RGB input, stereo audio input, stereo audio line-output and RS-232C input/output
  • Optional PC - attaches easily to rear of display for an all-in-one interactive display solution. PN-TPC2W7A: Pentium 2.6 GHz dual-core PC with Windows: 7 Pro

Sharp PN-L802B Specifications

Screen Size Class
80" (80" Diagonal)
Bezel Width
Horizontal Upper: 100 mm (3-15/16")
Horizontal Lower: 50 mm (1-31/32")
Vertical: 50 mm (1-31/32")
Native Display Resolution
1920 x 1080
Maximum Brightness
300 cd/m2
Landscape and Portrait Mode Operation
Landscape compatible
Certified for 24/7 Continuous Operation
Fanless Architecture
7W + 7W Stereo with built in speakers
LCD Type
Number of Colors
1.06 Billion
Contrast Ratio
Aspect Ratio
Viewing Angle (H/V)
160deg. H x 160deg. V (CR>/=10)
Active Screen Area
60-9/16" W x 34-1/16" H
Frame Rate
60 Hz
Pixel Pitch
0.923 mm H x 0.923 mm V
Video System
NTSC (3.58 MHz; 4.43 MHz), PAL, PAL60, SECAM
Computer Input - Video
Analog RGB (0.7 Vp-p) [75-ohm], Digital (conforms to DVI 1.0 standards)
Computer Input - Synchronization
Horizontal / Vertical separation (TTL: positive/negative), Sync on green, composite sync (TTL: positive/negative)
Computer Input - Plug & Play
Power Management
Response Time
6 ms (gray to gray, avg)
PC/AV Video Input
Analog mini D-sub 15-pin. DVI-D 24-pin HDCP Compatible (requires optional PN-ZB01); Analog 5-BNC (requires optional PN-ZB01; analog RGB and component are menu selectable).
PC/AV Audio Input
3.5 mm mini stereo jack
Video Input
Composite Video - BNC (requires optional PN-ZB01)
S-Video Input
5-Pin DIN (requires optional PN-ZB01)
Component Video
BNC (Y, Cb/Pb,Cr/Pr) (requires optional PN-ZB01; component video and analog RGB are menu selectable).
Yes - compatible for both PC and AV components
Audio (AV)
RCA pin (L/R) x 2 (requires optional PN-ZB01)
Computer Output
DVI-D 24-pin (HDCP compatible, PC/AV signal; requires optional PN-ZB01)
Audio Line Output
RCA pin (L/R) - selectable fixed or variable line output
Speaker Output
7W + 7W Stereo (6-ohms; requires optional PN-ZB01)
LAN Port
RJ-45 (requires optional PN-ZB01)
D-sub 9-pin
Power Output Connector
Yes - 19V
Screen Adjustment
Auto (Clock, Phase, H-POS/V-POS) / Manual
Gain Control
Auto (Black level, Contrast) / Manual
Digital Scaling (expansion)
Yes (VGA/SVGA/XGA/SXGA -> 1920 x 1080)
Digital Scaling (compression)
1920 x 1200, 1600 x 1200
Main User Adjustments
Clock, Phase, H-POS/V-POS, Black level, Contrast; Color temp (18 steps preset + 3200K/5600K + User setting); Color mode (Standard/sRGB/Vivid); Gamma (1.8/2.0/2.2/2.4/User setting); Brightness, Volume, Audio (Treble/Bass/Balance), OSD-POS; Picture Adjustment (Tint, Color Intensity) [PC/AV mode]; R/G/B/Y/M/C independent adjustment [AV mode]
Real Time Clock Setting
Scheduling Function
Yes (time, day of the week)
All Reset
Screen/Picture/Audio adjustment setting, etc.
Adjustment Lock
YES (incl. Power button)
Daisy Chain (DVI-D)
Optional (PN-ZB01): max. 5 units (HDCP compliant)
Frame Width Adjustment
PinP / PbyP
Yes (PinP: 12 steps)
Power On Delay
1-60 seconds (with 1 second interval)
Audio Input Change
Picture Flip
Self Adjust
Yes (PC Analog Input)
Log Save / Output
Temperature Control
Hardware Diagnosis
Monitor Control Software Support
Overscan Setting (AV Input)
Image Size Change Function
Resolution Change Function (PC analog)
RS-232C Communication Speed Change
Conversion of Stereo Audio to Monaural
Selection of Audio Input per image input
Power Consumption
260 W Max. (with optional PN-ZB01 attached)
Standby Power Consumption
1.0 W
Power Source
100 - 240V AC, 50/60 Hz
Operating Temperature
41 - 95deg.F (5 - 35deg.C)
Operating Humidity
20% to 80% RH (no condensation)
Storage Temperature
-4 - 140deg. F (-20 - 60deg. C)
Regulatory Approvals
UL 60950, FCC Class A
Mounting Configuration
VESA (6 points), 200 mm (7-7/8") pitch, M6 screws or VESA (4 points), 200 mm (7-7/8") pitch, M6 screw
Remote Control
Yes (wireless remote plus wired RJ-45 and RS-232C) (RJ-45 requires optional PN-ZB01)
Dimensions (W x H x D)
74" x 45.56" x 5.31" / 1879.6 x 1157.22 x 134.87 mm
225 lbs / 102.06 kg
Mfr #
