Sharp

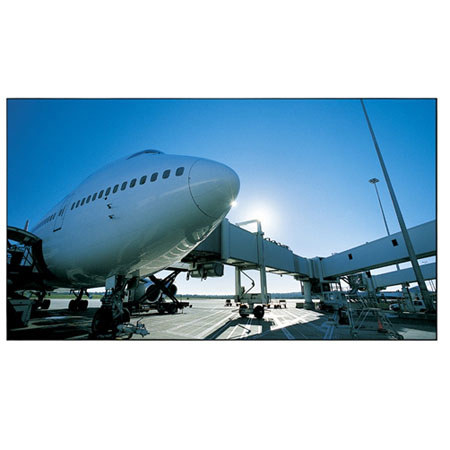

Sharp PN-V601 60" LCD Monitor, 700 cd/m2 Brightness, 2400:1 Contrast Ratio, 1366x768 Pixels Resolution

SKU: SHPPNV601 MFR: PN-V601
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable.
We Charge you when you place your order. Approximate arrival at Adorama 5 - 7 Business days from date of order.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

About the Sharp PN-V601

The Sharp PN-V601 60" LCD Monitor is a multi-screen video wall display that offers a resolution of 1366 x 768 pixels, brightness of 700 cd/m2 and a contrast ratio of 2400:1. Equipped with the Enlarge Display Mode and Frame Width Adjustment function, it can spread an image across up to 25 monitors (in a 5 x 5 configuration) thereby eliminating misalignment of objects and offering a high-quality magnified image. It is ideal for shopping malls, airports, museums and stadiums.

On installing the SDSS (Sharp Digital Signage Software), you can add still images, video, HTML and Flash files to the displayed content. It allows you to schedule the content via a user-friendly interface. The software also allows you to remotely program the display and control the power and the input. An LED backlight positioned behind the liquid crystal layers provides illumination and increases readability in low-light conditions.

With 6.5 mm wide borders between neighboring monitors, the PN-V601 LCD Monitor offers high-quality images even when used in video wall configuration. A remote control sensor box, fitted on one of the monitors, allows all monitors in the multi-screen configuration to be controlled by a single remote control unit. The brightness sensor automatically adjusts the brightness of the backlight to match the ambient lighting thereby saving energy.

The built-in 10 W per Channel Amplifier can be used with external stereo speakers. Being Energy Star qualified, the PN-V601 LCD Monitor has low power consumption (480 W). Equipped with ultra-slim bezel design, it is environment friendly and easy to install.

Sharp PN-V601 Includes

  • Sharp PN-V601 60" LCD Monitor
  • CD-ROM (Utility Disk for Windows)
  • 2 x Cable Clamp
  • Operation Manual
  • Power Cord
  • 4 x Protection Cover
  • Sharp 3 Year Limited Warranty

Sharp PN-V601 Features

  • 60" Class (60" Diagonal) Screen Size - with Sharp ASV LCD Technology provides exceptionally deep blacks and bright vivid colors with up to 700 cd/m2 brightness and 2400:1 contrast ratio
  • Full Array LED Backlight - gives the PN-V601 more uniform brightness than conventional CCFL backlighting. LED elements are positioned across the entire panel directly behind the liquid crystal layers, helping ensure beautiful uniform images
  • 1366 x 768 Resolution - from analog RGB, digital RGB and HDTV video sources. When used in a 3x3 video wall display, this Professional LCD Monitor provides over 4K x 2K total resolution (4098 x 2304 pixels) for ultra-high resolution / ultra-high impact images
  • Enlarge (Zoom) Display Mode - enables one image to be spread across up to 25 monitors (in up to a 5x5 configuration). The Frame Width Adjustment function eliminates misalignment and helps enhance the enlarged image in a multi-screen display
  • 24/7 Certified - for use in most commercial applications
  • Built-in 10 Watt per Channel Amplifier - for use with external stereo speakers
  • Extensive Interface Capability - Standard interfaces include HDMI input, D-Sub 15-pin RGB input, stereo audio input, stereo audio line-output and RS-232C input/output
  • Optional Input/Output Expansion Board (PN-ZB02) - adds DVI-D input/output, 5-BNC analog RGB input, component video input, S-video input, composite video input (BNC), stereo audio (RCA) input x 2, RJ-45 LAN display control and stereo speaker output (10W x 2)
  • Optional Mounting Hardware Bundles - includes all of the hardware needed for the most popular video wall configurations, for both wall mounting and free standing installations
  • Compatible with SDSS Sharp Digital Signage Software
  • ENERGY STAR Qualified - with exceptionally low power consumption

Sharp PN-V601 Specifications

Screen Size Class 60" Class (60" Diagonal)
Bezel Width 2.4 mm (right/bottom)
4.1 mm (left/top)
Native Display Resolution 1366 x 768
Maximum Brightness (average) 700 cd/m2
Landscape and Portrait Mode Operation Yes
Certified for 24/7 Continuous Operation Yes
Fanless Architecture No
Audio 10W + 10W Stereo with built in speakers
LCD Type ASV LCD
Number of Colors 16.77 Million
Contrast Ratio 2400:1
Aspect Ratio 16:9
Viewing Angle (H/V) 176deg. H x 176deg. V (CR>/=10)
Active Screen Area 52-5/16" W x 29-7/16" H
Frame Rate 60 Hz
Pixel Pitch 0.485 mm H x 0.485 V
Video System NTSC (3.58 MHz; 4.43 MHz), PAL, PAL60, SECAM
Computer Input - Video Analog RGB (0.7 Vp-p) [75-ohm], Digital (conforms to DVI 1.0 standards)
Computer Input - Synchronization Horizontal / Vertical separation (TTL: positive/negative), Sync on green, composite sync (TTL: positive/negative)
Computer Input - Plug & Play VESA DDC2B
Power Management VESA DPMS, DVI DMPM
Response Time 6 ms (gray to gray, avg)
PC/AV Video Input Analog mini D-sub 15-pin. DVI-D 24-pin HDCP Compatible (requires optional PN-ZB01); Analog 5-BNC (requires optional PN-ZB01; analog RGB and component are menu selectable).
PC/AV Audio Input 3.5 mm mini stereo jack
Video Input Composite Video - BNC (requires optional PN-ZB01)
S-Video Input 5-Pin DIN (requires optional PN-ZB01)
Component Video BNC (Y, Cb/Pb,Cr/Pr) (requires optional PN-ZB01; component video and analog RGB are menu selectable).
HDMI Yes - compatible for both PC and AV components
Audio (AV) RCA pin (L/R) x 2 (requires optional PN-ZB01)
Computer Output DVI-D 24-pin (HDCP compatible, PC/AV signal; requires optional PN-ZB01)
Audio Line Output RCA pin (L/R) - selectable fixed or variable line output
Speaker Output 10W + 10W Stereo (6-ohms; requires optional PN-ZB01)
LAN Port RJ-45 (requires optional PN-ZB01)
RS-232C D-sub 9-pin
Power Output Connector Yes - 19V
Screen Adjustment Auto (Clock, Phase, H-POS/V-POS) / Manual
Gain Control Auto (Black level, Contrast) / Manual
Digital Scaling (expansion) Yes (VGA/SVGA/XGA/SXGA -> 1366 x 768)
Digital Scaling (compression) 1920 x 1200, 1920 x 1080, 1600 x 1200, 1280 x 1024
Main User Adjustments Clock, Phase, H-POS/V-POS, Black level, Contrast; Color temp (15 steps preset + 5600K/9300K + User setting); Color mode (Standard/sRGB/Vivid); Gamma (1.8/2.0/2.2/2.4/User setting); Brightness, Volume, Audio (Treble/Bass/Balance), OSD-POS; Picture Adjustment (Tint, Color Intensity) [PC/AV mode]; R/G/B/Y/M/C independent adjustment [AV mode]
Scheduling Function Yes (time, day of the week)
All Reset Yes
Reset Screen/Picture/Audio adjustment setting, etc.
Adjustment Lock YES (incl. Power button)
Daisy Chain (DVI-D) Optional (PN-ZB01): max. 5 units (HDCP compliant)
Enlarge Yes (Up to 5x5)
Frame Width Adjustment Yes
PinP / PbyP Yes (PinP: 12 steps)
Power On Delay 1-60 seconds (with 1 second interval)
Audio Input Change Yes
Picture Flip No
Self Adjust Yes (PC Analog Input)
Log Save / Output Yes
Temperature Control Yes
Hardware Diagnosis Yes
Monitor Control Software Support Yes
Overscan Setting (AV Input) Yes
Image Size Change Function Yes
Resolution Change Function (PC analog) Yes
RS-232C Communication Speed Change Yes
Conversion of Stereo Audio to Monaural No
Selection of Audio Input per image input Yes
Internal / External Speaker Select No. External Only (with Optional PN-ZB02)
Power Consumption 480W
Standby Power Consumption 0.9W (standby mode in Standard)
Power Source 100 - 240V AC, 50/60 Hz
Tuner No
Operating Temperature 0deg. C - 40deg. C
Operating Humidity 20% to 80% RH (no condensation)
Storage Temperature -4 - 140deg. F (-20 - 60deg. C)
Regulatory Approvals UL 60950, FCC Class A
ENERGY STAR Qualified Yes
Mounting Configuration VESA (6 points), 200 mm (7-7/8") pitch, M6 screws or VESA (4 points), 200 mm (7-7/8") pitch, M6 screw
Dimensions (W x H x D) 52.63" x 5.88" x 29.69" / 1336.80 x 149.35 x 754.13 mm
Weight 110 lbs / 49.9 kg
