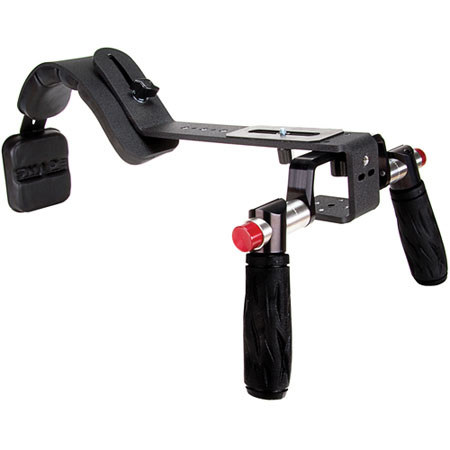

The Shape Spider I is a hand-held professional camera support device with an adjustable camera platform height (2-1/2" to 3-3/4") below the shoulder tip. Featuring the SP shoulder rig, Hand5 Quick Handle, and the Pad1 Back Pad, the Spider 1 secures the camera firmly, even with accessories, for mobile applications.
The Shoulder Rig is a core component of the camera support that easily adjusts to fit any body type. It uses a standard 1/4"-20 camera screw to attach the camera on the shoulder rig, and positions the camera with the help of a knob, which is accessible through a 3" slot on the camera platform. It also features a detachable telescopic support arm which can be positioned to fit any body type.
A 15mm rod system extends the reach of the Spider 1, and when not in use it can be removed using a 4mm hexagonal key. Using a quick-release plate that can be attached below, you can attach the Spider 1 to any standard tripod. Made of aluminum, the shoulder rig is solid and durable and holds your camera securely. The rig is powder-coat finished with a professional looking wrinkle finish.
Featuring 2 handles that can rotate individually (360deg.), the Hand5 Quick Handle, with a simple push of a button allows moving the arms, and releasing it secures the handles firmly in place. Weighing only 0.35 lb, the detachable back pad can be positioned easily (up and down by 1-1/4" (3cm) and left and right on 360deg.), and adds stability and comfort to the shoulder rig.
|Adjustable Camera Platform Height||2-1/2" to 3-3/4" (6.35 to 9.52 cm)|
|Quick Handle Rotation||360 Degree|
|Compatibility 1||Canon XH-A1
Canon 5D MARK I
Canon 5D MARK II
Canon EOS Rebel T1i
Canon VIXIA HF S11
Canon VIXIA HF S10
Canon VIXIA HF S100
Canon VIXIA HG21
Panasonic AG-HVX200A P2HD
Panasonic AG-HPX170 P2HD
Panasonic AG-HVX200AE PAL P2HD
|Compatibility 2||Panasonic AG-HMC40
Panasonic Lumix GH1
|Dimensions||Total height (with handles): 16" / 41 cm
Total maximum length (with the back pad): 21-3/8" / 54.3 cm
Camera platform width: 2" / 5 cm
Shoulder pad width: 3" / 7.6 cm
|Weight||2.80 lbs / 1.260 kg|
