Shure

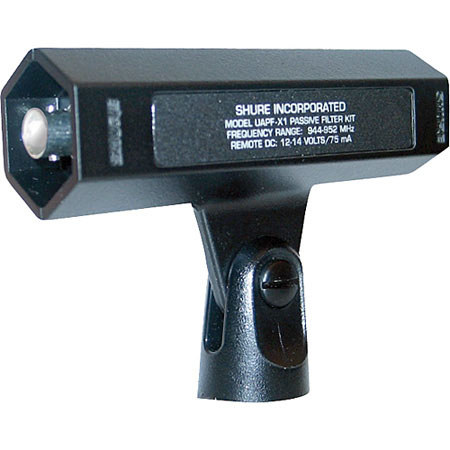

Shure UAPF-X1 UHF In-Line RF Filter, Passes 944-952 MHz

SKU: SHUAPFX1 MFR: UAPF-X1
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable.
We Charge you when you place your order. Approximate arrival at Adorama 1 - 2 Weeks from date of order.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$179.00
Free Shipping
Qty:

Add to Wishlist

About the Shure UAPF-X1

The Shure UAPF-X1 UHF In-Line RF Filter sits inline an antenna connection to improve RF (Radio Frequency) signal and filter extraneous RF outside 944 - 952 MHz. The filter is passive and features BNC connections at both ends.

Shure UAPF-X1 Includes

  • Shure UAPF-X1 UHF In-Line RF Filter
  • Mounting Base
  • Shure Warranty

Shure UAPF-X1 Features

  • Filters out extraneous RF signals
  • Mountable on supplied desk-/wall-mount or on a microphone stand
  • Extremely durable under the heaviest use
  • Shure quality, ruggedness and reliability

Shure UAPF-X1 Specifications

RF Bandwidth 3dB Bandwidth = 36MHz
20dB Bandwidth = 49MHz
Power Consumption Passively passes power (12VDC) 0.6 to 0.72 W for use with UA870X active antenna
Attenuation / Gain Minimum 30dB, Typical 32-36dB
Insertion Loss Typical 3.25dB
VSWR Typical 2.0dB
Swivel Adapter Positive action, break-resistant adjustable from 0 degrees to 90 degrees, with standard 5/8 in. -27 thread
Case Aluminum die-casting, black painted
Connectors Female, BNC-type
Dimensions With Mounting Stand: 2.625 x 1.250 x 4.40" (6.7 x 31.75 x 112mm)
Weight Without mounting stand: 9.8 oz (277.8 g)
With mounting stand: 14.8 oz (419.5 g)
