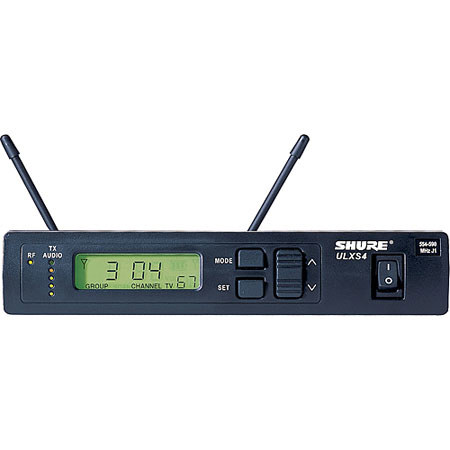

Shure ULXS4-M1 Standard Wireless Receiver with PS40 Power Supply, M1 Band/662-698 MHz

Shure ULXS4-M1: Picture 1 thumbnail Shure ULXS4-M1: Picture 2 thumbnail

About Shure ULXS4-M1

The Shure ULXS4-M1 Standard Wireless Receiver offers an exceptional value in both performance and price, for both working musicians and sound installers. The feature set of the versatile ULXS4-M1 receiver offers a direct path to full, clear audio signals, unencumbered and unattached.

Shure ULXS4-M1 Features

  • Power On Indicator
  • "RF" Diversity Signal Indicators
  • Transmitted (TX) Audio Indicators
  • Receiving Antenna Indicator
  • Group/Channel Displays
  • Transmitter Battery Life Indicator
  • PS40, in-line power supply with locking DC connector
  • MODE Button for Menu Display
  • SET Button for Saving Settings
  • Mic/Line level Switch
  • XLR and 1/4" outputs with level control
  • Space-saving 1/2 rack design

Shure ULXS4-M1 Specifications

Type of Receiver
ULXS4 Rack/Table-Top Mount UHF Standard Diversity Receiver
RF Carrier Frequency Range
M1 Band, 662 - 698 MHz
Frequency Response
25 Hz - 15 kHz, (±2 dB)
Signal-to-Noise Ratio
Greater Than 90 dB
Approx. Working Range
300 Feet (100m)
Type of Outputs
Balanced XLR - 22 Ohms, 1 = Ground, 2 = Hot, 3 = Cold Unbalanced 1/4" Phone Jack - 3k Ohms, Tip = Hot, Ring/Sleeve = Gnd
(Both Outputs Feature: Voltage, Current and Phantom Power Protection)
Headphone Monitoring
Power Requirements
14 - 18 Vdc (negative ground), 550 mA
External Power Supply - PS40, Included, Now with Locking DC Connector!
No. Of Channels
Over 1400 User Selectable Frequencies
Yes, Power On Indicator, Diversity Signal Indicators and Audio Peak Indicator, Channel, Group, Transmitter Low Battery Warning
Mounting Options
Rack/Table-Top Mount 1/2 Rack Space
Antenna Type
Remotable 1/2 Wave, Rear Mounted
Dimensions (HxWxD)
1.72 x 8.56 x 6.52" (43 x 217 x 165mm)
2 lbs. 5 oz. (1049 g)
