Shure WBH54 Supercardioid Headworn Condenser Microphone with TA4F (Mini 4-Pin) Connector, Black

Please note! This is a Special Order Item and is Non Cancelable and Non Returnable.
We Charge you when you place your order. Approximate arrival at Adorama 1 - 2 Weeks from date of order.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$374.00 List Price

Our Price

$299.00 $12 per week
Free Shipping
Add to Wishlist

Protect your investment

About the Shure WBH54

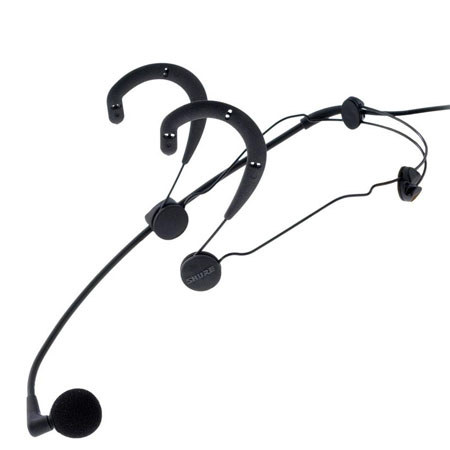

The Shure WBH54 Supercardioid Headworn Condenser Microphone (Black) is designed for applications where unconspicuous appearance and incredible sound quality are required. It's lightweight, adjustable, modular headband, flexible wireframe and soft earpieces provide a comfortable fit while still allowing the WMH54 to be positioned as close to the left or right corner of the mouth as possible, assuring maximum voice pickup. The WMH54 microphone itself features an extended frequency response and high SPL handling ability.

The WMH54 is uniquely designed to provide the sound quality and performance consistency required for environments such as professional theater, event production, trade shows or seminars - the best sound with minimal visibility.

Shure WBH54 Includes

  • Shure WBH54 Supercardioid Headworn Condenser Microphone
  • Plastic Carrying Case
  • 2 x High Boost Equalization Caps
  • 2 x Mild Boost Equalization Caps
  • 2 x Foam Windscreens
  • Swiveling Lapel Clip
  • Shure Warranty

Shure WBH54 Features

  • Comfortable, latex-free Dynaflex earforms that hide behind the ears
  • Thin, non-reflective wireframe that is easily hidden underneath hair
  • Ultra-thin detachable microphone boom mount for right or left positioning
  • Interchangeable frequency response caps (mild or high, two pieces each)
  • Clothing clip for securing cable
  • Corrosion resistant
  • Easy to clean
  • Durable carrying case for protective storage
  • TA4F (Mini 4-Pin) connector for use with wireless systems

Shure WBH54 Specifications

Transducer Electret Bias Condenser
Polar Pattern Supercardioid
Frequency Response 50Hz to 20KHz
Dynamic Range (Typical) 110 dB (max. SPL with 1k load, minus typical A-wt. noise)
Signal-to-Noise Ratio 55 dB at 94 dB SPL
Maximum Sound Pressure Level 149 dBSPL at 1% THD/1 kOhm load
Preamp Output Impedance 136 ohms
Current Drain 4.6 mA (preamp and microphone)
Output Noise 39.0 dB typical; 42.0 dB maximum
Power Requirements Phantom power; 11 to 52 Vdc positive on pins 2 and 3, return on pin 1 (ground)
Output Impedance 150 Ohms
Output Connectors 4-Pin, Tini Q-G Connector
Dimensions 1.5 m (4.92 ft), small-diameter, shielded, with mini 4-pin connector (TA4F)
Weight 135.35 g (4.75 oz.) microphone and in-line preamp
