Shure WL184 Supercardioid Lavalier Microphone, 4' Cable, TA4-F 4-Pin Connector

Shure
SKU: SHWL184 MFR: WL184

List Price: $133.00

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 3 Year Extended Warranty + $14.95
  • New Leaf 3 Year Drops & Spills Extra Protection + $32.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $75.95

Our Price

$114.50
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

Special Offers

Product Highlights

  • Hardwired cable terminates to TA4-female connection
  • Compatible w Shure wireless microphone transmitters

About Shure WL184

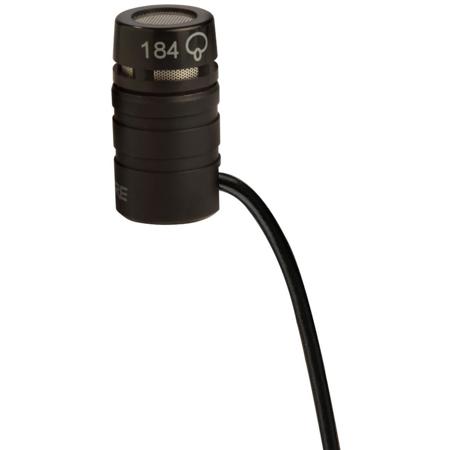

The Shure WL184 is a supercardioid subminiature lavalier microphone with signal characteristics ideal for general sound reinforcement applications. The super-cardioid pick up pattern provides adequate rejection of off-axis ambient signal that can cause noise and feedback. The low-profile subminiature design is ideal for applications where the microphone must be concealed. The hardwired 4ft (1.2m) cable terminates to a 4-pin TA4-female connector which is compatible with Shure wireless transmitters and power supplies.

Shure WL184 Features

  • Subminiature Profile: The miniature capsule is easy to conceal during video, broadcast, stage and sound reinforcement applications.
  • Super-Cardioid Polar Pattern: The super-cardioid polar pattern effectively minimizes noise and ambiance at the off-axis sections of the capsule, reducing noise and feedback.
  • Full Signal Reproduction: A wide frequency response and high SPL rating results in full, clear audio reproduction for speech.
  • TA4-Female Connection: The hardwired cable terminates to a TA4-female connection, compatible with Shure wireless microphone transmitters.

Shure WL184 Specifications

Transducer
Electret Condenser
Polar Pattern
Super-Cardioid
Frequency Response
50 to 17000 Hz
Dynamic Range (Typical)
102.5 dB
Sensitivity (1 Pa = 94 dB SPL)
-44.5 dBV/Pa
Signal-to-Noise Ratio
Output Noise: 27.0 dB SPL
Maximum Input Sound Level
129.5 dB SPL
Power Requirements
Regulated nominal +5 Vdc (1.5 Vdc to 10 Vdc) provided at microphone connector pin 2 relative to pin 1 of a Shure wireless microphone transmitter.
Output Impedance
1800 ohms
Output Connectors
TA4-Female
Pad
No
Low Frequency Roll-Off
No
Cable Length
4 feet (1.2m)
Mfr #
WL184
SKU
SHWL184
