Swarovski Optik

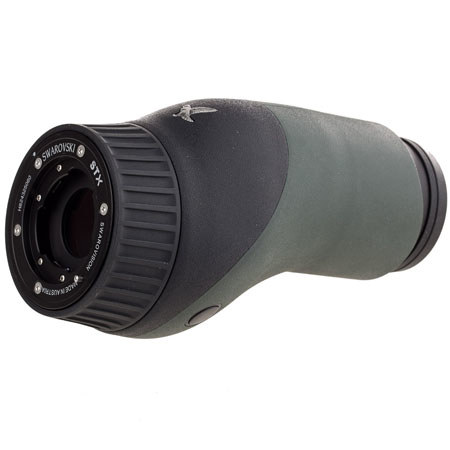

Swarovski Optik STX Spotting Scope Modular Zoom Eyepiece, Straight Viewing

SKU: SI49902 MFR: 49902
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Special Price

$2,069.00

Regular Price $2,299.00

Free Shipping
Qty:

Add to Wishlist In Stock

About this item

The Swarovski Optik STX Spotting Scope Modular Zoom Eyepiece (Straight Viewing) is a wide angle eyepiece specifically engineered for the STX spotting scope series. The straight-view configuration is well-suited for dig scoping and long-duration observation with your premium Swarovski optics. This eyepiece is compatible with the STX-65, STX-85 and STX-95 objective assemblies. Mounted with either the STX-65 or STX-85 objective assembly, this zoom eyepiece has a magnification range of 25-60xs; when mounted on the STX-95 model, the magnification range is 30-70x.

This configuration of the Modular Zoom Eyepiece seamlessly integrates with the DCB II and TLS APO dig scoping adapters. These optional accessories from Swarovski allow operators to transform their STX spotting scope into a formidable digital imaging platform. The accessory adapters enable integration with point-and-shoot, mirrorless and DSLR camera systems and feature the build-quality and thoughtful engineering you expect from Swarovski. Now your superior optics can be used to capture high-definition stills and video of that rare bird or butterfly in your sight.

Ergonomic handling and user-friendly functionality makes the STX eyepiece an observer's delight. The eyepiece quickly attaches/detaches from the objective assembly's bayonet mount, making the scope easy to disassemble, transport and store. Swarovski engineered the straight-view eyepiece's focus dial to precisely align with the zoom dial on the objective assembly, enabling one-handed adjustments to field of view and zoom. This feature is especially useful when tracking an object, requiring one hand to guide the tripod head. This eyepiece's generously wide viewing angle, extra-long eye relief and click-stop twist-in eyecup makes using your STX spotting scope a world-class glassing experience.

Key Features

  • Optical Performance: 25-60x zoom range (with STX-65, STX-85)
  • Optical Performance: 30-70x zoom range (with STX-95 only)
  • Optical Performance: Apparent angle of view: 71-57deg. (apparent)
  • Optical Performance: Actual angle of view: 2.37-1.3deg. (STX-65, STX-85), 1.98-1.09deg. (STX-95 only)
  • Optical Performance: SWAROCLEAN non-stick coating on ocular surface
  • Optical Performance: Phase-corrected roof prisms
  • Construction: Lightweight and rugged housing
  • Construction: Supple yet durable rubber armor
  • Construction: Nitrogen-purged interior for waterproof/fogproof performance
  • Construction: -13 to 131deg.F (-25 to 55deg.C) operating temperature
  • Construction: Submersible to 13 ft (4 m)
  • Functionality: Extra-long 20mm eye relief
  • Functionality: Click-stop twist-in (and removable) eyecup
  • Functionality: One-handed operation via side-by-side zoom and focus dials
  • Functionality: Grooved zoom dial
  • Functionality: Mounts seamlessly with STX objective assembly

Technical Specs

Magnification STX-65, STX-85: 25.0 - 60.0x
STX-95: 30.0 - 70.0x
Light Transmission 86%
Field of View STX-65, STX-85: 124 - 68 ft (37.8 - 20.7 m) at 1000 yd
STX-95: 104 - 57 ft (31.7 - 17.4 m) at 1000 yd
Angle of View Actual: 2.37 - 1.3deg. (STX-65, STX-85), 1.98 - 1.09deg. (STX-95)
Apparent: 71 - 57deg.
Minimum Focus Distance STX-65: 6.9 ft (2.1 m)
STX-85: 11.8 ft (3.6 m)
STX-95: 15.7 ft (4.8 m)
Exit Pupil Diameter STX-65: 2.6 - 1.1 mm
STX-85: 3.4 - 1.4 mm
STX-95: 3.2 - 1.4 mm
Eye Relief 20 mm
Diopter Correction Greater than 5
Weatherproofing Submersible to 13 ft (4 m)
Operating Temperature -13 to 131deg.F (-25 to 55deg.C)
Storage Temperature -22 to 158deg.F (-30 to 70deg.C)
