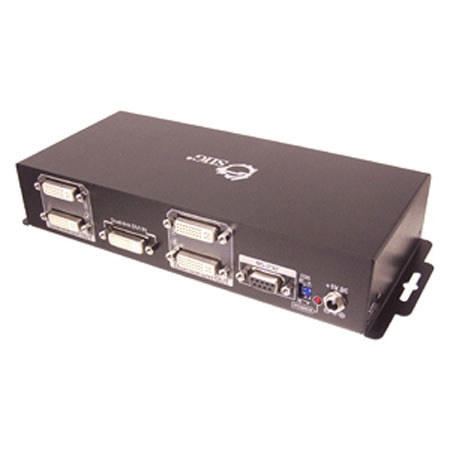

SIIG 1x4 Dual-Link DVI Splitter

SKU: SICED20511S1 MFR: CED20511S1
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

Free Shipping

Add to Wishlist

About this item

The SIIG 1 x 4 Dual-Link DVI Splitter broadcasts Dual-Link DVI signals from one source to four displays. This cost effective DVI Splitter is compatible with any computer system that features a DVI output, supports wide frequency range up to 300 MHz and comes with metal housing for excellent RF shielding and efficient cooling for dependable signal transmission and long life. The 1 x 4 Dual-Link DVI Splitter is the most cost effective and advanced DVI splitter solution available, enabling you to improve, enhance and satisfy your video experience.

What's Included With This Item

  • SIIG 1 x 4 Dual-Link DVI Splitter
  • Power Adapter (5V, 4A Output)
  • Screw Kit
  • User's Manual
  • SIIG 3 Year Limited Warranty

Key Features

  • Replicates and distributes content from 1 Dual-Link DVI source to 4 displays
  • Wall-mount housing design
  • Metal housing for better RF shielding

Technical Specs

Wide Frequency Range Up To 300MHz
Resolution No Limitation. Supports All Resolutions
Edid Learning Dip Switches Yes
Input TMDS Signal 1.2V (Peak To Peak)
Input DDC Signal 5V (Peak To Peak, Total)
Compliant With DVI 1.1 Yes
HDCP Compliant No
Audio Support No
Supports 3D Displays Yes
Future Firmware Via USB Port
Power Adapter 5V/4A DC
Connectors Input: 1 x DVI (Dual-Link), 29-Pin, female
Output: 9 x DVI (Dual-Link), 29-Pin, female
Certifications/Standards FCC, CE, RoHS
Dimensions (W x H x D) 8.60" x 3.92" x 1.70" / 218.44 x 99.57 x 43.18 mm
Weight 1.61 lbs / 0.73 kg
