SIIG

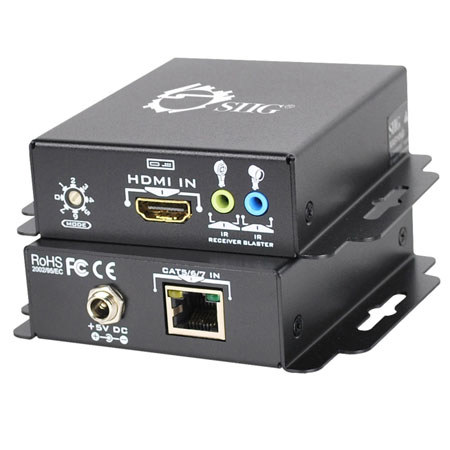

SIIG HDMI Extender Over Single CAT5/6 with 3DTV & Bi-Directional IR Support, Extends up to 200 Feet, Black

SKU: SICEH20M11S1 MFR: CE-H20M11-S1
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$249.95
Free Shipping
Qty:
Add to Wishlist In Stock

About this item

The SIIG HDMI Extender over Single CAT5/6 with 3DTV & Bi-Directional IR Support is designed to boost audio/video transmission from HDMI source to HDMI display device at greater distance over CAT5e/6 cable. It extends transmission distances of up to 60m (200ft) @1080i, 40m (130ft) @1080p with 24-bit and 20m (65ft) @ 1080p with 36-bit HDTV formats.

In addition, this HDMI extender features adjustable 8-level equalization control to minimize cable skew, pure unaltered uncompressed 7.1ch or stereo digital audio and HDMI through Cat5/5e/6 cable transmission and DTS-HD Master Audio and Dolby TrueHD Audio support. The HDMI Extender over Single CAT5/6 with 3DTV & Bi-Directional IR Support is equipped with bi-directional IR pass-through path and supports full frequency IR signal ranging from 20kHz to 60kHz.

It allow users to boost IR control distance up to 100m (330 ft) and makes IR control possible through the single Cat.5/5e/6 cable. This HDMI Extender solution enables you to transmit high quality video and audio from DVD players, Blu-ray Disc player, PS3, PC and many more to a distant display device. The HDMI Extender over Single CAT5/6 with 3DTV & Bi-Directional IR Support is fully compliant with industry standards including HDMI 1.4a, HDCP 1.1, RoHS.

What's Included With This Item

  • SIIG HDMI Extender over Single CAT5/6 with 3DTV Support (TX & RX units)
  • Power Adapter
  • 2x IR Cable Modules (IR blaster & IR receiver)
  • Installation Kit
  • User's Manual
  • SIIG 3 Year Limited Warranty

Key Features

  • Extends HDMI signals up to 200ft over one CAT5/5e/6 cable
  • Supports HDMI with 3D TV
  • Supports Bi-Directional IR pass-through
  • Supports DTS-HD and Dolby True HD high bit rate audio support
  • HDMI and HDCP compliant
  • 8-level equalization control to adjust cable skew
  • Supports full frequency IR signal from 20KHz to 60KHz
  • Allows cascading
  • Metal housing with wall mount design

Technical Specs

Video bandwidth Single-link 225MHz (6.75Gb/s)
Input TMDS signal 1.2V (peak-to-peak)
Input DDC signal 5V (peak-to-peak, TTL)
Power consumption 3 Watts
Transmitting unit-Input 1x HDMI (Type A, 19-pin female)
1x 3.5mm jack
Transmitting unit-Output 1x RJ45 (WE/SS 8P8C with 2 LED indicators)
1x 3.5mm jack
Receiving unit-Input 1x RJ45 (WE/SS 8P8C with 2 LED indicators)
1x 3.5mm jack
Receiving unit-Output 1x HDMI (Type A, 19-pin female)
1x 3.5mm jack
Transmission 720p/1080i (HD @ 24-bit): up to 200ft (CAT6)
1080p (full HD @ 24-bit): up to 130ft (CAT6)
1080p (full HD @ 36-bit): up to 65ft (CAT6)
Operating temperature 0 to 40 degrees C (32 to 104 degrees F)
Storage temperature -20 to 60 degrees C (-4 to 140 degrees F)
Relative humidity 20% to 90% RH (non-condensing)
Power supply Input: 100-240VAC
Output: 5V DC, 2A
Compliance HDMI 1.4a
HDCP 1.1
Certifications FCC
CE
WEEE
RoHS
Dimensions (W x H x D) Transmitting unit: 3.75 x 4.15 x 1.10" / 9.52 x 10.54 x 2.79 cm
Receiving unit: 3.75 x 4.15 x 1.10" / 9.52 x 10.54 x 2.79 cm
Weight 0.55 lbs / 0.24kg
