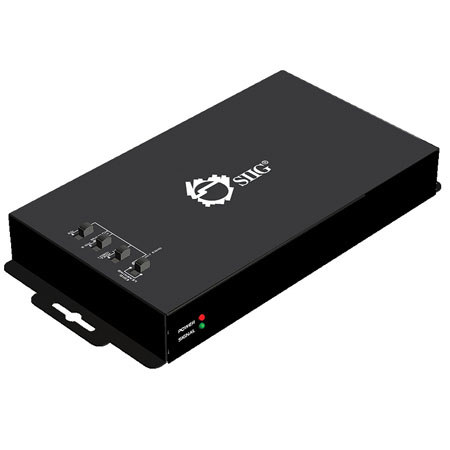

SIIG 1x4 HDMI CAT5e Distribution Amplifier with Local Loop-Out and 3D Support

SKU: SICEH21211S1 MFR: CEH21211S1
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$442.49 $18 per week
Free Expedited Shipping
Add to Wishlist

About this item

The SIIG 1 x 4 HDMI 1.3 CAT5e Distribution Amplifier with 3D TV Support easily distributes video and audio signals from one HDMI source to multiple HDMI displays over economical CAT5e/6 cables. It will broadcast the same content to 4 remote displays, allows cascading and regenerates the HDMI signal. It features default HDMI EDID and EDID learning capability, along with uncompressed 7.1 digital audio signals.

Additional features include display resolution up to 1080p, transmissions distance up to 200 ft @ 720p/1080i (CAT6) and video bandwidth up to 6.75 Gb/s. This excellent HDMI distribution amplifier is the smart solution enabling you to distribute one HDMI signal to multiple HDMI displays while maintaining signal strength and superior video quality to satisfy your audio and video enjoyment.

What's Included With This Item

  • SIIG 1 x 4 HDMI CAT5e Distribution Amplifier
  • Power Adapter
  • Screw Kit
  • User's Manual
  • SIIG 3 Year Limited Warranty

Key Features

  • Supports HDMI Deep Color & full 3D
  • HDMI local display output for monitoring
  • Supports default HDMI EDID and EDID learning ability
  • Allows cascading
  • Metal housing for better RF shielding
  • 1U rack-mounting mechanism built-in

Technical Specs

HDMI and HDCP compliant Yes
HDMI signal Regeneration Yes
HDMI Deep Color & full 3D Support Yes
Cascading to add more displays Yes
Video bandwidth Single-link 225MHz (6.75Gb/s)
Built-in equalization Yes
Resolution support 480i / 480p / 720p / 1080i / 1080p60 up to 36-bit color
Transmission over UTP (24-bit color) Full HD (1080p): CAT5e: 130ft (40m) / CAT6: 165ft (50m)
HD (720p/1080i): CAT5e: 165ft (50m) / CAT6: 200ft (60m)
Input TMDS signal 1.2V (peak to peak)
Input DDC signal 5V (peak to peak, total)
Connectors Input: 1x HDMI (Type-A, female)
Output: 1x HDMI (Type-A, female), 4x RJ-45
Certifications/Standards FCC, CE, RoHS
Power consumption 13 Watts (max)
Dimensions (W x H x D) 7.64" x 4.33" x 1.06" / 194.06 x 109.98 x 26.92 mm
Weight 1.30 lbs / 0.59 kg
