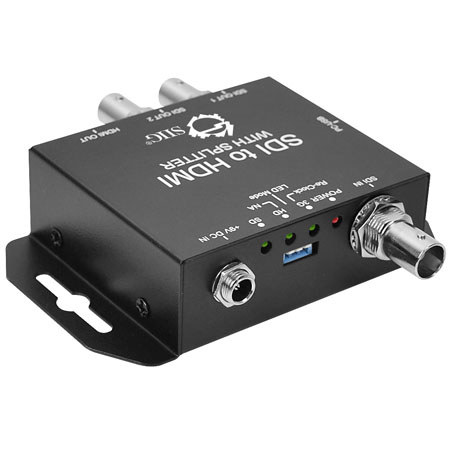

SIIG 3G-SDI to HDMI Converter

Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500

Our Price

$344.49 $14 per week
Free Expedited Shipping
Add to Wishlist

About this item

The SIIG 3G-SDI to HDMI Converter broadcasts 3G-SDI signals from one SDI source to two SDI and one HDMI outputs. This 3G-SDI to HDMI converter operates at 270 Mb/s, 1.485 Gb/s and 2.97 Gb/s data transfer rates and supports HD formats up to 1080p/60 and 525i & 625i SD formats. The metal housing provides excellent RF shielding for error free data transmission plus efficient heat dissipation for reliability and long life. This 3G-SDI to HDMI converter is the easiest and most efficient 3D-SDI converter solution for transmission of digital video and audio signals from a single SDI source to multiple high definition displays making video and audio more affordable and accessible.

What's Included With This Item

  • SIIG 3G-SDI to HDMI Converter
  • Power Adapter
  • User's Manual
  • SIIG 3 Year Limited Warranty

Key Features

  • Replicates and distributes content from one 3G-SDI source to two 3G-SDI and one HDMI outputs
  • Operates at 270Mb/s, 1.485Gb/s and 2.97Gb/s data rates
  • Metal housing and wall-mountable
  • Supports 525i & 625i SD formats
  • Receives HD at 1.485Gb/s over 230M of 75 Ohm coaxial cable (RG6 or equivalent)
  • Supports up to 8 channels of S/PDIF or I2S serial digital audio output at 48kHz sampling
  • Supports IEC 13818-1 transport streams over an Asynchronous Serial Interface (ASI)
  • Auxiliary data extraction via SPI interface
  • Metal housing for better RF shielding
  • HDMI 1.2 and DVI 1.0 compliant

Technical Specs

Supported HD formats 720p - 24, 25, 30, 50 & 60
1080i - 50, 60
1080p - 24, 25, 30, 50 & 60
Interfaces/Ports Input: 1, BNC (SDI), 3G, 75ohm, inter-locked socket
Output: 2, BNC (SDI), 3G, 75 ohm, inter-locked socket
Output: 1, 19-pin, HDMI, Female
Power adapter Input: 100-240 V, 50/60 Hz, 0.3A
Output: 12V/1A
Certifications/Standards FCC, RoHS
Operating temperature 32 to 114 deg.F
Storage temperature -4 to 140 deg.F
Storage humidity 10 % to 90% RH
Dimensions (W x H x D) 4.10" x 1.02" x 4.10" / 104.14 x 25.91 x 104.14 mm
Weight 8 oz / 226.80 g
