SIIG

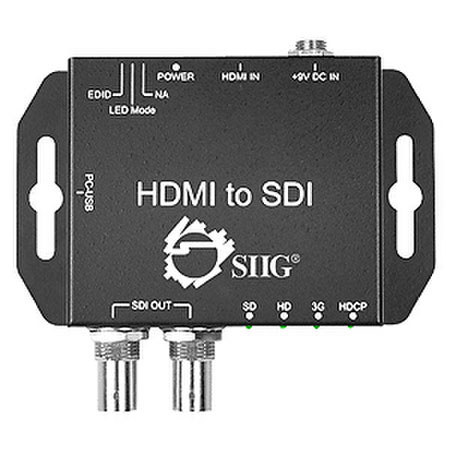

SIIG HDMI to 3G-SDI Converter

SKU: SICESD0311S1 MFR: CESD0311S1
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$489.89
Free Shipping
Qty:

Add to Wishlist

About this item

The SIIG HDMI to 3G-SDI Converter broadcasts HDMI signals from one HDMI source to two 3G-SDI outputs. This HDMI to 3G-SDI converter supports link speeds up to 2.25 Gb/s at a clock rate of 225 MHz, HD formats up to 1080p/24, 25, 50 & 60 as well as 525i & 625i SD formats.

This converter's metal housing provides superior RF shielding for error free data transmission plus efficient heat dissipation for reliable performance and long life. This HDMI to 3G-SDI Converter is the easiest and most efficient solution for transmission of digital video and audio signals from a single HDMI source to multiple high definition displays making video and audio more affordable and accessible.

What's Included With This Item

  • SIIG HDMI to 3G-SDI Converter
  • Power Adapter
  • User's Manual
  • 3 Year Limited Warranty

Key Features

  • HDMI 1.3a and DVI 1.0 compliant
  • Supports link speeds up to 2.25Gb/s (link clock rate of 225MHz)
  • Replicates and distributes content from 1 HDMI source to 2 3G-SDI outputs
  • Supports link speeds up to 2.25Gb/s
  • Metal housing
  • Wall-mountable
  • Integrated cable driver for long distance transmission over 75 Ohm coaxial cable at 270Mb/s, 1.485Gb/s & 2.97Gb/s
  • Supports up to 8 channels of S/PDIF or I2S serial digital audio input at 48kHz sampling
  • IEC 13818-1 transport interface (TSIF) for transmission of compressed A/V transport stream
  • Auxiliary data extraction via SPI interface
  • Metal housing for better RF shielding

Technical Specs

Supported HD formats 720p - 24, 25, 30, 50 & 60
1080i - 50, 60
1080p - 24, 25, 30, 50 &60
Interfaces/Ports Input: 1, 19-pin, HDMI, Female
Output: 2, BNC (SDI), 3G, 75 ohm, inter-locked socket
Power adapter Input: 100-240 V, 50/60 Hz, 0.3A
Output: 12V/1A
Operating temperature 32 to 114 deg.F
Storage temperature -4 to 140 deg.F
Storage humidity 10% to 90% RH
Certifications/Standards FCC, RoHS
Dimensions (W x H x D) 4.10" x 1.1" x 1.10" / 104.14 x 27.94 x 27.94 mm
Weight 8 oz / 226.80 g
