SIIG

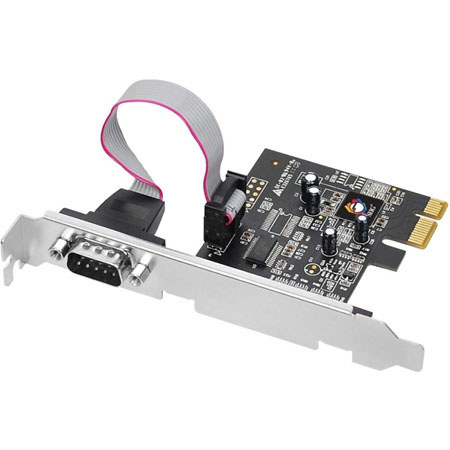

SIIG DP 1-Port RS232 Serial PCIe with 16950 UART

SKU: SIJJE01111S1 MFR: JJE01111S1
Ships in 1-2 business days
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$34.49
Free Shipping
Qty:
Add to Wishlist In Stock

About this item

The SIIG DP 1-Port RS232 Serial PCIe with 16950 UART is designed to add one 9-pin RS232 serial port to your PCI Express enabled desktop computer. This PCI Express serial adapter features one high-speed 16950 UART serial port with 128-byte FIFO buffer to support data transfer rates up to 230 Kb/s. Additionally, this dual profile serial adapter works in PCI Express slots of different lane widths and with the included spare low-profile bracket, the adapter can be installed into either standard height or low profile system chassis. It is the smart and cost effective solution to add one RS232 serial port for additional serial port device connections.

The DP 1-Port RS232 Serial PCIe with 16950 UART is fully compliant with PCI Express Base Specification, Revision 1.1, is FCC and CE approved and is RoHS compliant. It is fully compatible with a wide variety of Windows operating systems.

What's Included With This Item

  • SIIG DP 1-Port RS232 Serial PCIe
  • Spare Low Profile Bracket
  • Driver CD
  • User's Manual
  • SIIG 2 Years Limited Warranty

Key Features

  • Installs in any available PCI Express slot
  • One high-speed 16950 UART serial port (9-pin) with 128-byte FIFO buffers
  • Installs in standard height or low profile chassis with included brackets
  • Compliant with PCI Express Base Specification, Revision 1.1
  • Built-in 128-byte FIFO buffers dramatically increase data transmit/receive speed under Windows multitasking environment

Technical Specs

Chipset Oxford OXPCIe952
Data Transfer Rate Up to 230Kb/s
Interfaces/Ports 1, 9-Pin, DB9, Serial, Male, External
Certifications/Standards FCC, CE, RoHS
Dimensions (H x W x D) 4.72" x 2.9" x 0.71" / 119.89 x 73.66 x 18.03 mm (with standard height bracket installed)
Weight 2 oz / 56.70 g
