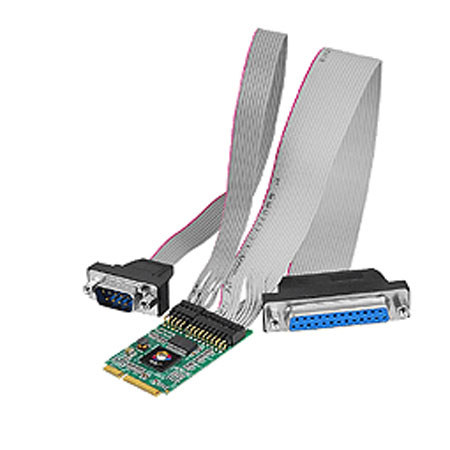

SIIG 1S1P Mini PCIe with 16950 UART

SKU: SIJJE10111S1 MFR: JJE10111S1
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

Free Shipping

Add to Wishlist

About this item

The SIIG 1S1P Mini PCIe with 16950 UART is designed to add one 9-pin RS232 serial port and one DB25 parallel port to your PCIe-enabled desktop computer. It features one high speed 16950 UART serial port supporting up to 460 Kb/s with deep 128-byte FIFO per transmitter & receiver and one parallel port supporting ECP, EPP and SPP parallel port modes. It can be installed in any available Mini PCI Express slot and is the perfect solution enabling you to connect a wide variety of serial and parallel devices to your desktop computer.

The 1S1P Mini PCIe with 16950 UART is compliant with PCI Express Base Specification, FCC & CE regulatory approved and RoHS-compliant. It is also fully compatible with a wide variety of Windows operating systems.

What's Included With This Item

  • SIIG 1S1P Mini PCIe
  • DB9 Serial to Board Adapter Cable
  • DB25 Parallel to Board Adapter Cable
  • Driver CD
  • User's Manual
  • SIIG 2 Years Limited Warranty

Key Features

  • Adds a high-speed RS-232 serial and an ECP/EPP parallel port
  • Compliant with PCI Express Base Specification, Revision 1.1a
  • 128-byte deep FIFO per transmitter and receiver
  • IEEE 1284-compliant SPP/EPP/ECP parallel port
  • Automated in-band software flow control using programmable Xon/Xoff in both directions
  • Automated out-of-band hardware flow control using Tx/Rx/RTS/CTS/DSR/DTR/DCD/RI/GND
  • Native PCI Express single chip

Technical Specs

Chipset PLX OXPCIe952
Ports 1, 9-pin, RS232, Serial
1, 25-pin, DB25, Parallel
Certificate/Standards FCC, CE, RoHS
Dimensions (W x H x D) 1.97" x 1.18" x 0.16" / 50.04 x 29.97 x 4.06 mm
Weight 0.02 lbs / 0.59 g
