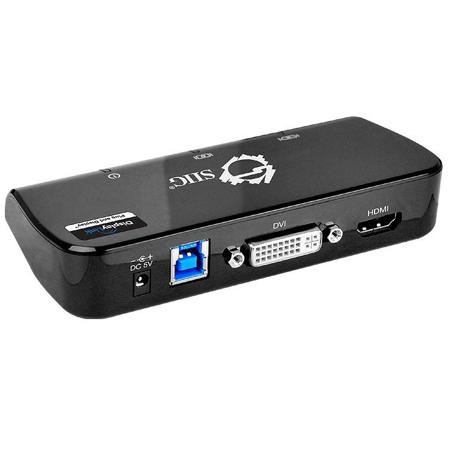

SIIG USB 3.0 to HDMI/DVI Dual Head Display Adapter
See all SIIG items

SIIG USB 3.0 to HDMI/DVI Dual Head Display Adapter

SKU: SIJUH20211S1
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

SIIG USB 3.0 to HDMI/DVI Dual Head Display Adapter Specifications

  • Chipset

    DisplayLink DL-3900

  • Display modes

    Primary, Extended & Mirror

  • Operating power consumption

    460mA

  • Video Memory

    1GB DDR2 SDRAM

  • Resolution (max)

    4:3 ratio: 1600 x 1200
    16:9 ratio: 2048 x 1152
    16:10 ratio: 1920 x 1200

  • Interfaces/Ports

    1x 9-Pin, Type B, USB 3.0, Female, Input
    1x 25-Pin, DVI-I, Female, Output
    1x 19-Pin, HDMI, Female, Output

  • USB 3.0 Cable

    USB 3.0 Type A (Male) to Type B (Male)

  • USB 3.0 Cable Length

    3' / 0.9m

  • Operating temperature

    50 to 104 degrees F

  • Storage temperature

    14 to 176 degree F

  • Relative Humidity

    < 85% non-condensing

  • Certifications/Standards

    FCC, CE, RoHS

  • System Requirement

    Desktop or notebook computer with an available USB 3.0 port
    Windows 8 (32-/64-bit) / 7 (32-/64-bit) / Vista (32-/64-bit) / XP (32-bit)

  • Dimensions (WxHxD)

    4.92x2.56x0.94" / 12.49x6.50x2.38cm

  • Weight

    0.22lbs / 0.09kg

About SIIG USB 3.0 to HDMI/DVI Dual Head Display Adapter

The SIIG USB 3.0 to HDMI/DVI Dual Head Display Adapter allows you to quickly and easily add dual display (HDMI/DVI) to your USB 3.0 enabled computer. It supports high resolutions of up to 2048 x 1152, standard and widescreen (16:9 & 16:10) aspect ratio and multiple display modes including primary, extended & mirrored.

It delivers high resolution and high bandwidth videos/images utilizing the 5Gb/s data speed of SuperSpeed USB 3.0 technology to significantly improve your system's display capacity for your audio and video enjoyment. The USB 3.0 to HDMI/DVI Dual Head Display Adapter is compliant with USB 3.0 specification, FCC and CE regulatory approved and RoHS-compliant. It is fully compatible with a wide variety of Windows operating systems.

SIIG USB 3.0 to HDMI/DVI Dual Head Display Adapter Features

  • Add HDMI and DVI displays to your USB 3.0 enabled system
  • High resolution support up to 2048 x 1152
  • Supports 5.1 channel audio (HDMI only)
  • Compliant with Universal Serial Bus 3.0 Specification
  • HDMI and DVI supporting 1080p and up to 2048 x 1152 resolutions
  • Supports standard and widescreen (16:9 & 16:10) aspect ratio
  • Bus powered - no external power adapter required

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Add HDMI and DVI displays to your USB 3.0 enabled system
  • High resolution support up to 2048 x 1152
  • Supports 5.1 channel audio (HDMI only)
  • HDMI and DVI supporting 1080p and up to 2048 x 1152 resolutions
  • Supports standard and widescreen (16
  • Bus powered - no external power adapter required

What's in the box:

  • SIIG USB 3.0 to HDMI/DVI Dual Head Display Adapter
  • USB 3.0 Cable (Type A/B)
  • Software CD
  • User's Manual
  • SIIG 3 Year Limited Warranty
