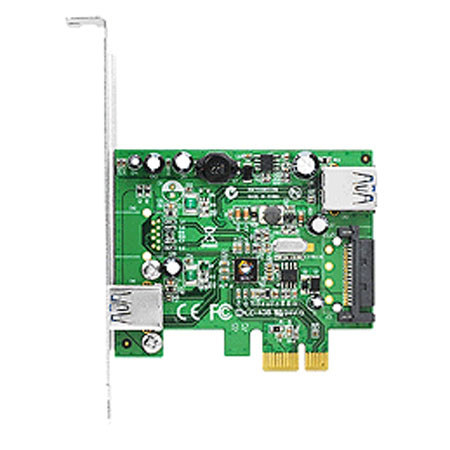

SIIG DP 2-Port USB 3.0 PCIe i/e Adapter, Data Rate 5GB/s

SKU: SIJUP20712S1 MFR: JU-P20712-S1
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price


Add to Wishlist

About this item

The SIIG DP 2-Port USB 3.0 PCIe i/e Adapter instantly adds two additional USB 3.0 ports (one internal and one external) to your PCIe-enabled desktop computer for connecting a wide variety of high-bandwidth USB 3.0 devices. It delivers ultra-fast USB 3.0 data transfer rates of up to 5Gb/s (10 times faster than USB 2.0) and offers backward compatibility for previous versions of USB devices.

This dual profile 2-Port USB 3.0 PCIe host adapter works with full height and low profile chassis system with the included bracket providing the utmost flexibility in system chassis installation. The DP 2-Port USB 3.0 PCIe i/e conforms to USB 3.0 Specification and PCI Express Base Specification, Revision 2.0 standards. It is also FCC Class B (DoC) & CE regulatory approved and RoHS-compliant. It is fully compatible with a wide variety of Windows operating systems.

What's Included With This Item

  • SIIG DP 2-Port USB 3.0 PCIe i/e Adapter
  • Low Profile Bracket
  • Driver CD
  • User's Manual
  • SIIG Lifetime Limited Warranty

Key Features

  • Add two (1 external & 1 internal) SuperSpeed USB 3.0 ports to your PCIe-enabled desktop PC
  • Works with high-bandwidth USB 3.0 devices, such as external hard disks, high resolution webcam, video surveillance cameras, digital video cameras, multi-channel audio and more
  • Supports data rate up to 5Gb/s and backward compatible with USB 2.0/1.1 devices
  • Dual profile design to work with full height and low profile chassis with included brackets
  • Supports per port over-current protection
  • Compliant with Universal Serial Bus 3.0 Specification, Revision 1.0
  • Compliant with PCI Express Base Specification, Revision 2.0

Technical Specs

Chipset Renesas uPD720202
Interfaces/Ports 1, 9-Pin, USB 3.0, Type A, female, internal
1, 9-Pin, USB 3.0, Type A, female, external
1, 15-Pin, SATA power, male, internal
Certificate/Standards FCC, CE, RoHS
System Requirement Desktop PC with an available PCIe slot
Windows 8 (32-/64-bit) / 7 (32-/64-bit) / Vista (32-/64-bit) / XP (32-/64-bit) / Server 2003 & 2008 (32-/64-bit) / Server 2008 R2
Operating temperature 32 to 140 degrees F
Storage temperature 14 to 176 degrees F
Operating humidity 15% to 85% RH (non-condensing)
Storage humidity 10% to 90% RH (non-condensing)
Dimensions (WxHxD) Standard height bracket installed: 3.19x4.81x0.71" / 8.10x12.21x1.8cm
Low profile bracket installed: 3.19x 3.25x0.71" / 8.10x8.25x1.8cm
Weight 0.11lbs / 0.049kg
