SIIG

SIIG DP 4-Port USB 3.0 PCIe with 20pin Header, Data Rate 5GB/s

SKU: SIJUP40511S1 MFR: JU-P40511-S1
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$43.95
Qty:
Add to Wishlist

About this item

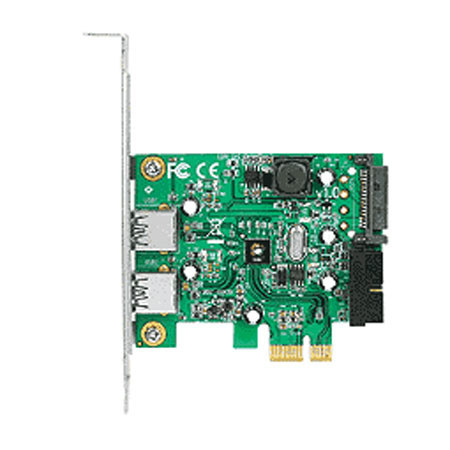

The SIIG DP 4-Port USB 3.0 PCIe with 20pin Header adds four (2 external & 2 internal) SuperSpeed USB 3.0 ports to your PCIe-enabled desktop computer. The two internal ports connect via 20-pin header for internal USB 3.0 connections. This adapter enhances existing computer system by enabling the latest USB 3.0 technology to deliver maximum data transfer rate of up to 5Gb/s to support high-bandwidth USB 3.0 devices.

The DP 4-port USB 3.0 PCIe with 20pin Header is backward compatible with USB 2.0 and 1.1 devices and features dual-profile PCB design to work with full height and low profile systems with the included brackets. The DP 4-Port USB 3.0 PCIe with 20pin Header is compliant with Universal Serial Bus 3.0 Specification and PCI Express Base Specification, Revision 2.0. It comes with FCC and CE regulatory approvals and RoHS compliancy, supports a wide variety of Windows operating systems.

What's Included With This Item

  • SIIG DP 4-Port USB 3.0 PCIe with 20pin Header
  • Spare Low Profile Bracket
  • Driver CD
  • User's Manual
  • SIIG Lifetime Limited Warranty

Key Features

  • Adds two external & 2 internal (via 20-pin header) SuperSpeed USB 3.0 ports to your PCIe-enabled desktop PC
  • Works with high-bandwidth USB 3.0 devices, such as external hard disks, high resolution webcams, video surveillance cameras, digital video cameras, multi-channel audio and more
  • Supports data rate up to 5Gb/s and backward compatible with USB 2.0/1.1 devices
  • Supports per port over-current protection
  • Dual profile design to work with full height and low profile chassis with included bracket
  • Powered by Renesas (NEC) chipset for maximum compatibility
  • Compliant with Universal Serial Bus 3.0 Specification
  • Compliant with PCI Express Base Specification, Revision 2.0

Technical Specs

Chipset Renesas uPD720201
Connectors 2x 9-pin, Type A, USB 3.0, Female, External
1x 20-pin USB 3.0 header, Male
1x 15-pin, SATA power connector
Certificate/Standards FCC, CE, RoHS
System Requirement Desktop PC with an available PCI Express (PCIe) slot
Windows 8 (32-/64-bit) / 7 (32-/64-bit) / Vista (32-/64-bit) / XP (32-/64-bit) / Server 2008 R2 / Server 2003 & 2008 (32-/64-bit)
Dimensions (WxHxD) 3.35x0.79x4.72" / 8.50x2x11.98cm
Weight 0.12lbs / 0.054kg
