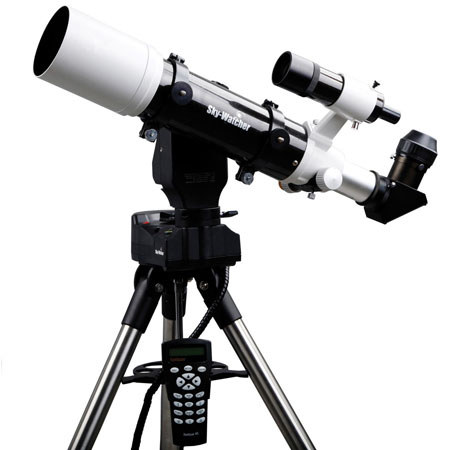

Sky-Watcher Allview Mount, Supports 9 lbs.

SKU: SKWS20150 MFR: S20150
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$399.00 $16 per week
Free Expedited Shipping
Add to Wishlist

About this item

Take amazing PANORAMIC IMAGES or video automatically

This multi-purpose computerized mount is designed and intended for a wide variety of applications such as panoramic photography, daytime viewing, videography and astronomical viewing.The AllView is capable of automatically moving to various preprogrammed positions and controls the camera shutter to take a picture at each position automatically, taking the complexity out of producing panoramic video or photographs.

This multi-purpose mount was designed to be used as:
• An alt-azimuth go-to computerized astronomical mount (using an optional telescope optical tube)
• A motorized platform for taking panoramic photographs
• A stable platform for panning while taking time lapse video or still images
• A motorized base for smooth panning video

Some of the many standard features of the AllView mount include:
• Multi-purpose mounting bracket for attaching an optical tube, still camera, or video camera
• Dual optical encoders - the mount never loses position even when moved by hand
• Sturdy stainless steel tripod
• Computerized mount can point to 42,900 astronomical objects
• Includes an electronic shutter release cable for most Canon DSLR cameras

What's Included With This Item

  • AllView Mount
  • SynScan Hand Control
  • Mounting Bracket (4 pc)
  • Steel Tripod
  • Tripod Accessory Tray
  • Camera Shutter Cable
  • RS-232 Cable
  • Sky-Watcher 2 Year Warranty

Key Features

  • Take amazing panaromic images or video automatically
  • Utilize your still camera to create time lapsepanning videos
  • Dual encoder technology on each axis allows manualmovement without losing alignment
  • Electronic shutter release to automatically triggercamera exposures in panoramicmode
  • Motorized panning head for video cameras
  • Hand control with database of over 42,000 celestial objects
  • Motorized head detaches for use with most prosumertripods using 3/8" thread

Technical Specs

Tripod Adjustable height, steel tripod legs, accessory tray
Mount Motorized altazimuth with manual release clutch knobs
Power Supply 8 to 16 V DC 1Amp (tip positive)
Weight (lbs) 21 lbs (9.53 kg)
Payload Capacity 9 lbs (4.08 kg)
Motor Drive DC servo
Slew Speeds 1000x, 800x, 600x, 400x, 200x, 32x, 16x, 8x, 2x, 1x
Tracking Rates Sidereal, Lunar, Solar
Tracking Modes Dual Axis Tracking
Alignment Procedures Brightest-Star Alignment, Two-Star Alignment
Computer Hand Control SynScan hand controller, flash upgradeable
Database Complete Messier, NGC, IC and SAO catalogues, 25 user defined objects, total 42,900 objects
Camera Adaptable ¼-20 thread L-bracket included
Dovetail Compatibility Accepts "Vixen-style" dovetail
