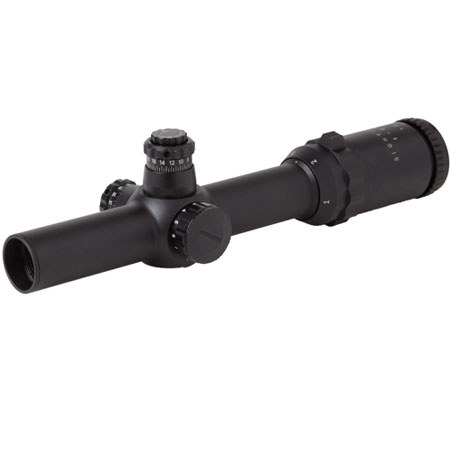

Sightmark 1-6x24 CDX Triple Duty M4 Riflescope, Matte Black Finish with Illuminated Red Circle Dot Duplex Reticle, 30mm Tube

SKU: SM13021CDX

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Sightmark SM13021CDX Specifications

  • Magnification

    1x - 6x

  • Objective / Field of View

    24mm / 100.4' (33.47m) @ 1x at 100 yds.(100m), 16.6' (5.53m) @ 6x at 100 yds.(100m)

  • Main (Center) Tube Diameter

    30mm

  • Objective Tube Diameter

    30mm

  • Eyepiece Tube Diameter

    Not Specified by Manufacturer

  • Lens Coatings

    Fully Multi Coated Wide Band AR Green

  • Reticle

    Illuminated Red Circle Dot Duplex

  • Reticle Image Plane (Magnifying)

    Second

  • Brightness Adjustments

    0 to 11 Settings

  • Twilight Performance

  • Exterior Finish

    Matte Black

  • Windage & Elevation Adjustments (MOA)

    1/2-M.O.A. Per Click with Locking Turrets

  • Adjustment Graduation

  • Maximum Adjustment

    90 MOA W & E

  • Exit Pupil

    16.0mm @ 1x, 4mm @ 6x

  • Eye Relief

    4.3" / 110.0mm @ 1x, 3.5" / 88.0mm @ 6x

  • Parallax Correction Control

    Preset 100 Yards

  • Diopter Adjustment

    +2 to -3

  • Battery

    CR-2032

  • Battery Life

    80-150 Hours Depending on Usage

  • Material

    Aluminum Alloy

  • Nitrogen Filled

    Neutral Pressure Nitrogen Purging

  • Waterproof / Fogproof

    Yes

  • Length

    15.4", (390.0mm)

  • Mounting Length

    Not Specified by Manufacturer

  • Weight

    19.4 oz., 550.0g

  • Special Features

    Reticle Image in the Second Focal Plane.
    Maximum recoil (G's) 1000G
    Illuminated Red Reticle.
    Limited Lifetime Warranty

  • Other

  • Note

  • Dot size at 100 yds

  • Min. quadr. adjustment range at 100 yds

  • Transmission in the range 400-1000 nn

3 Accessories for Sightmark 1-6x24 CDX Triple Duty M4 Riflescope, Matte Black Finish with Illuminated Red Circle Dot Duplex Reticle, 30mm Tube

  • All Accessories (3)
  • Rings (1)
  • Rifle Scope Accessories (1)
  • Cleaning Accessories (1)

About Sightmark SM13021CDX

The Sightmark Triple Duty M4 1-6x24 CDX Riflescope features a Circle Dot Duplex reticle that adds to the line of award winning Sightmark Triple Duty riflescopes. Sightmark's Circle Dot Duplex reticle is based on the World War II German Sniper Rifle, designed for moving targets and quick target acquisition.

The Sightmark 1-6x24 Riflescope is the highest magnification range ever. This combat reticle is great for fast moving targets and quick target acquisition. The 1x magnification is great for three gun matches, tactical training and tactical shooting matches. The Sightmark 1-6x24 Triple Duty Riflescope uses cutting edge glass with fully multi-coated optics increasing clarity and making it one of the best riflescopes in the market. The fully multi-coated optics transmit a bright and crisp picture that makes tracking and shooting targets quick and easy.

The 1-6x24 features a one-piece 30 mm tube that increases light transmission and field of view. O-ring sealed and nitrogen purged, the 1-6x24 is both fogproof and water-resistant. This precision scope features oversized, locking windage and elevation turrets with 1/2" MOA clicks, providing an additional level of accuracy and ensures that the scope stays zeroed. The Triple Duty riflescope is complimentary to any shooter's arsenal.

Sightmark SM13021CDX Features

  • precision accuracy
  • Adjustment lock
  • Circle dot duplex reticle
  • Wide field of view
  • Precision multi-coated optics
  • Internal lit reticle
  • 1/2" locking moa
  • Easy focusing knob
  • Side diopter adjustment
  • Lightweight
  • Waterproof
  • Shockproof
  • Export of this product outside of the United States of America is not allowed and is controlled by the US Department of State

Key Features

  • Precision accuracy
  • Adjustment lock
  • Circle dot duplex reticle
  • Wide field of view
  • Precision multi-coated optics
  • Internal lit reticle

What's in the box:

  • Sightmark Triple Duty M4 1-6x24 CDX Riflescope
  • Set of 30mm Rings
  • Sightmark Lifetime Limited Warranty
