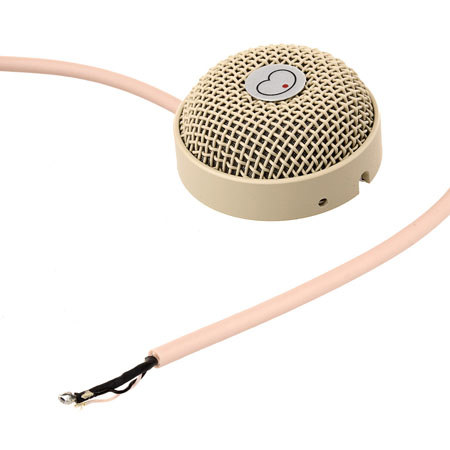

Sanken CUB01PTBE Audio CUB-01PT Miniature Boundary Microphone -Beige
Sanken

Sanken Audio CUB-01PT Miniature Boundary Microphone with Stripped End Cable, Beige , Includes FREE Copy of Vasst Training DVD:"Now Hear This!"Superior Sound for Digital Video $89 Value

SKU: SNCUB01PTBE MFR: CUB01PTBE
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$363.00
Qty:

Add to Wishlist

About this item

The Sanken Audio CUB-01PT offers an exclusive design which overcomes the limitations of previous boundary microphones, producing an extremely rich and full-bodied sound. Although small (32.5mm diameter, 14mm height, 45g weight) the sound is comparable with much larger microphones. The CUB-01 is designed for use in many situations, from TV and film field shooting to broadcast studio production and conference table recording.

Because of its small size it is easy to conceal from the camera and can be positioned in a variety of environments, for example, attached to the ceiling of a car with two-sided sticky tape. Using Sanken's advanced technology; the CUB-01 has a unique square-shaped capsule housing the diaphragm. With this proprietary design, the effective area of the diaphragm is significantly enlarged. Due to the CUB-01's cardioid directional characteristics, human narration and dialogue are clearly recorded while eliminating unnecessary background noise.

The Sanken CUB-01 offers a totally new design that overcomes the limitations of previous boundary microphones. Using Sanken's advanced technology; the CUB-01 has resolved this problem with its unique square-shaped cardioid capsule. This proprietary design significantly enlarges the effective area of the diaphragm, resulting in a boundary microphone whose sound is rich and natural, with a flat response to 70Hz. Human narration and dialogue are clearly caught while excluding unnecessary background noise.

What's Included With This Item

  • Sanken Audio CUB-01PT Miniature Boundary Microphone
  • Rubber Base x 2
  • Urethane Wind Screen
  • Instruction Manual
  • Warranty Card
  • Vinyl Case
  • Sanken Audio Warranty

Key Features

  • Clear and rich sound
  • Small size, easy to set up
  • Front side of hemisphere cardioid directivity

Technical Specs

Directivity Cardioid/front side of hemisphere
Transducer Self-polarised condenser
Frequency range 60Hz - 15kHz
Sensitivity (nominal at 1kHz) (3V power) 15mV/Pa (-36.5dB,0dB=1V/Pa), (12V power) 16.8mV/Pa (-35.55dB,0dB=1V/Pa)
Equivalent noise level (A-weighted) (3V power) 17dB-A, (12V power) 16dB-A
Max SPL (1% THD) (3V power) 121dB SPL, (12V power) 127dB SPL.
Output impedance at 1KHz 120 ohms
Powering +3V to +14V
Current consumption (3V power) <0.6mA, (12V power),<1.3mA
Connector Connector-less
Surface finish Baked painting/beige
Dimensions 32.5mm (diameter) x 14.0mm
Warranty Sanken Audio warranty
