Sangean Professional FM-Stereo/AM/LW/SW PLL Synthesized World Receiver

Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

Free Shipping

Add to Wishlist

Protect your investment

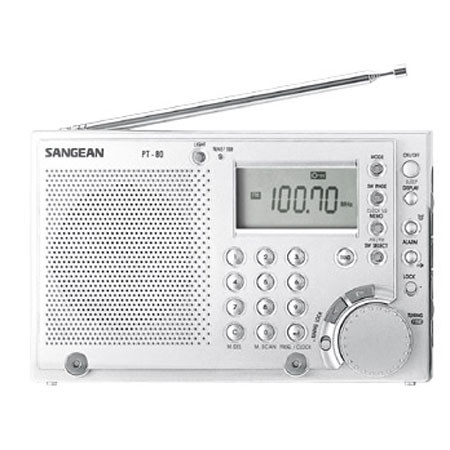

About the Sangean PT-80

The Sangean Professional FM-Stereo PLL Synthesized World Receiver is a compact digital radio featuring longwave, AM, FM plus continuous shortwave coverage. The PT-80 employs a dual conversion PLL synthesized circuit yielding excellent sensitivity and image rejection. It offers five tuning methods: direct keypad frequency entry, auto-scan, manual tuning, memory recall and rotary knob tuning. 45 memory presets are available with ATS Auto Tune System. A dial lock is featured. There is an indicator on the LCD that tells you whether or not you are tuning a shortwave broadcast band or not.

Single sideband (SSB) shortwave reception is supported. An SSB fine tuning control on the right side panel allows for accurate SSB clarification. The left side of the radio has switches for Stereo-Mono and for Local-DX. A dual world time clock (12/24 hour) with alarm, snooze and sleep is featured. The LCD is backlit and there is an external antenna jack for the shortwave band.

Sangean PT-80 Includes

  • Sangean Professional FM-Stereo PLL Synthesized World Receiver
  • 120 VAC Wall Adapter
  • Earphones
  • ANT-60 Wind-Up Antenna
  • Butter-Soft Hand Crafted Leather Pouch
  • Sangean Warranty

Sangean PT-80 Features

  • ATS (Auto Tuning System) Auto Scan and Preset
  • SSB on the SW Band
  • Shortwave Dual Conversion
  • Five Tuning Methods
  • Analog Tuned with Tuning LED
  • 45 Memory Preset Stations
  • 2 Alarm Timer
  • 1 kHz Fine Tune

Sangean PT-80 Specifications

Tuning Type: PLL synthesized
Memory Presets: 54
Rotary Tuning: Yes
Auto Tuning System: Yes
10 - Key Input: Yes
Display LCD / VFD / Dial Scale: LCD
View Area: 72 x 32.5 mm/ 2.83" x 1.28"
Graphic / Character Type: Segment
Back Light: Yes
Earphones Stereo
Tuner FM: Frequency (MHz): 87.5 - 108
LW Frequency (kHz): 153 - 279
MW Frequency (kHz): 520 - 1710
SW Frequency (MHz): 1.711 - 29.999
Meter Bands: 120,90,75,60,49, 41,31,25,21,19, 16,15,13,11
AM: SSB, SW Dual Conversion
Clock Real Time: Yes
Dual / World Time: Dual time
Radio Alarm: Yes
Buzzer Alarm: HWS
Sleep: Yes
Audio EQ Tone Control: HIGH / LOW (Slide)
Output Devices Speaker: Size ( mm / inch ): 2 inches
Impedance: 4 ohms
Output Power (Typical) Batteries (Speaker): 350 mW
Earphones: 5 + 5 mW
Power Supply DC in: 6V DC 150mA
Batteries (Main Power): 4 x 1.5V (UM - 3)
I/O Socket DC in: Yes
Earphones: Yes
Ext. Antenna: SW
Dimensions (W x H x D) 185 x 119 x 36 mm / 7.28" x 4.69" x 1.41"
Weight 511 g / 18.02 oz
