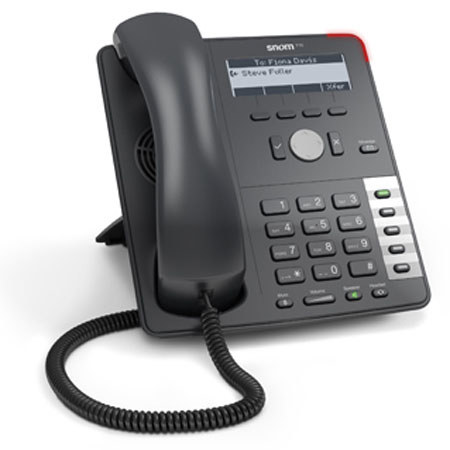

The Snom 710 with the VoIP technology is the IP phone for the discerning caller: ideally suited for ITSPs, offices and private users. As customary for Snom products, the newest member of the Snom 7xx business phone family fulfills the requirements of VoIP technology and additionally offers numerous functions that are indispensable for everyday working life. Due to its excellent cost-performance ratio, the Snom 710 is ideal both for ITSP bundle products and for small and medium enterprises, home offices and private users. The audio subsystem was designed for excellent performance in office environments.
It supports a large range of codecs and wideband audio in accordance with the TIA-920 standard. The four-line B/W display with its four context-sensitive and variably programmable function keys sets standards of user-friendliness: the menu-driven user interface provides simple and comfortable feature management. The freely programmable keys have built-in LEDs that show the status of the programmed function at a glance.
Functions like extension or speed dial can be mapped onto these keys easily and comfortably on the phone's web interface or in the settings menu. The phones come with a preinstalled certificate signed by the Snom certificate authority which makes it possible to securely provision the phone without manual interaction. In addition to the traditional provisioning mechanisms, the TR-069/TR-111 protocols are available for easy deployment in carrier environments. There are extensive management and reporting tools available, such as RTCP-XR or PCAP. Customization can be done in various ways, such as the Snom mini-browser protocol.
The Snom710 can be supplied with power via the Ethernet cable or an optional power adapter (not included). The footstand can be attached and removed easily without tools; it allows two positions for the device (28deg. and 46deg. angle). The Snom 710 can also be wall mounted. All in all, the Snom 710 raises the bar for VoIP phones in its class, in terms of voice quality, available features and day-to-day usability.
|Display Type||LCD display|
|Display Color Support||Monochrome|
|Display Resolution||128x48 pixels|
|Display Line Qty||4|
|IP Address Assignment||DHCP, Static|
|Lines Supported||4 lines|
|Integrated Ethernet switch||Yes|
|Multiple VoIP protocol support||Yes|
|Network Address Translation (NAT)||Yes|
|Network Ports||2 x Ethernet 10Base-T/100Base-TX|
|Network Protocols||DNS, HTTP, HTTPS, Link Layer Discovery Protocol - Media Endpoint Discovery (LLDP-MED), SRTP, TCP, TFTP, UDP|
|Power Over Ethernet (PoE) Support||Yes|
|Quality of Service||IEEE 802.1Q (VLAN)|
|Voice Codecs||G.711a, G.711u, G.722, G.723.1, G.726, G.729ab|
|Voice Features||Comfort noise generation (CNG), Voice activity detection (VAD)|
|VoIP Protocols||RTCP, SIP|
|Phone Connections||Headset jack|
|Conference Call Capability||3-way|
|Telephone Type||VoIP phone|
|Caller ID Memory||100 names & numbers|
|Dialed Calls Memory||100|
|Missed Calls Memory||100|
|Phone Directory Capacity||1000 names & numbers|
|Compliant Standards||FCC Class B certified|
|Dimensions (DxHxW)||20.5x4x18.5cm / 8.07x1.58x7.28"|
|Weight||440g / 15.52oz|
