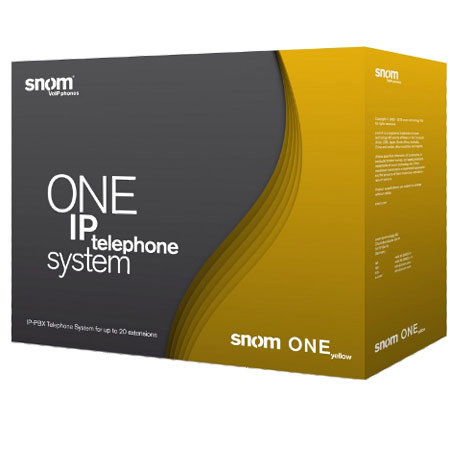

Snom One Yellow Software-Based PBX, Up to 20 Extensions

Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$634.80 $25 per week
Free Expedited Shipping
Add to Wishlist

Protect your investment

About this item

The Snom One Yellow Software-Based PBX is a SIP-based IP telephone system which is implemented in a back-to back user agent (or B2BUA), so all traffic between two endpoints traverses the system. This gives the system complete control of the call state and allows it to participate in all call requests. It also allows it to perform a number of functions that are impossible using the SIP proxy model. A few such functions are forking calls to the cell phone, returning them to the system, if needed and connecting phones remotely to the system. The B2BUA also facilitates advanced media features such as call recording, barge, listen in and whisper. The system is easily portable to most operating systems and requires only a small amount of memory. Doing database lookups can be slow in a very busy system. It is much faster to have a data structure in memory with the necessary information to authenticate a phone.

Key Features

  • Plug and Play with all snom phones
  • Simultaneous ringing of cell phones and snom phones
  • Extension specific dial plan, time zone and language support
  • Multiple extension alias names, ANI assignments
  • Centralized Address Book
  • Hot desking
  • Voicemail
  • Multidomain
  • Web Interface
  • Shared Line emulation
  • Available for Windows, Linux and Mac-OS
  • Mailbox: Multiple prompts and name recording (from extension or web interface), Voicemail to email, Moving and copying of messages to extensions and groups, Fast forward and rewind for message playback, Message waiting support (MWI), PIN-code based log in and Voicemail collection
  • Ideal for systems of 4 to 150 extensions, Easy installation, no additional programs required, Available for Windows, Linux and Mac-OS, Address book integration, Caller-ID based agent preference routing, Multiple call redirection events and destinations
  • User input key handling, Dynamic call routing, Web-based agent activity tracking, Web-based call monitoring and MoH mixing with announcements
  • Advanced Functionality: Auto attendants, Cell phone twinning, Hunt groups, Remote worker support, Conference rooms, Paging, Service flags, Music on hold support, Microsoft Exchange 2007/2010 UM support, Full System Monitoring and Agent groups
  • Extension: Extension specific dial plan, time zone and language support, Multiple extension alias names, ANI assignments, Hot desking, Remote worker support, Park orbit and pickup preference, Call redirection, Picture upload, Emergency call recording and Intercom (2-way) support
  • Security: SIP TLS transport layer, SRTP media encryption, HTTPS provisioning, Selectable password policy, Automatic blacklisting after unsuccessful, authentication attempts (DoS Defense)

Technical Specs

Number of Extension Up to 20
Operating System Windows, Linux and Mac
Supported SIP Phones Snom 300,Snom 320, Snom 360, Snom 370
Snom 820, Snom 821, Snom 870
Snom MeetingPoint
Snom m3, Snom m9
Snom PA1
Call Recording System-initiated call recording
User-initiated call recording (record button or star code)
SIP Trunking Multiple Trunks per domain
DID-based inbound routing
Registration for ITSP and PSTN gateways
CO-line emulation
Microsoft Exchange Support
Inbound DTMF detection
Provisioning Template-based provisioning
Provisioning of firmware
Multicast plug and play
TFTP, HTTP and HTTPS support
Network Far-end NAT traversal with mini session border controller
Multiple IP-address routing in SIP
IPv4 and IPv6 support
Multiple SIP ports, multiple HTTP ports, multiple TFTP ports; all ports can be bound to specific IP addresses
QoS definition
Support for DNS A, AAAA, SRV and NAPTR
ENUM support
CRM Integration CSTA support
Integrated TAPI Service Provider (TSP)
Usage of favorite address book tools
