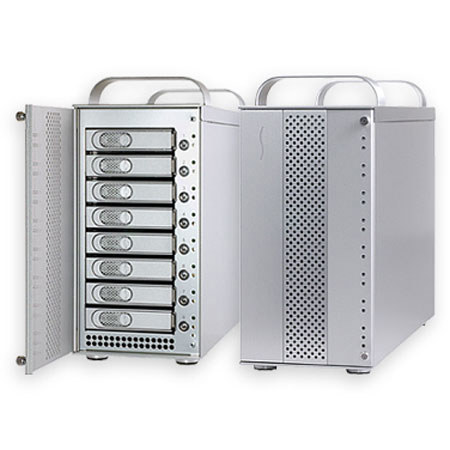

Sonnet 12TB D800P2 8-Drive SATA Storage System with Dual Port Multipliers, Two Locking eSATA Connectors

Special Order Item - This is a special order item that is Non Cancelable and Non Returnable. We Charge you when you place your order. Approximate arrival at Adorama 1-2 Weeks from date of order.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

Free Shipping
Add to Wishlist

About this item

The D800P2 employs two high performance SATA II port multipliers, each managing four drives. By using dual port multipliers, Sonnet has created a high performance storage system with data throughput fast enough to support multiple streams of DV, HDV, DVCPRO, ProRes 422, or uncompressed 8-bit 1080i HD video, without the need of an expensive dedicated RAID controller card.

Connected to a Sonnet Tempo SATA E4P PCIe or X4P PCI-X host controller installed in a Mac or Windows computer, a Fusion D800P2 system's drives can be accessed at high speed, whether configured as a RAID 0, RAID 1, or RAID 10 set, or JBOD. With its drives configured as a RAID 0 striped set, a Fusion D800P2 storage system achieves up to 400 MB/sec write, 470 MB/sec read data transfers.

Fusion D800P2 storage systems offer speed, versatility and reliability - they're a great choice for anyone looking for an affordable storage system that will fit into a variety of workflows. The Fusion D800P2 uses just two locking eSATA data cables (a Sonnet exclusive) to connect the enclosure to a SATA host controller card.

This efficient interface simplifies setup and cuts cable clutter without compromising performance. These systems are ideal for use in mixed environments - various operating systems, editing applications and output demands requiring the flexibility and interoperability that Fusion D800P2 storage systems provide.

What's Included With This Item

  • Sonnet 12TB Fusion D800P2 8-Drive SATA Storage System
  • Disk Enclosure
  • Two 2-Meter Locking eSATA Data Cables
  • Eight 3.5" Drive Modules or Drive Trays (with Drive Mounting Hardware)
  • Power Cord
  • User's Guide
  • Sonnet 5 Years Warranty

Key Features

  • Faster Performance: Dual port multipliers enable a Fusion D800P2 storage system to achieve up to 400 MB/sec write, 470 MB/sec read data transfers (eight 1.5TB drives configured as a RAID 0 striped set)
  • Easy Configuration: You can set up drives in a software-configured RAID 0 set for speed, RAID 1 set for redundancy, RAID 10 for combined redundancy and speed, or JBOD for archiving data
  • Quiet Operation: Fusion D800P2 storage systems integrate the Vantec Stealth fan, making this system well suited for use in noise-sensitive environments
  • Simple Setup: Connect two eSATA cables between the Fusion D800P2 and your SATA host controller, and use your operating system to format the drives as a RAID or JBOD
  • Platform independent: Works with Mac, Windows or Linux computers with compatible host bus adapter installed

Technical Specs

Capacity 12TB
External Connectors Two locking eSATA
Drives Supported 3 & 1.5GB per second Serial ATA;
up to 7,200 RPM
Data Transfer Speed Up to 400 MB/sec write, 470 MB/sec read, depending on interface used and configuration
Supported Drive Configurations JBOD; software-based RAID 0, 1, 10
Supported Video Formats 8-bit uncompressed HD 1080i,
8-bit uncompressed SD, ProRes 422, DVCPro HD, DVCPro 25/50, HDV, DV, DVCAM
Operating Temperature +32° F to +95° F (0° C to +35° C)
Noise 41 dBA
(Ambient Office 40-50 dBA)
Power Supply 300W, 100-240V,
50/60Hz Universal
Dimensions (W x D x H) 5.9" x 17.9" x 12.9" / 14.9 x 45.4 x 32.7 cm
Weight Without Drives: 15.7 lbs (6.8kg)
With Drives: 29.7 lbs (13.5kg)
