About the Sonnet DX800RAID

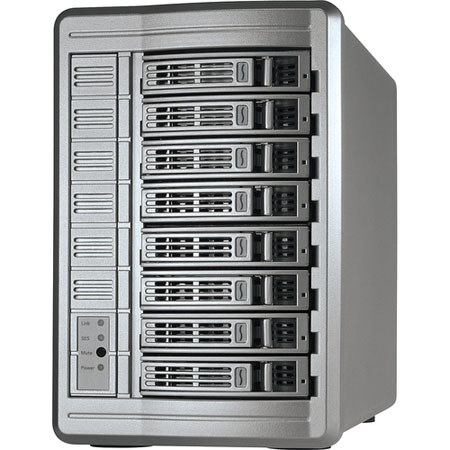

The Sonnet Fusion DX800RAID Expansion (16 TB) consists of eight 2 TB enterprise/RAID drive modules and is used to increase the storage capacity of Fusion DX800RAID storage systems. It offers speeds up to 870 MB/sec for read operation and 880 MB/sec for write operation. With an internal SAS (Serial Attached SCSI) expander, you can daisy-chain up to 16 DX800RAID enclosures to a single Sonnet RAID controller card. This eliminates the need of a separate RAID controller card and simplifies installation.

Supporting RAID levels 4, 5 and 6, it offers data protection incase of a drive failure. It monitors the drive performance and automatically maps out bad sectors to prevent drive failures. In addition, it provides data recovery tools in case of failure to create a RAID group. The SES (SCSI Enclosure Services) and S.M.A.R.T. data reporting offer realtime monitoring of the enclosure and drives. It overcomes the limitation in windows operating system by allowing partition more than 2TB. The noiseless fan keep the temperature of the system within safe limits.

Sonnet DX800RAID Includes

  • Sonnet Fusion DX800RAID 16TB Expansion Storage System
  • Enclosure
  • 8 x 2 TB Enterprise/RAID Drive Modules
  • Power Cord
  • Sonnet 5 Years Warranty

Sonnet DX800RAID Features

  • High Performance: A single Fusion DX800RAID system with eight drives (configured as RAID 5) delivers up to 870 MB/sec read, 880 MB/sec write data transfers
  • File Protection: Fusion DX800RAID supports RAID levels 4, 5 and 6 to protect data in case of a drive failure (two drives with RAID 6) while maintaining great performance
  • Enhanced Data Security: Fusion DX800RAID system monitors drive performance and automatically map out bad sectors to prevent drive failures and provides data recovery tools in case a RAID group can't be rebuilt and is taken offline
  • Easy, Expandability: Internal SAS expander enables you to connect up to 16 DX800RAID enclosures to a single Sonnet RAID controller card
  • Monitored Operation SES (SCSI Enclosure Services) and S.M.A.R.T. data reporting provide realtime monitoring of the enclosure and drives
  • Better Windows Support: Overcomes volume size limit in Windows XP Pro 32-bit to fully support volumes up to 16TB
  • Complete storage system includes enclosure, RAID controller card, drive modules, cables and software; expansion storage system includes enclosure, drive modules and power cable
  • 16TB configurations
  • Universal 100-240V, 50/60Hz power supply
  • Drive Activity, Drive Presence, Power, SES and Link LED indicators
  • RoHS compliant

Sonnet DX800RAID Specifications

Capacity 16TB
Data Transfer Speed Up to 870 MB/s read, 880 MB/sec write, depending on configuration
Supported Drive Configurations Hardware-based JBOD; RAID 0, 1, 4, 5, 6 and 10
Supported Video Formats 2K (2048 x 1556) LOG RGB, 10-bit 1080 4:4:4 HD, uncompressed 8-bit 1080i HD, ProRes 422, DV, HDV, DVCPRO and uncompressed SD
RAID Bus Interface PCI Express x8
RAID External Connectors Two mini-SAS
RAID Processor Intel IOP348
RAID Firmware Flash-ROM upgradeable to latest firmware version
RAID RoHS Compliant Yes
Operating System Compatibility Mac OS X Version 10.4.8+ (including Snow Leopard)
Windows 7, Vista, Server 2008, Server 2003 and XP Pro
Linux (RedHat ES 3, 4; Suse RedHat ES 3, 4; Suse Linux 9, 9.1, 9.2, 9.3, 10, 10.1 and the following architectures: i386; x86_64 (AMD64, Intel EM64T)
Hardware Compatibility Mac, Windows, or Linux computer with available x8 (or x4) PCI Express (PCIe) slot
Noise Fusion DX800RAID: 42 dBA (Ambient Office: 40-50 dBA)
Drive External Connectors Two mini-SAS
Drives Supported 3 & 1.5 Gb per second Serial ATA; up to 7,200 RPM
Power Supply 300W, 100-240V, 50/60Hz Universal
Operating Temperature +41 Deg. F to +104 Deg. F (5 Deg. C to +40 Deg. C)
Dimensions (W x D x H) 7.4 x 15.8 x 11.2 in (18.7 x 40.1 x 28.6 cm)
Weight 28.1 lbs / 12.7 kg (with drives)
