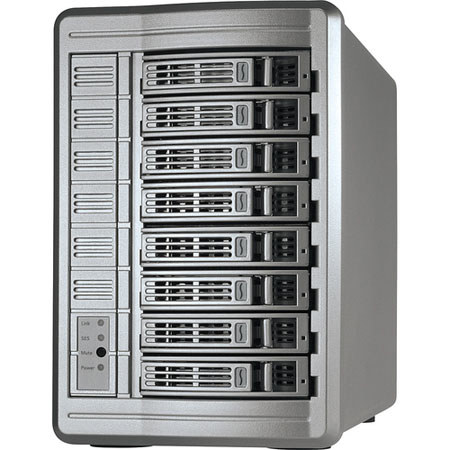

Sonnet Fusion DX800RAID 24TB Expansion Storage System
See all Sonnet items

Sonnet Fusion DX800RAID 24TB Expansion Storage System, Up to 870 MB/s Read, 880 MB/sec Write Data Transfer Speed

SKU: SNTDX8S24TB
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Sonnet DX800RAID Specifications

  • Capacity

    24TB

  • Data Transfer Speed

    Up to 870 MB/s read, 880 MB/sec write, depending on configuration

  • Supported Drive Configurations

    Hardware-based JBOD; RAID 0, 1, 4, 5, 6 and 10

  • Supported Video Formats

    2K (2048 x 1556) LOG RGB, 10-bit 1080 4:4:4 HD, uncompressed 8-bit 1080i HD, ProRes 422, DV, HDV, DVCPRO and uncompressed SD

  • RAID Bus Interface

    PCI Express x8

  • RAID External Connectors

    Two mini-SAS

  • RAID Processor

    Intel IOP348

  • RAID Firmware

    Flash-ROM upgradeable to latest firmware version

  • RAID RoHS Compliant

    Yes

  • Noise

    Fusion DX800RAID: 42 dBA
    (Ambient Office: 40-50 dBA)

  • Operating System Compatibility

    Mac OS X Version 10.4.8+ (including Snow Leopard)
    Windows 7, Vista, Server 2008, Server 2003 and XP Pro
    Linux (RedHat ES 3, 4; Suse RedHat ES 3, 4; Suse Linux 9, 9.1, 9.2, 9.3, 10, 10.1 and the following architectures: i386; x86_64 (AMD64, Intel EM64T)

  • Hardware Compatibility

    Mac, Windows, or Linux computer with available x8 (or x4) PCI Express (PCIe) slot

  • Drive External Connectors

    Two mini-SAS

  • Drives Supported

    3 & 1.5 Gb per second Serial ATA; up to 7,200 RPM

  • Power Supply

    300W, 100-240V, 50/60Hz Universal

  • Operating Temperature

    +41 Deg. F to +104 Deg. F (5 Deg. C to +40 Deg. C)

  • Dimensions (W x D x H)

    7.4 x 15.8 x 11.2 in (18.7 x 40.1 x 28.6 cm)

  • Weight

    28.1 lbs / 12.7 kg (with drives)

About Sonnet DX800RAID

The Sonnet Fusion DX800RAID Expansion (24 TB) consists of eight 3 TB enterprise/RAID drive modules and is used to increase the storage capacity of Fusion DX800RAID storage systems. It offers speeds up to 870 MB/sec for read operation and 880 MB/sec for write operation. With an internal SAS (Serial Attached SCSI) expander, you can daisy-chain up to 16 DX800RAID enclosures to a single Sonnet RAID controller card. This eliminates the need of a separate RAID controller card and simplifies installation.

Supporting RAID levels 4, 5 and 6, it offers data protection incase of a drive failure. It monitors the drive performance and automatically maps out bad sectors to prevent drive failures. In addition, it provides data recovery tools in case of failure to create a RAID group. The SES (SCSI Enclosure Services) and S.M.A.R.T. data reporting offer realtime monitoring of the enclosure and drives. It overcomes the limitation in windows operating system by allowing partition more than 2TB. The noiseless fan keep the temperature of the system within safe limits.

Sonnet DX800RAID Features

  • High Performance: A single Fusion DX800RAID system with eight drives (configured as RAID 5) delivers up to 870 MB/sec read, 880 MB/sec write data transfers
  • File Protection: Fusion DX800RAID supports RAID levels 4, 5 and 6 to protect data in case of a drive failure (two drives with RAID 6) while maintaining great performance
  • Enhanced Data Security: Fusion DX800RAID system monitors drive performance and automatically map out bad sectors to prevent drive failures and provides data recovery tools in case a RAID group can't be rebuilt and is taken offline
  • Easy, Expandability: Internal SAS expander enables you to connect up to 16 DX800RAID enclosures to a single Sonnet RAID controller card
  • Monitored Operation SES (SCSI Enclosure Services) and S.M.A.R.T. data reporting provide realtime monitoring of the enclosure and drives
  • Better Windows Support: Overcomes volume size limit in Windows XP Pro 32-bit to fully support volumes up to 16TB
  • Complete storage system includes enclosure, RAID controller card, drive modules, cables and software; expansion storage system includes enclosure, drive modules and power cable
  • 24TB configurations
  • Universal 100-240V, 50/60Hz power supply
  • Drive Activity, Drive Presence, Power, SES and Link LED indicators
  • RoHS compliant

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Sonnet Fusion DX800RAID 24TB Expansion Storage System
  • Enclosure
  • 8 x 3 TB Enterprise/RAID Drive Modules
  • Power Cord
  • Sonnet 5 Years Warranty
