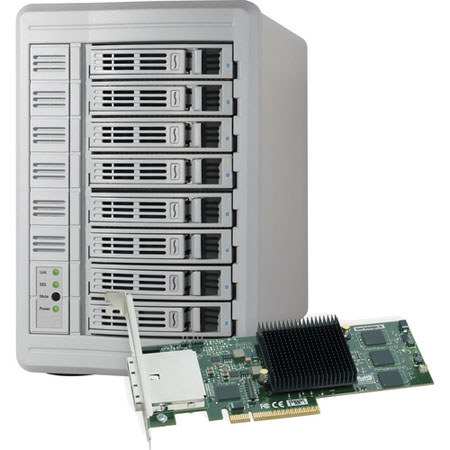

Sonnet Fusion DX800RAID 24TB Storage System with Controller
See all Sonnet items

Sonnet Fusion DX800RAID 24TB Storage System with Controller, Up to 870 MB/s Read, 880 MB/sec Write Data Transfer Speed

SKU: SNTDX8SR24TB
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Sonnet DX800RAID Specifications

  • Capacity

    24TB

  • Data Transfer Speed

    Up to 870 MB/s read, 880 MB/sec write, depending on configuration

  • Supported Drive Configurations

    Hardware-based JBOD; RAID 0, 1, 4, 5, 6 and 10

  • Supported Video Formats

    2K (2048 x 1556) LOG RGB, 10-bit 1080 4:4:4 HD, uncompressed 8-bit 1080i HD, ProRes 422, DV, HDV, DVCPRO and uncompressed SD

  • RAID Bus Interface

    PCI Express x8

  • RAID External Connectors

    Two mini-SAS

  • RAID Processor

    Intel IOP348

  • RAID Firmware

    Flash-ROM upgradeable to latest firmware version

  • RAID RoHS Compliant

    Yes

  • Noise

    Fusion DX800RAID: 42 dBA
    (Ambient Office: 40-50 dBA)

  • Operating System Compatibility

    Mac OS X Version 10.4.8+ (including Snow Leopard)
    Windows 7, Vista, Server 2008, Server 2003 and XP Pro
    Linux (RedHat ES 3, 4; Suse RedHat ES 3, 4; Suse Linux 9, 9.1, 9.2, 9.3, 10, 10.1 and the following architectures: i386; x86_64 (AMD64, Intel EM64T)

  • Hardware Compatibility

    Mac, Windows, or Linux computer with available x8 (or x4) PCI Express (PCIe) slot

  • Drive External Connectors

    Two mini-SAS

  • Drives Supported

    3 & 1.5 Gb per second Serial ATA; up to 7,200 RPM

  • Power Supply

    300W, 100-240V, 50/60Hz Universal

  • Operating Temperature

    +41 Deg. F to +104 Deg. F (5 Deg. C to +40 Deg. C)

  • Dimensions (W x D x H)

    7.4 x 15.8 x 11.2 in (18.7 x 40.1 x 28.6 cm)

  • Weight

    28.1 lbs / 12.7 kg (with drives)

About Sonnet DX800RAID

The Sonnet Fusion DX800RAID Storage System with Controller (24TB) features eight 3TB Enterprise/RAID drive modules and supports single-stream capturing and playback of 2K (2048 x 1556) LOG RGB data and uncompressed 10-bit HD data with 1080 4:4:4 resolution. It also supports multiple streams of ProRes 422 HD and uncompressed 8-bit 1080 HD. With an internal SAS expander, you can connect up to16 DX800RAID enclosures to a single Sonnet RAID controller card.

Supporting RAID levels 4, 5, 6 and DVRAID, the DX800RAID Storage System offers high-data protection in case of drive failure. In addition to drive activity, drive presence, power and link LED indicators, the unit is equipped with SES (SCSI Enclosure Services) and S.M.A.R.T. data reporting that offers real-time monitoring of enclosure and drives. The noiseless fans keep the temperature of the unit within safe limits. You can expand the storage capacity of the system by connecting it to a Fusion DX800RAID Expansion system.

Sonnet DX800RAID Features

  • High Performance: A single Fusion DX800RAID system with eight drives (configured as RAID 5) delivers up to 870 MB/sec read, 880 MB/sec write data transfers
  • File Protection: Fusion DX800RAID supports RAID levels 4, 5 and 6 to protect data in case of a drive failure (two drives with RAID 6) while maintaining great performance
  • Enhanced Data Security: Fusion DX800RAID system monitors drive performance and automatically map out bad sectors to prevent drive failures and provides data recovery tools in case a RAID group can't be rebuilt and is taken offline
  • Easy, Expandability: Internal SAS expander enables you to connect up to 16 DX800RAID enclosures to a single Sonnet RAID controller card
  • Monitored Operation SES (SCSI Enclosure Services) and S.M.A.R.T. data reporting provide realtime monitoring of the enclosure and drives
  • Better Windows Support: Overcomes volume size limit in Windows XP Pro 32-bit to fully support volumes up to 16TB
  • Complete storage system includes enclosure, RAID controller card, drive modules, cables and software; expansion storage system includes enclosure, drive modules and power cable
  • 24TB configurations
  • Universal 100-240V, 50/60Hz power supply
  • Drive Activity, Drive Presence, Power, SES and Link LED indicators
  • RoHS compliant

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Sonnet Fusion DX800RAID 24TB Storage System
  • 8 x 3TB Enterprise/RAID Drive Modules
  • 2 x 2m Mini-SAS Cables
  • Power Cable
  • Software CD
  • User's Guides
  • Sonnet 5 Years Warranty
