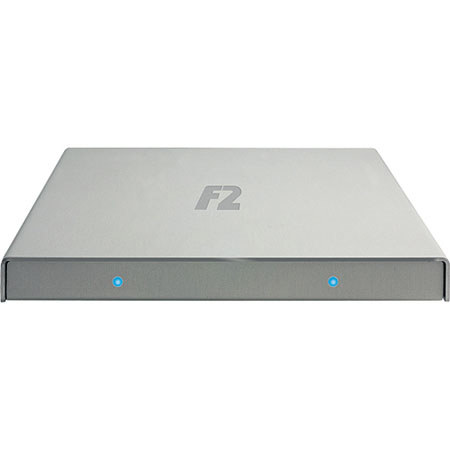

Sonnet F 2 - 640GB, Portable 2 Drive RAID SATA Storage System with eSATA Interface

Please note! This is a Special Order Item and is Non Cancelable and Non Returnable.
We Charge you when you place your order. Approximate arrival at Adorama 1 - 2 Weeks from date of order.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

Free Shipping

Add to Wishlist

About this item

Sonnet Fusion F2 is a Portable 2 Drive RAID SATA Storage System with eSATA interface. Speed, reliability, ruggedness and convenience-these are the essential qualities of a storage system for on-location video capture. When you need to travel light, choose a Sonnet Fusion F2 portable SATA RAID storage system. Providing 640GB(1) of storage in a small enclosure, Fusion F2 uses eSATA connections to deliver the fastest performance yet from a 2-drive portable storage system, with data transfer rates up to twice as fast as FireWire.

Fusion F2 employs two 320GB, 5,400 RPM, 2.5" mobile hard drives that offer an optimal balance between speed, power consumption and reliability. Sonnet chose these high-performance drives because they offer greater areal density than other mobile hard drives (pack more data per platter), use the 3 Gb/sec SATA interface and deliver better performance than the 7,200 RPM drives we tested; simply put, they are the fastest 2.5" mobile hard drives available today. Fusion F2's drives are also extremely quiet and very rugged, making the Fusion F2 a great travel companion for your mobile studio.

Connected to a Sonnet Tempo SATA ExpressCard/34 installed in a MacBook Pro and with its drives configured as a RAID 0 striped volume, the compact Fusion F2 is capable of 126 MB/sec sustained read and write data transfers, fast enough to handle multiple streams of ProRes 422 (HQ)! Compared to the slower 66 MB/sec performance from a pair of drives connected via FireWire 800, the advantage is clear-Fusion F2 provides you the capability to capture and play more streams of compressed video for field editing.

Fusion F2 was devised as a high-performance, high-reliability alternative to existing portable drive solutions. Encased inside a thick aluminum shell, each of Fusion F2's drives is individually shock-isolated, not only protecting the drives during transport, but also virtually eliminating cross-coupled vibration during operation, which, unchecked, can induce soft errors-a potential source of skipped video frames.

Fusion F2 is ideal for use on location as well as the office-various operating systems, editing applications and output demands requiring the flexibility and interoperability that Fusion F2 provides. Fusion storage systems support Mac OS X, Windows Vista, Windows XP Professional and Linux. It is compatible with capture cards from AJA, Blackmagic Design, Matrox and Bluefish444 and works with all mainstream video editing applications including Apple Final Cut Pro and Adobe Premiere Pro CS3.

Fusion F2 features two 3 Gb/sec eSATA data ports. By connecting via a direct SATA II interface with no bridge chip between the F2's case and SATA II drives, there is no resulting communication slowdown, just the fastest data transfers possible. Fusion F2 uses a novel method to power itself; it draws power from your notebook's FireWire 400 port. Instead of relying on a bulky external power supply that may not work everywhere you go, Fusion F2 uses an included FireWire-to-power cable. Whether your notebook is plugged in or running off its battery, Fusion F2 operates anywhere your computer does. Another FireWire device, or a powered hub can also power Fusion F2, if necessary.

What's Included With This Item

  • Sonnet Fusion F2 640GB, 2 Drive RAID SATA Storage Systm
  • Disk Enclosure with Two Non-swappable 2.5" Hard Drives
  • Two eSATA Data Cables
  • One Power Cable
  • Slipcase
  • User's Guide
  • Sonnet 2 Years Limited Warranty

Key Features

  • Ultra-Portable-Two 2.5" SATA drives mounted side-by-side inside a 5.9" x 6.2" x 0.72" aluminum case are bus-powered for the ultimate in portability
  • Remarkably Fast-With its drives formatted as a RAID 0 volume, Fusion F2 delivers sustained data transfer rates up to 126MB/sec read and write, nearly twice as fast as a pair of FireWire 800 drives
  • Field Video Certified-With its SATA data interface, Fusion F2 is the perfect storage companion for a portable video capture system that may saturate a notebook's FireWire bus
  • Rugged and Reliable-Both drives are individually shock-isolated, virtually eliminating cross-coupled vibration, which, unchecked, can induce soft errors-a potential source of skipped frames
  • Cool and Quiet-Because of its efficient fanless design, if not for the cool blue LEDs, you may not even know that Fusion F2 was running
  • RoHS compliant
  • Compatible with Sonnet Tempo SATA ExpressCard/34, Tempo SATA E4P, Tempo SATA X4P, and Tempo SATA E2P host bus adapters

Technical Specs

External Connectors Two eSATA, one power
Drives Supported 1.5 & 3 Gb per second Serial ATA; up to 7,200 RPM
Data Transfer Speed Up to 126 MB/s, depending on interface used and configuration
Supported Video Formats XDCAM HD, ProRes 422, ProRes 422 (HQ), HDV 720p30, HDV 1080i60, DVCPROHD 720p60, DVCPROHD 1080i60, DV50, DV25, 8-bit NTSC, 10-bit NTSC, ProRes 422 HD, ProRes HD (HQ)
Power Supply Powered by FireWire port on computer or powered hub
Operating Temperature +32° F to 104° F, (0° C to +40° C)
Compatibility Platform independent-Works with Mac, Windows or Linux computers with compatible host bus adapter installed
Dimensions 5.9 x 6.2 x .0.72 in / 14.9 x 15.7 x 1.8 cm
Weight 1.22 lbs / 0.55 kg
