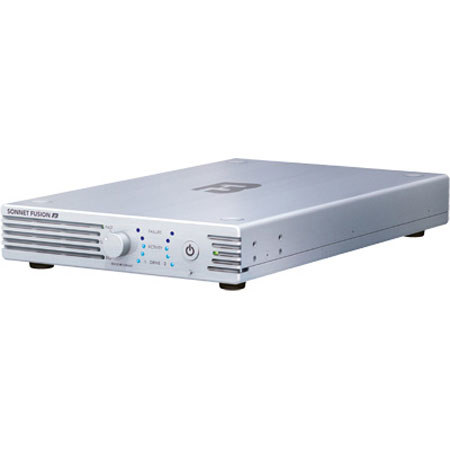

Sonnet Fusion F3 6TB Portable 2-Drive RAID Storage System with Quad Interface

SKU: SNTF36TB MFR: FUS-F3-6TB
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable.
We Charge you when you place your order. Approximate arrival at Adorama 1 - 2 Weeks from date of order.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$599.00
Free Shipping
Qty:

Add to Wishlist

About the Sonnet F3

Where you will use a storage system will often determine your selection. Whether sitting on a desk, mounted in a server or equipment rack, or placed on whatever surface you can find while working on location, Sonnet's Fusion F3 is a great choice for your high-speed storage needs. This 2-drive hardware RAID storage system has the features demanded by audio and video professionals-high throughput performance, rugged design and quiet operation-plus the flexibility of a quad interface and the convenience of an integrated universal power supply. Fusion F3 encloses its high-performance 3.5" SATA RAID drives in a stylish aluminum and steel case that fits equally well in recording studios, high-end A/V racks and desktop or mobile video editing systems.

Fusion F3's rugged aluminum and steel case is designed to withstand rough handling, but what's inside makes this storage system unique and well suited for use in environments that cause lesser systems to fail. Mounted side-by-side, each of the F3's drives is mounted on its own multi-point shock/vibration isolation sled to virtually eliminate vibration-related problems such as cross-coupled vibration-a potential source of soft-error-induced skipped frames in video capture and playback. Dual temperature-controlled fans with automatic failover help ensure system reliability. Fusion F3 supports Sonnet's exclusive locking eSATA cables, which provide a secure link between the F3 and Tempo PCIe and PCI-X eSATA host controller cards, even when subjected to heavy vibration.

A built-in high performance RAID controller manages Fusion F3's drives and enables single cable to host connection. It supports fast (RAID 0), safe (RAID 1) and JBOD (Just a Bunch of Disks) configurations, so you can choose the setup that best suits your needs. RAID mode configuration is OS independent, so the F3 can be connected directly to an audio editing/mixing interface (and other devices that support the feature) via FireWire interface without requiring a computer to link the storage system and device. Its quad interface makes it a cinch to connect Fusion F3 to your computer-select the eSATA or FireWire 800 interface for maximum speed or medium speed, respectively, or choose FireWire 400 or USB 2.0 for flexibility. Sonnet includes the cables for each interface, so you don't need to buy a new one or search for a spare.

Sonnet F3 Includes

  • Sonnet Disk Enclosure with Two 3.5" Hard Drives
  • Carrying Case
  • 1 x 2m locking eSATA Cable
  • 1 x 2m FireWire 800 Cable
  • 1 x 2m FireWire 800 to FireWire 400 Cable
  • 1 x 2m USB 2.0 Cable
  • Power Cord
  • User's Guide
  • Sonnet 2 Years Warranty

Sonnet F3 Features

  • Integrated Hardware RAID Controller: Supports fast (RAID 0), safe (RAID 1) and JBOD (Just a Bunch of Disks) configurations; configuration is OS independent
  • Flexible: eSATA, FireWire 800, FireWire400 and USB interfaces enable single cable connection to most computers
  • Fast: When set to Fast mode (RAID 0) and connected via eSATA, Fusion F3 can sustain transfer rates of up to 195 MB/sec
  • Durable and Dependable: Rugged aluminum and steel outer case construction and unique multi-point shock/vibration isolation sleds protect the drives and ensure reliable operation
  • Elegant Design: An attractive milled aluminum faceplate and metal controls lend the appearance of an audiophile component. Power, activity and fault indicators automatically dim in darkened A/V installations
  • Desktop or Rackmount: Systems may be stacked on a flat surface, or mounted in a standard rack with the optional rackmount kit. Front mounted controls and indicator LEDs are perfect for rack accessibility
  • Locking eSATA, FireWire 800, FireWire 400 and USB cables included
  • RoHS compliant
  • Compatible with Sonnet's Tempo SATA E4P, Tempo SATA X4P, or Tempo SATA Pro ExpressCard/34, host controllers

Sonnet F3 Specifications

External Connectors Locking eSATA, 2 x FireWire 800, USB 2.0
Data Transfer Speed Up to 195 MB/s, depending on drives, interface and configuration
Supported Drive Configurations Hardware-based RAID 0, 1 and JBOD
Supported Video Formats Uncompressed 10-bit NTSC HD, DV, HDV, DVCPRO and uncompressed SD
Power Supply Universal 180W, 100-240V AC, 50-60Hz
Operating Temperature +32deg. F to +95deg. F (0deg. C to +35deg. C)
Compatibility Platform independent-Works with Mac, or Windows computers
Dimensions (W x D x H) 8.7 x 13.9 x 2 in (22.1 x 35.3 x 5.1 cm)
Weight 8.5 lbs (3.9 kg)
