Sonnet Fusion D400QR5 0TB Quad Interface RAID 5 Storage System Enclosure


Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

Availability: In Stock Online In Stock Online - Usually ships within 1-3 Days

Free Shipping

See all shipping options

Ways To Save

More Buying Options

Product Highlights

  • High Performance, Protected Data
  • RAID 5 Onboard
  • Four Interfaces, Single Cable Connection
  • Informative Display and LED Indicators
  • Simple Configuration
  • Quiet Fans
  • RAID 0/5 Drive
  • 4 Drive Bays

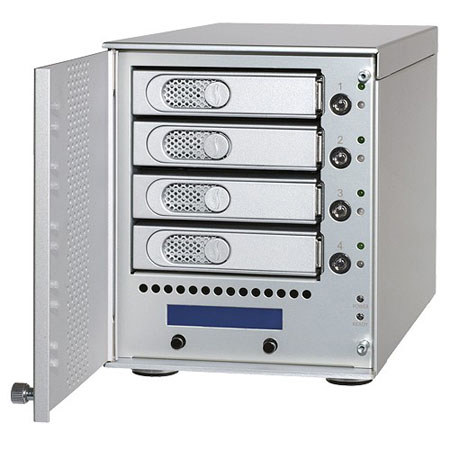

Sonnet D400QR5: Picture 1 regular $656.50

About Sonnet D400QR5

The Sonnet Fusion D400QR5 0 TB Quad Interface RAID 5 Storage System features a quad interface that requires just a single locking data cable to connect the enclosure to an eSATA host controller card. This efficient interface simplifies setup and cuts cable clutter without compromising performance. No SATA? No problem-connected via a single FireWire 800, FireWire 400, or USB cable, all four drives can be accessed at the full speed of the respective interface.

It integrates an ultra-quiet, user-swappable fan module using the Vantec Stealth fan. This fan is 80% quieter than a standard case fan, making this desktop system well suited for use in noise-sensitive environments.

Sonnet D400QR5 Features

  • High Performance, Protected Data: When connected via eSATA and with four 1TB drives configured as a RAID 5 set, data transfers up to 225 MB/sec read, 210 MB/sec write while protecting the data
  • RAID 5 Onboard: Integrated hardware RAID controller supports RAID 5 drive configuration on its own; no need for a specialized RAID controller card
  • Four Interfaces, Single Cable Connection: Choose from eSATA, FireWire 800, FireWire 400 and USB 2.0 interfaces and connect to your computer with a single cable
  • Informative Display and LED Indicators: Determine operating status at a glance
  • Simple Configuration: Integrated controls enable you to select RAID modes and configure the drives to meet your performance and data security needs, no matter which interface you choose
  • Quiet Fans: Low fan noise levels make these Fusion storage systems suitable for use in noise-sensitive environments
  • Compatible with Sonnet Tempo SATA PCI-X, PCIe and ExpressCard/34 host controllers
  • RoHS compliant

Sonnet D400QR5 Specifications

External Connectors
eSATA, 2 x FireWire 800, FireWire 400, Mini-USB 2.0
Data Transfer Speed
Up to 225 MB/s
Supported Drive Configurations
Hardware-based RAID 0, 5
Supported Vide Formats
Uncompressed 10-bit NTSC HD, DV, HDV, DVCPRO and uncompressed SD
OS Compatibility
Platform independent-works with Mac, Windows and Linux computers
Capture Card Compatibility
AJA, Blackmagic Design, Matrox and Bluefish444
Video Editing Application Compatibility
Apple Final Cut Pro and Adobe Premiere Pro
40 dBA
Power Supply
Universal 180W, 100-240V AC, 50-60Hz
Operating Temperature
+32deg. F to +95deg. F (0deg. C to +35deg. C)
Dimensions (WxDxH)
5.9 x 11.2 x 7.5 in (14.9 x 28.5 x 19.0 cm)
9.1 lbs (4.1 kg)
