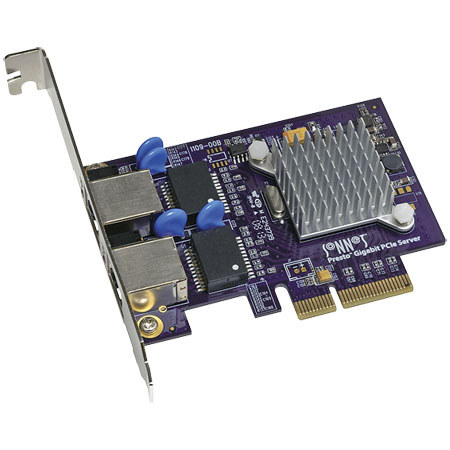

Sonnet Presto Gigabit Ethernet Server 2-Port PCIe Card (Supports Jumbo Packets and Link Aggregation)

SKU: SNTGE10002XE

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Sonnet GE1000LA2XE Presto Gigabit Ethernet 2 PCIe Card Specifications

  • RoHS Compliant

    Yes

  • Network Connectors

    Two RJ-45 connectors support 1000Mbps, 100Mbps, 10Mbps network speed and Auto-MDI/MDI-X

  • Bus Interface

    PCI Express 1.1, x4

  • Standards

    IEEE 802.3 10BaseT; IEEE 802.3u 100BaseT; IEEE 802.3ad 1000BaseT

  • IRQ Line

    Assigned by system

  • I/O Address

    Assigned by system

  • Transmission Rates

    1000Mbps, 100Mbps, 10Mbps

  • Link

    Supports Link Aggregation

  • Packets

    Maximum packet size: 9000 bytes (Jumbo packets)

  • Compatibility

    Mac Compatibility: Xserve (with PCI Express slots),
    Mac OS X Server 10.4+
    Mac Pro,
    Mac OS X 10.4+
    Power Mac G5 (with PCI Express slots),
    Mac OS X 10.5
    Snow Leopard compatible
    Windows Compatibility: Server (with PCI Express x4 slot)
    PC (with PCI Express x4 slot)
    Windows Server 2003
    Windows 7
    Windows Vista
    Windows XP

  • Network

    Gigabit Ethernet (1000BaseT, 100BaseTX, 10BaseT)

  • Network Power

    UTP x 2 (Auto-MDI/MDI-X)

About Sonnet GE1000LA2XE Presto Gigabit Ethernet 2 PCIe Card

Whether you need to add more Gigabit Ethernet ports to your server for improved performance and reliability or the ability to connect your computer to more networks, get a Sonnet Presto Gigabit PCIe Server dual-port Gigabit Ethernet adapter card for PCI Express for an advanced networking solution! This 4-lane (x4) PCI Express card supports link aggregation on its own and with your computer's onboard Gigabit Ethernet ports and full duplex communication to achieve up to 2000 Mbps and faster transfer rates - the ideal solution for high-bandwidth data transfer requirements.

Presto Gigabit Ethernet PCIe Server also supports 9000 byte jumbo packet transfers (compared to 1500 byte standard packets) to support higher performance and reduced overhead when transferring large files. Should a cable get unplugged or a port fail, Presto Gigabit PCIe Server provides transparent failover protection, so your computer remains connected to the network.

Presto Gigabit PCIe Server supports gigabit speeds over common CAT-5 cabling, so costly cable replacement is unnecessary. If your computer already has onboard Gigabit Ethernet, you can add a Presto Gigabit PCIe Server and use it for dedicated connection to a printer, AirPort Extreme base station, DSL or cable modem, or a video server, while leaving your onboard Gigabit Ethernet port(s) available for other connections.

Presto Gigabit PCIe Server is compatible in Mac Pro and Power Mac G5 & xserve & PCs and servers with a PCI Express (PCIe) slot. Offering simple configuration, this Sonnet card is easy to use and its support for 1000/100/10BaseT auto-negotiation and full/half duplex communication enable it to be used in most networks.

Sonnet GE1000LA2XE Presto Gigabit Ethernet 2 PCIe Card Features

  • Simple way to add Gigabit Ethernet connectivity to any compatible computer
  • Supports gigabit speeds on common CAT-5 cabling - no need for costly cable replacement
  • Supports link aggregation on its own and with onboard Gigabit Ethernet ports
  • Supports transparent failover
  • Full/half duplex
  • 1000/100/10BaseT auto-negotiation
  • PCI Express (PCIe) x4 host bus interface for maximum performance

Key Features

  • Simple way to add Gigabit Ethernet connectivity to any compatible computer
  • Supports link aggregation on its own
  • Supports transparent failover
  • Full/half duplex
  • 1000/100/10BaseT auto-negotiation
  • PCI Express (PCIe) x4 host bus interface for maximum performance

What's in the box:

  • Sonnet Presto Gigabit Ethernet Server 2-Port PCIe Card
  • Low Profile Mounting Bracket
  • Quick Start Guide
  • Software CD
  • Sonnet 1 Year Limited Warranty
