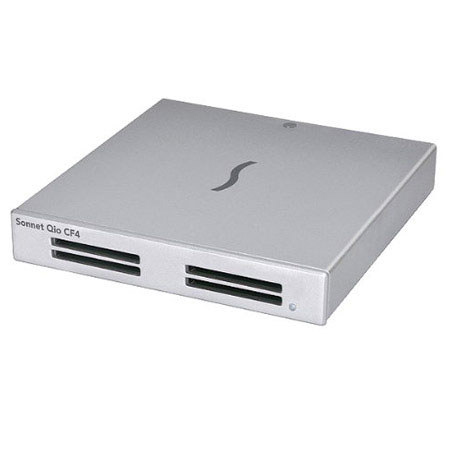

Sonnet Qio CF4 High-Speed CompactFlash Card Reader with Thunderbolt Interface Kit

SKU: SNTQIOCF4TB

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Sonnet CF4 Specifications

  • External Connectors

    Four CompactFlash (CF)
    Two 6Gb/s eSATA
    External PCIe 2.0 x1 18-pin
    Two 12V power

  • Host Connectors

    Thunderbolt

  • Bus Interface

    PCI Express 2.0 x1

  • Supported Media

    Type I CompactFlash

  • External Media Readers Supported

    Two with eSATA interface, such as RED STATION REDMAG 1.8" or 2.5"

  • Firmware

    Flash-ROM upgradeable to latest firmware version

  • Hot Plug Qio CF4

    Supported in MacBook Pro and any computer through Sonnet Echo Thunderbolt Expansion products

  • Power

    12V at 3A input
    12V at 0.5A output to support Sonnet Fusion F2QR

  • Absolute Maximum Input Voltage

    20V

  • RoHS Compliant

    Yes

  • Mac Compatibility

    OS X Version 10.6.8-10.8.4
    Mac with a Thunderbolt port

  • Windows Compatibility

    Windows 8, Windows 7, Windows Vista, Windows Server 2008 R2, Windows Server 2008

  • Dimensions (W x D x H)

    5.9 x 6.2 x 1" (14.9 x 15.7 x 2.5 cm)

About Sonnet CF4

The Sonnet Qio CF4 High-Speed CompactFlash Card Reader is configured with four CompactFlash memory card slots and a fast PCIe 2.0 interface. It can read data from four cards simultaneously at maximum aggregate speeds of 400MB/s. The card reader also has two 6Gb/s eSATA ports. It comes with a Thunderbolt interface adapter and cable for connection and 5Gb/s data transfer to a computer. The supplied external PCIe x4 to X1 interface cable connects the CF4 card reader to the adapter and the Thunderbolt cable connects the adapter to your computer.

Included is a universal AC power supply with wall plugs for use in the US, Japan, Europe, UK and Australia. Alternatively, an optional XLR 4-pin adapter cable can route battery power to the Qio CF4. The card reader also supports the connection of an optional Sonnet Fusion F2QR 2-drive SATA hardware RAID storage system. The Qio CF4 is constructed from aluminum and has a slot for Kensington and similar anti-theft locks. It is compatible with both Mac and Windows computers and includes flash-ROM that is upgradeable to the latest firmware version. The card reader is hot-pluggable when used with a MacBook Pro, or when used with any computer in conjunction with optional Sonnet Echo Thunderbolt Expansion products.

Sonnet CF4 Features

  • Four Slots-Enables you to insert and ingest files from four cards at the same time
  • Fast Interface-Delivers superior performance using PCI Express 2.0 bus interface; available aggregate bandwidth of up to 400 MB/sec.
  • Choice of Interface-Qio CF4 package includes your choice of interface; PCI Express 2.0 card for desktops, ExpressCard/34 for notebooks, or Thunderbolt for any Mac with a Thunderbolt port
  • Fast Aggregate Ingest Speed (four cards concurrently)-PCIe or Thunderbolt interface: 400MB/s; ExpressCard/34: 200MB/s
  • Mac and Windows Compatible-Qio CF4 supports your workflow, regardless the platform you've chosen
  • Built-in SATA Connections-Connect media readers with an eSATA interface
  • Small and Rugged-Strong aluminum case measures just 5.9" x 6.2" x 1"
  • Security-Slot for Kensington and similar security locks to secure the device and deter theft

Key Features

  • Four Slots-Enables you to insert & ingest files from four cards at same time
  • Choice of Interface-Qio CF4 package
  • Fast Aggregate Ingest Speed
  • Built-in SATA Connections-Connect media readers with an eSATA interface
  • Small and Rugged-Strong aluminum case measures just 5.9 x 6.2 x 1
  • Security-Slot

What's in the box:

  • Sonnet Qio CF4 High-Speed CompactFlash Card Reader
  • Universal 12V Power Supply with 10-foot Cable
  • 1-meter External PCIe x1 Interface Cable
  • Carrying Case
  • User's Guide
  • Thunderbolt Interface Adapter
  • 0.5-meter Thunderbolt Cable
  • Sonnet 2 Years Warranty
