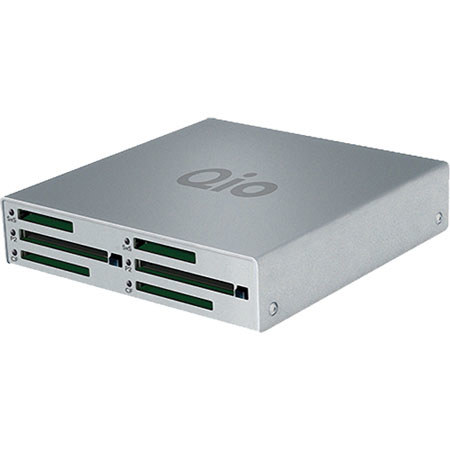

Sonnet QIO-PCIE Professional Universal Media Reader/Writer with PCIe Bus Extender Adapter, Built-in SATA Connections

SKU: SNTQIOPCIE

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Sonnet QIOPCIE Universal Media Reader/Writer Adaptr Specifications

  • Qio Read Performance

    P2 Card: 25MB/sec
    CF Card: 85MB/sec
    2X CF Card: 170MB/sec
    SxS Card: 90MB/sec
    2X SxS Card: 180MB/sec

  • External Connectors (Qio Enclosure)

    2 x CompactFlash,
    2 x CardBus (P2),
    2 x ExpressCard/34 (SxS),
    4 x eSATA,
    external PCIe x1 - 18,
    3 power

  • External Connectors (Adapter Card)

    external PCIe x1 - 18

  • Data Transfer Speed

    Up to 250MB/s aggregate

  • Bus Interface

    PCI Express x1

  • Supported Media, CompactFlash Slots

    Type I CompactFlash

  • Supported Media, CardBus Slots

    P2, P2 E-series

  • Supported Media, ExpressCard/34 Slots

    SxS; SxS Pro; SDHC using included adapter

  • Drives Supported

    Up to 20

  • Drives Type Supported

    Serial ATA I & II

  • Firmware

    Flash-ROM upgradeable to latest firmware version

  • Bootability

    Not Supported

  • RoHS Compliant

    Yes

  • Power

    12V@3A input
    2 X 12V@ 0.5A output
    Absolute Maximum input voltage 14V.

  • Dimensions (Qio Enclosure) (W x D x H)

    5.9 x 6.2 x .1.2 in. / 14.9 x 15.7 x 3 cm

About Sonnet QIOPCIE Universal Media Reader/Writer Adaptr

Sonnet's Qio Universal Media Reader reads from and writes to P2, SXS, CompactFlash, SDHC and SATA storage systems with an eSATA interface, at up to 250MB/sec--much faster than FireWire or USB adapters. It has dual P2, SXS and CF slots and an included adapter for SDHC cards, allowing you to offload files or copy files between any cards, attached drives or host computer efficiently and quickly.

Qio also has 4 eSATA connectors, enabling you to connect 2 Sonnet Fusion F2 portable 2-drive RAID SATA storage systems (not included) and copy files between them with ease--you can also connect 4 drive enclosures such as Sonnet's Fusion D400QR5 (not included) and Fusion D500P (not included) with access to as many as 20 drives, thanks to Qio's support of port multipliers and integrated hardware RAID controllers.

Since the SXS slots double as ExpressCard/34 slots and the P2 slots are compatible with CardBus cards, Qio essentially sextuples the number of expansion card slots available to you if you use a notebook computer. If you use a desktop computer, Qio lets you swap adapter cards without opening the case-you can utilize WiwFi, FireWire, USB, Gigabit Ethernet and other adapters as well, because Qio's included interface card extends the PCIe bus outside your computer, basically adding expansion slots to your computer.

Sonnet QIOPCIE Universal Media Reader/Writer Adaptr Features

  • Replaces Multiple Card Readers: Comprehensive memory card compatibility with support for Sony SxS, Panasonic P2, CompactFlash and SDHC cards (with included adapter)
  • Built-In SATA Connections: Integrated, fast SATA host controller based on Tempo SATA E4P with four eSATA ports supports and powers two Fusion F2 SATA storage systems, or supports SATA drive enclosures with up to 20 drives total
  • Fast: Uses PCI Express bus interface to deliver superior performance; aggregate bandwidth of 250MB/sec.
  • Small and Rugged: Strong aluminum case measures just 5.9"x 6.2"x 1.22"
  • ExpressCard/34 interface card
  • Security - Kensington slot
  • Ships with Sonnet PCIe Bus Extender PCIe

Key Features

  • Replaces Multiple Card Readers
  • Built-In SATA Connections
  • PCI Express bus interface for superior performance
  • Small and Rugged

What's in the box:

  • Sonnet QIO-PCIE Professional Universal Media Reader/Writer
  • Sonnet PCIe Bus Extender PCIe Adapter
  • SDHC Adapter
  • Universal 12V Power Supply with 10-Foot Cable
  • 1-Meter External PCIe x1 Interface Cable
  • 1-Meter XLR 4-pin Power Adapter Cable
  • Carrying Case
  • Software CD
  • User's Guide
  • Sonnet 2 Years Warranty
