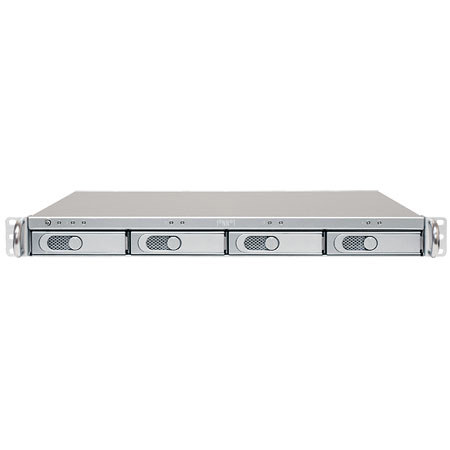

Sonnet 0TB R400P Rackmount 4-Drive SATA Storage System Hard Drive Array with Port Multiplier

Special Order Item - This is a special order item that is Non Cancelable and Non Returnable. We Charge you when you place your order. Approximate arrival at Adorama 1-2 Weeks from date of order.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500

Our Price

$599.00 $24 per week
Free Shipping
Add to Wishlist

About this item

The 0TB Fusion R400P Rackmount Storage System Hard Drive Array from Sonnet is a rackmount storage system, compatible with Mac, Windows and Linux computer systems. The Fusion R400P can connect to a computer that features an eSATA host card that support multiplication. It will appear as a JBOD array, but can be configured as a RAID via any number of third-party software applications.

The array is built with quality in mind, as it features high-performance Fusion drive modules. It occupies 1U of rack space and features front-panel LED indicators to indicate drive status. The Fusion is certified for use with video capture cards from AJA, Blackmagic Design, Matrox and Bluefish444. It is compatible with popular NLE software applications, including Apple Final Cut Pro and Adobe Premiere Pro CS4.

What's Included With This Item

  • Sonnet 0TB Fusion R400P Rackmount 4-Drive SATA Storage System Hard Drive Array
  • Rackmount Disk Enclosure
  • Four 3.5" Drive Modules or Drive Trays (with Drive Mounting Hardware)
  • One Locking eSATA Data Cable
  • Power Cord
  • User's Guide
  • Sonnet 5 Years Warranty

Key Features

  • eSATA interface through an integrated port multiplier
  • Up to 220 MB/sec transfer rates
  • Universal 180W, 110-240V, 50-60Hz power supply
  • Drive Activity, drive presence and power LED indicators
  • Quiet fans
  • Secure drive trays
  • Sonnet locking eSATA cable included
  • Compatible with Sonnet Tempo SATA E4P, Tempo SATA X4P, Tempo SATA ExpressCard/34 and Tempo SATA Pro
  • ExpressCard/34 host controller cards
  • RoHS compliant

Technical Specs

Capacity 0TB
External Connectors One locking eSATA
Drives Supported 3 & 1.5GB per second Serial ATA;
up to 7,200 RPM
Data Transfer Speed Up to 220MB/s, depending on interface used and configuration
Supported Drive Configurations JBOD; software-based RAID 0, 1 and 10
Supported Video Formats Uncompressed 10-bit NTSC HD, DV, HDV, DVCPRO and uncompressed SD
Operating Temperature +32° F to +95° F (0° C to +35° C)
Noise 41 dBA
(Ambient Office 40-50 dBA)
Dimensions (W x D x H) 17.0 x 16.5 x 1.75 in / 43.8 x 41.9 x 4.4 cm
Weight (with drives) 21.1 lbs (9.6 kg) with drives
14.8 lbs (6.7 kg) without
